Description

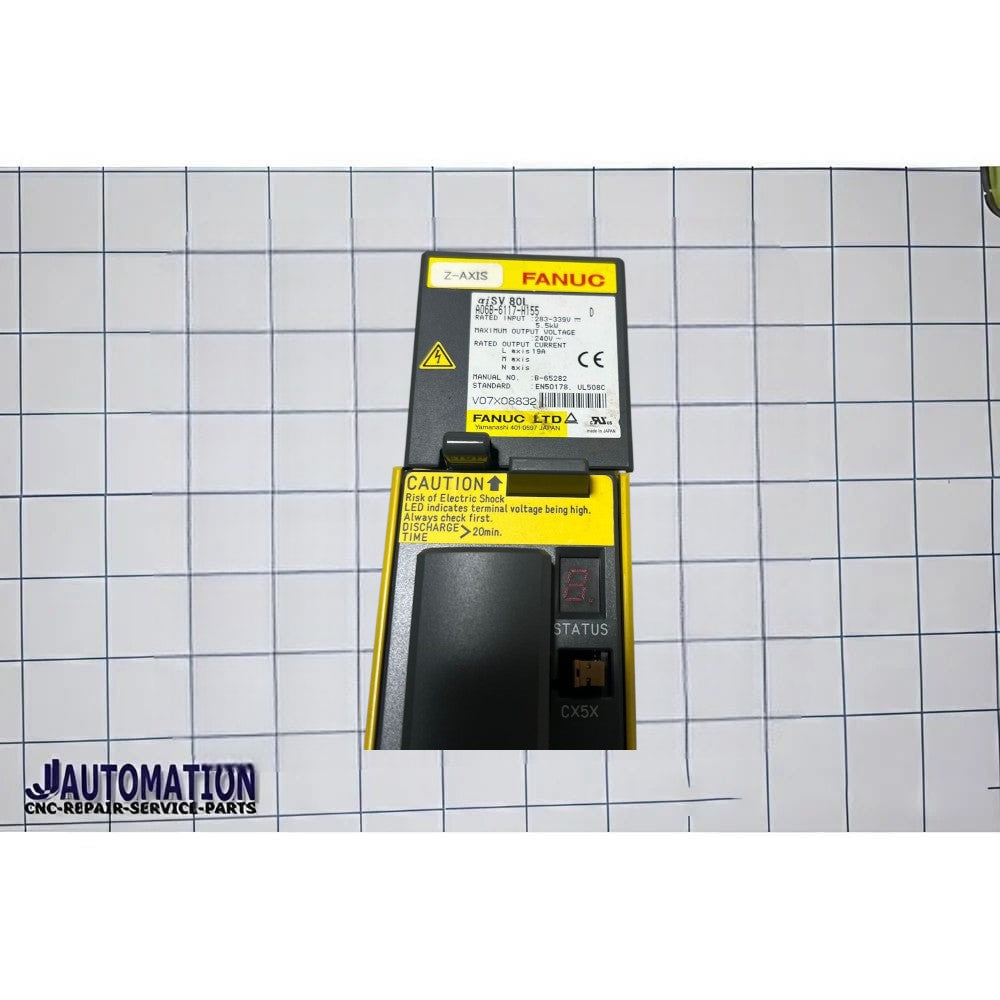

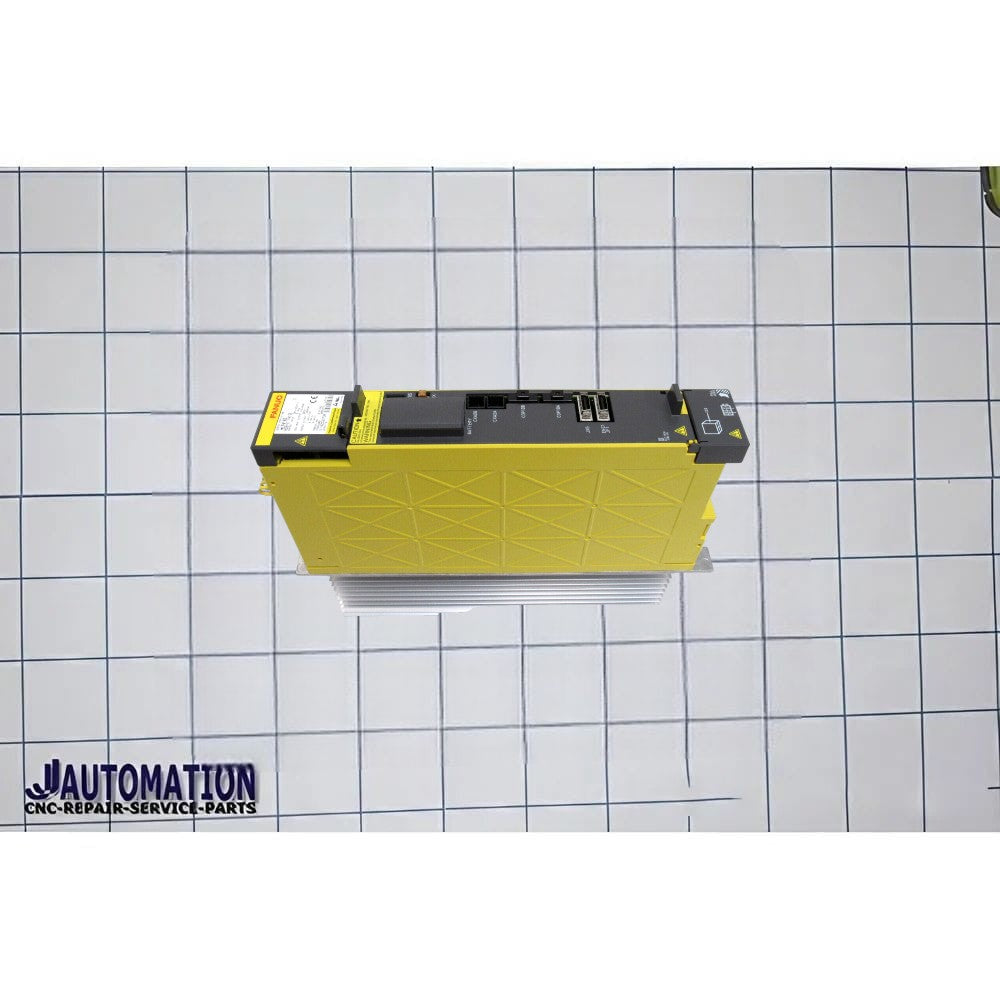

A06B-6117-H155 is a single-axis servo amplifier module from the αi (Alpha-i) servo amplifier series manufactured by FANUC.
Basic Description
-
Manufacturer: FANUC
-
Part Number: A06B-6117-H155
-
Model: αiSV-80L
-
Type: Single-axis servo amplifier
-
Input class: 200 V servo system
-
Communication: FSSB (fiber-optic servo bus) with FANUC CNC controllers
Main Function
This amplifier is used in CNC machines to drive and control one servo motor axis. It performs:
-
Current control for the servo motor
-
Speed control
-
Position control
-
Processing encoder feedback
-
Communication with the CNC controller through the FANUC servo network
Key Technical Details
-
Model name: αiSV-80L
-
Rated output current: about 80 A
-
Control method: Digital sine-wave PWM using IGBT inverter
-
Input voltage: typically 200-V class
-
Cooling: fan-cooled industrial module
Compatible CNC Controls
This amplifier is commonly used with FANUC CNC systems such as:
-
0i series
-
16i / 18i / 21i
-
30i / 31i / 32i
Typical Applications
You will find A06B-6117-H155 in:
-
CNC machining centers
-
CNC lathes
-
Industrial robotics
-
Automated manufacturing systems
✅ Simple explanation:
A06B-6117-H155 = FANUC αiSV-80L servo amplifier used to control one CNC servo motor axis with high precision.
