Description

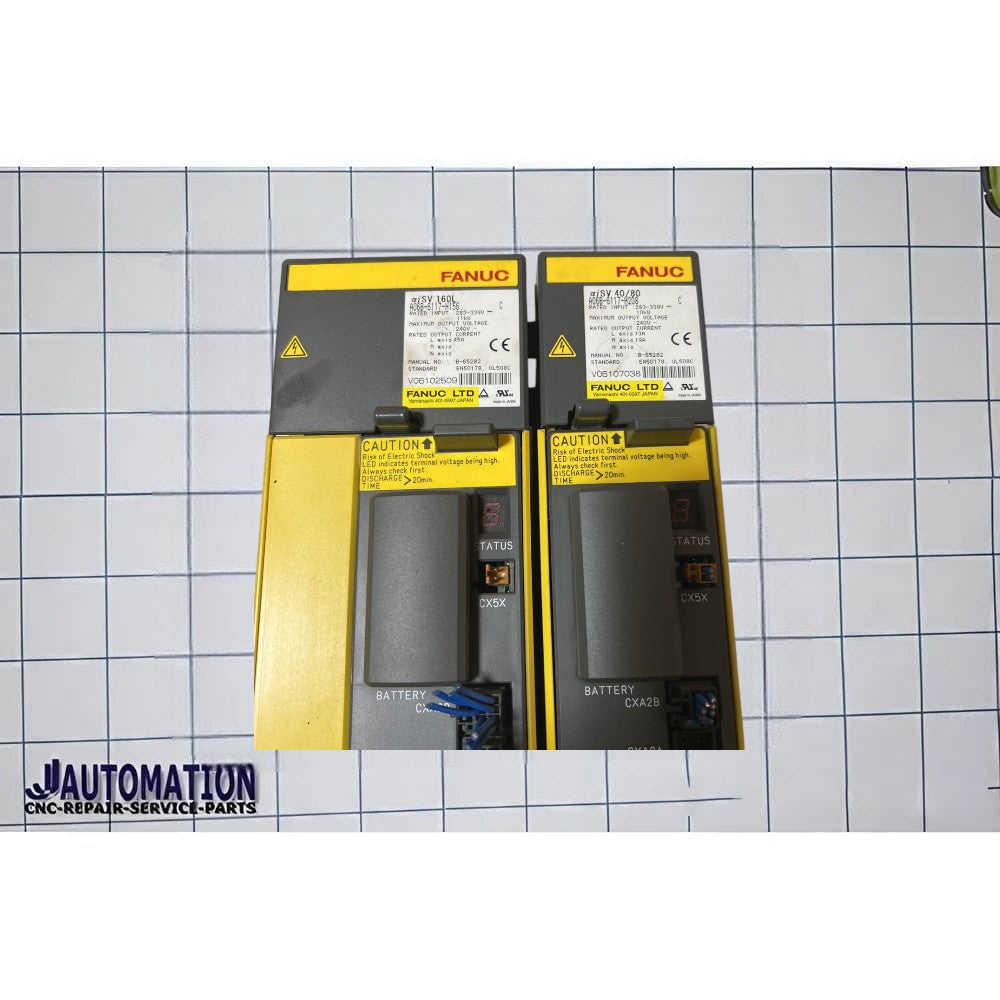

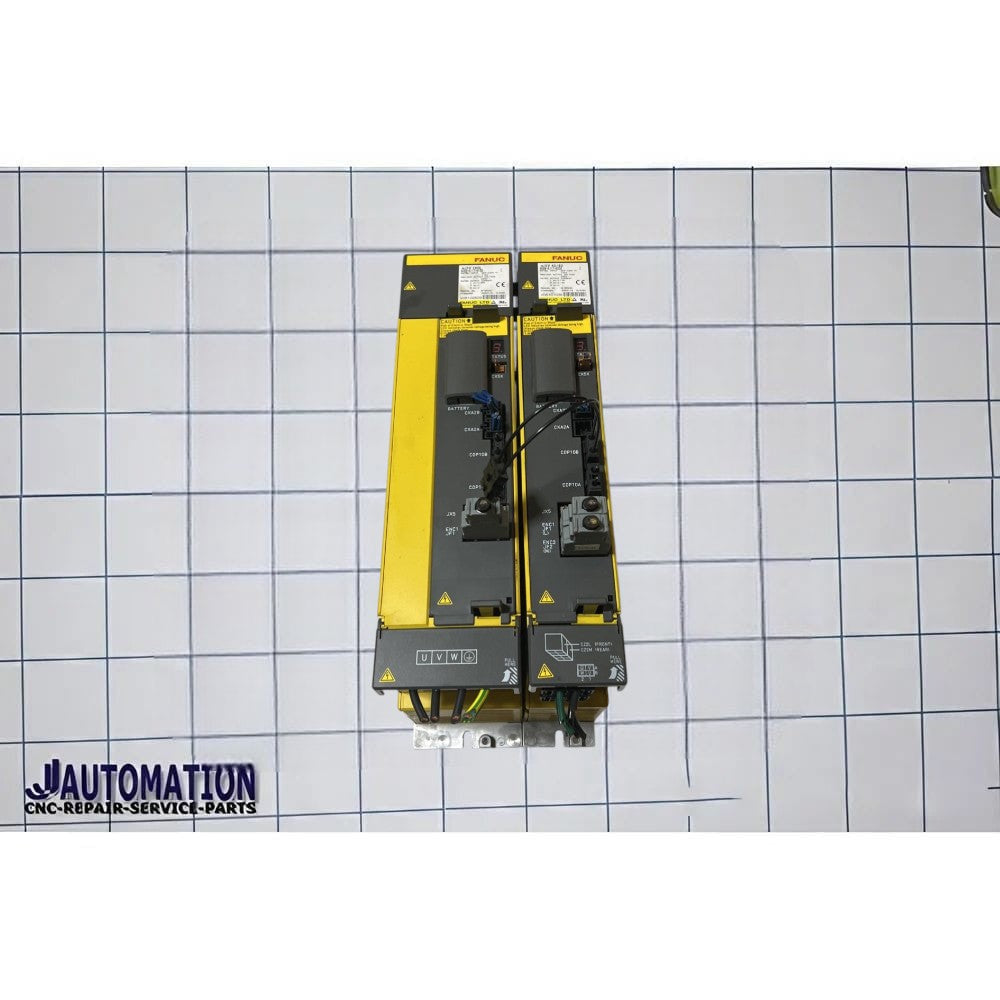

A06B-6117-H156 is a high-power servo amplifier module from the αi (Alpha-i) servo amplifier series manufactured by FANUC.
Basic Description
-
Manufacturer: FANUC
-
Part Number: A06B-6117-H156
-
Series: αi Servo Amplifier
-
Model: αiSV-160L
-
Type: Single-axis servo amplifier module
Main Function
This servo amplifier is used in CNC machines to control one servo motor axis. It performs:
-
Motor current control
-
Speed control
-
Position control
-
Processing encoder feedback signals
-
Communication with the CNC controller via FSSB fiber-optic bus
Key Technical Specifications
-
Model: αiSV-160L
-
Axis: 1-axis servo amplifier
-
Input voltage: typically 200-V class or 400-V class systems
-
Rated output current: up to about 160 A
-
Control method: Digital sine-wave PWM using IGBT inverter
Typical Applications
This amplifier is used in:
-
CNC machining centers
-
CNC turning centers (lathes)
-
Industrial robotics
-
Automated production lines
Compatible CNC Controllers
Commonly used with FANUC CNC systems such as:
-
0i series
-
16i / 18i / 21i
-
30i / 31i / 32i
✅ Simple explanation:
A06B-6117-H156 = FANUC αiSV-160L high-power single-axis servo amplifier used to drive large CNC servo motors.
