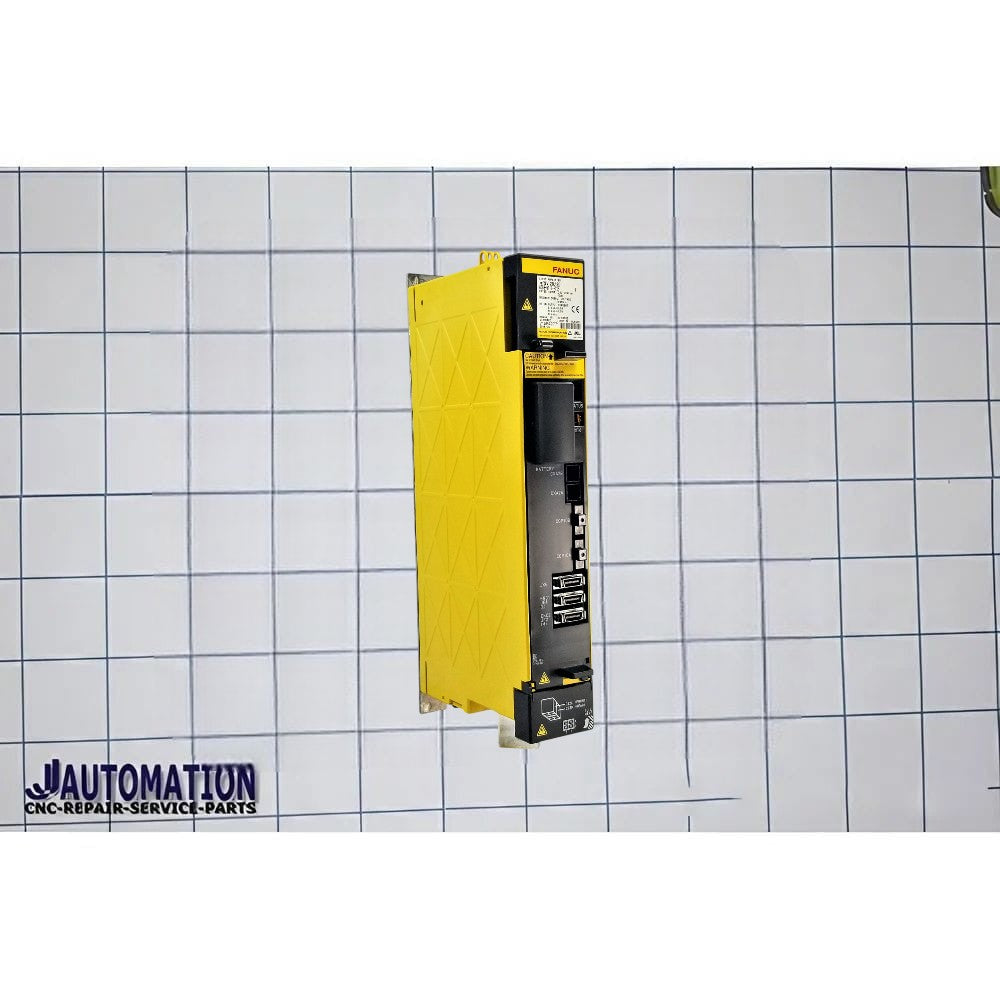

🔧 Description: FANUC A06B‑6117‑H205
FANUC A06B‑6117‑H205 is a dual‑axis AC servo amplifier (servo drive) module from the Alpha i (αi) series used in industrial CNC and automation systems. It is often referred to as the AiSV‑20/20i servo amplifier because it provides two equal‑capacity output channels for controlling two servo motors.
⚙️ Technical Overview
👉 Part Type: AC servo amplifier / drive module
👉 Series: FANUC Alpha i (αi)
👉 Model: AiSV‑20/20i (2‑axis amplifier)
👉 Axes: Dual‑axis control – drives two servo motor axes simultaneously.
This module receives motion commands from a FANUC CNC controller and supplies controlled power (current and voltage) to servo motors, enabling precise motion control essential for CNC machines (like milling, turning, machining centers) and automation applications.
đź“Š Key Specifications (Typical)
- Rated Input Voltage: ~283–339 V AC (3‑phase)
- Configuration: 2‑axis (L & M channels)
- Model Class: 20/20i – balanced power on both channels
- Typical Output Power: ~5 kW total system (approximate)
- Rated Output Current (each axis): ~6.5 A
- Cooling: Forced air cooling (fan‑cooled)
- Encoder Supported: Incremental feedback (INC)
- Mounting: Flange mount
đź’ˇ Key Features
- ✔ Dual‑axis amplifier — controls two servo motors with a single module.
- ✔ High precision motion control — essential for CNC axes movement.
- ✔ Designed for stable, reliable industrial use with built‑in protections and monitoring.
- ✔ Widely used with FANUC controllers like 30i, 31i and other i‑series.
- âś” Often supplied on a core exchange or repair basis due to industrial service practices.
🧠Simple Explanation
👉 FANUC A06B‑6117‑H205 is basically the “power and control unit” in a CNC system that takes commands from the CNC controller and precisely drives two servo motors — handling acceleration, deceleration, positioning, speed and torque control for two axes.
