Description
Here’s the detailed description for the FANUC A06B‑6117‑H209 Servo Amplifier:
🔧 Model Overview

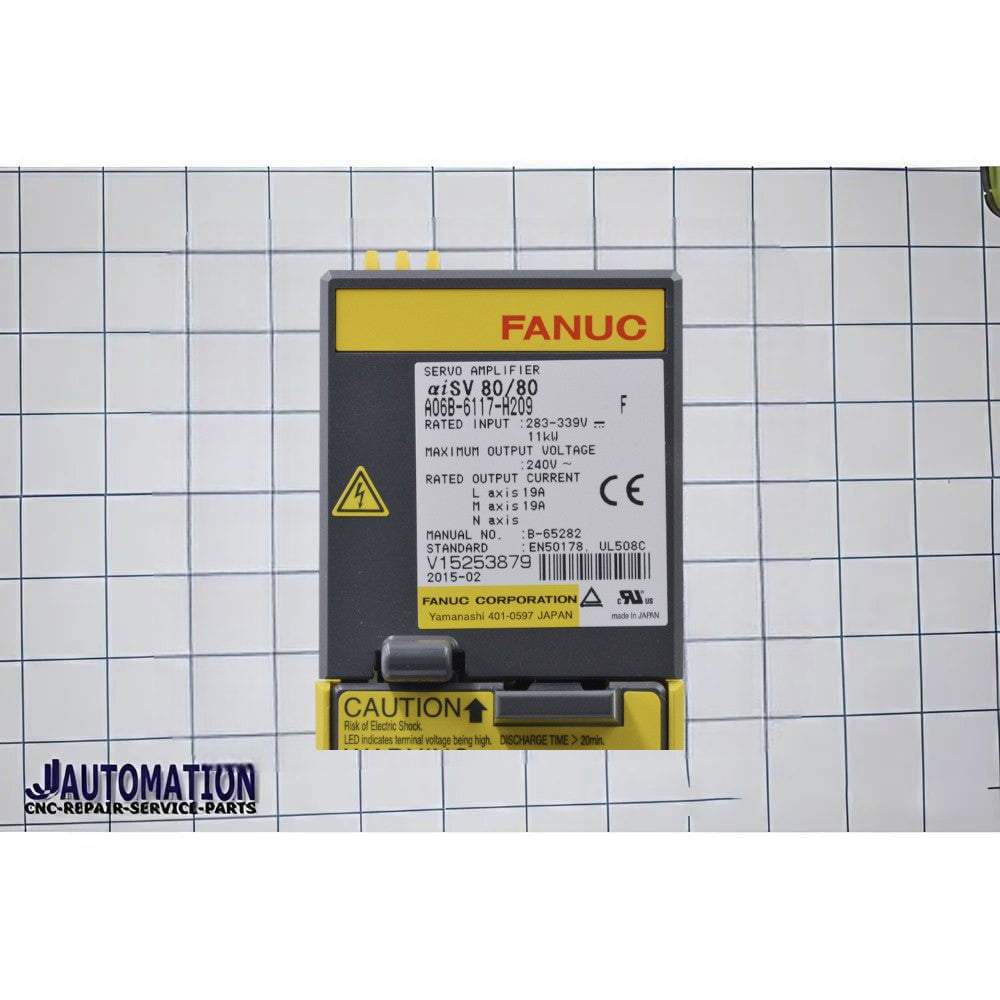

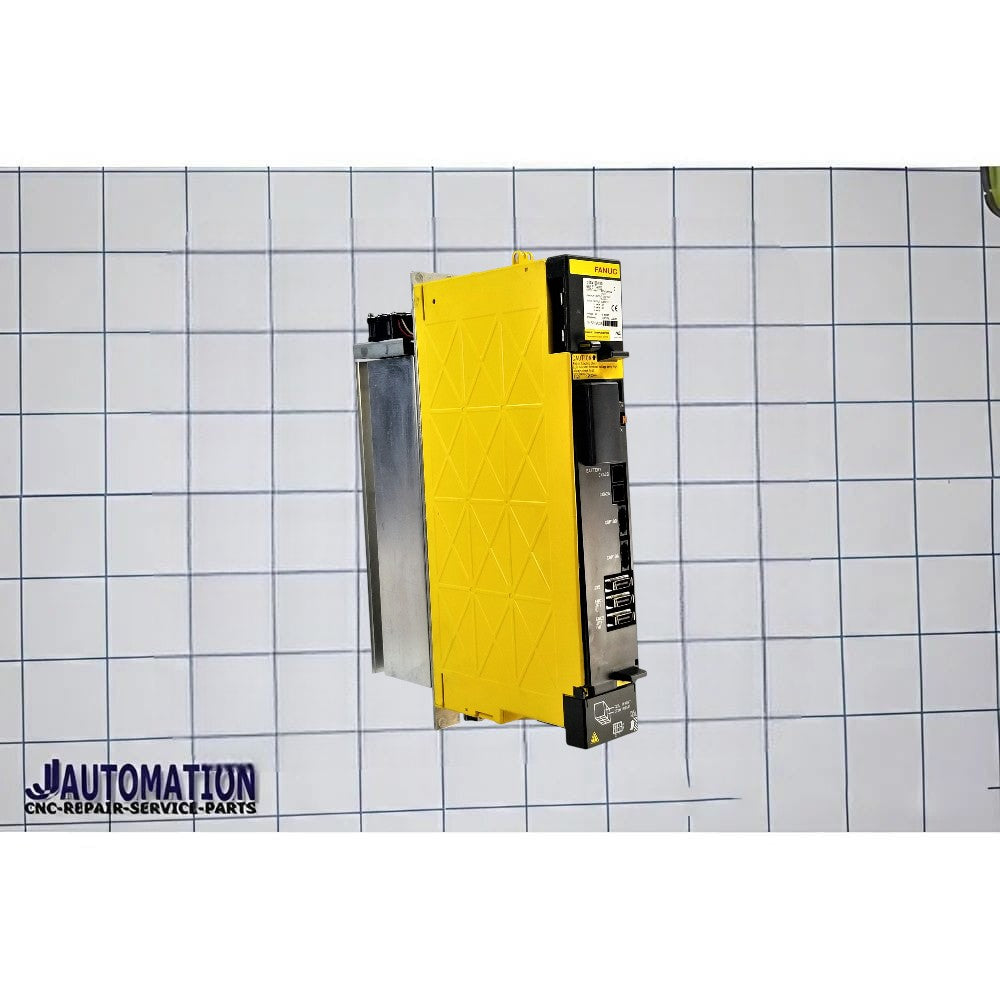

A06B‑6117‑H209 is a 2‑axis AC servo amplifier module from FANUC’s Alpha i (αi) servo drive series — specifically the AiSV‑80/80i model. It is designed for demanding CNC and industrial motion control applications.
⚙️ Full Technical Description
👉 A06B‑6117‑H209 = Dual‑Axis Alpha i Servo Amplifier (Model AiSV‑80/80)
- Series: Alpha i (αi) 2‑axis servo system
- Type: AC servo amplifier / drive module
- Axes: Dual‑axis (two servo outputs)
- Model Class: 80/80 — both channels have equal high capacity for heavy‑load axes.
This amplifier receives motion commands from a FANUC CNC controller and supplies controlled electrical power to two servo motors. It enables precise control of position, speed, and torque for coordinated motion in CNC machines and automation systems.
🔩 Key Specifications (Typical)
- Rated Input Voltage: 283–339 V AC (3‑phase)
- Output Voltage: ~200–240 VAC
- Power Rating: ~11 kW total system
-
Rated Output Current:
- L‑axis: ~19 A
- M‑axis: ~19 A
- Cooling: Forced‑air (fan‑cooled)
- Communication: Uses FANUC’s proprietary servo bus (FSSB) between CNC and amplifier.
🏭 Typical Applications
- CNC machining centers and milling machines
- CNC lathes and turning centers
- Automated production systems requiring two coordinated motion axes
- Robotics and heavy industrial motion control applications
🔍 Key Features
- 📌 Dual‑axis high‑power drive — two equal power channels for demanding loads.
- 🛠️ Designed for Alpha i servo motors — seamless integration with FANUC servo systems.
- ⚡ High‑precision motion control — manages speed, position, and torque.
- 🔁 Core exchange and repair options — often supplied on exchange or refurbished basis.
🧠 Simple Explanation
👉 A06B‑6117‑H209 is essentially a powerful dual‑axis servo amplifier that takes commands from a FANUC CNC controller and precisely drives two servo motors at high power, making it ideal for coordinated motion in CNC machines and industrial systems.
