Description
🔧 Model Overview

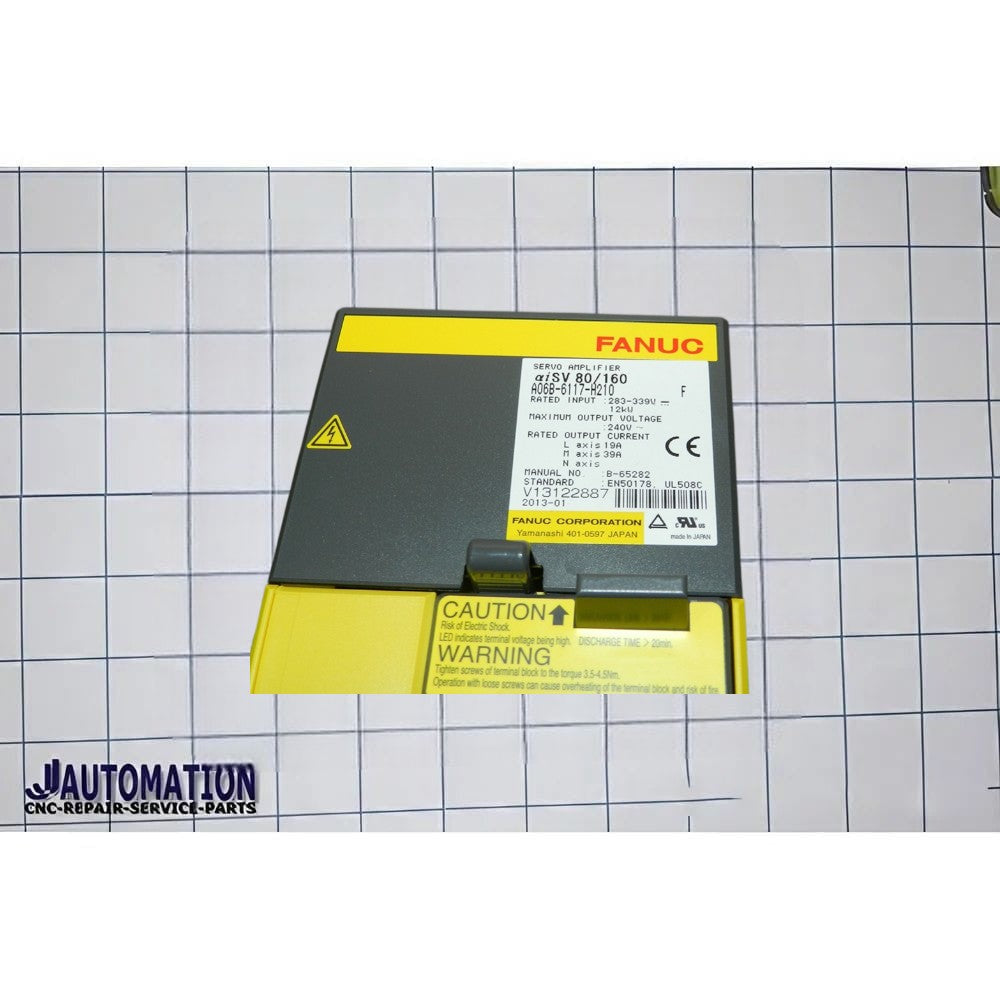

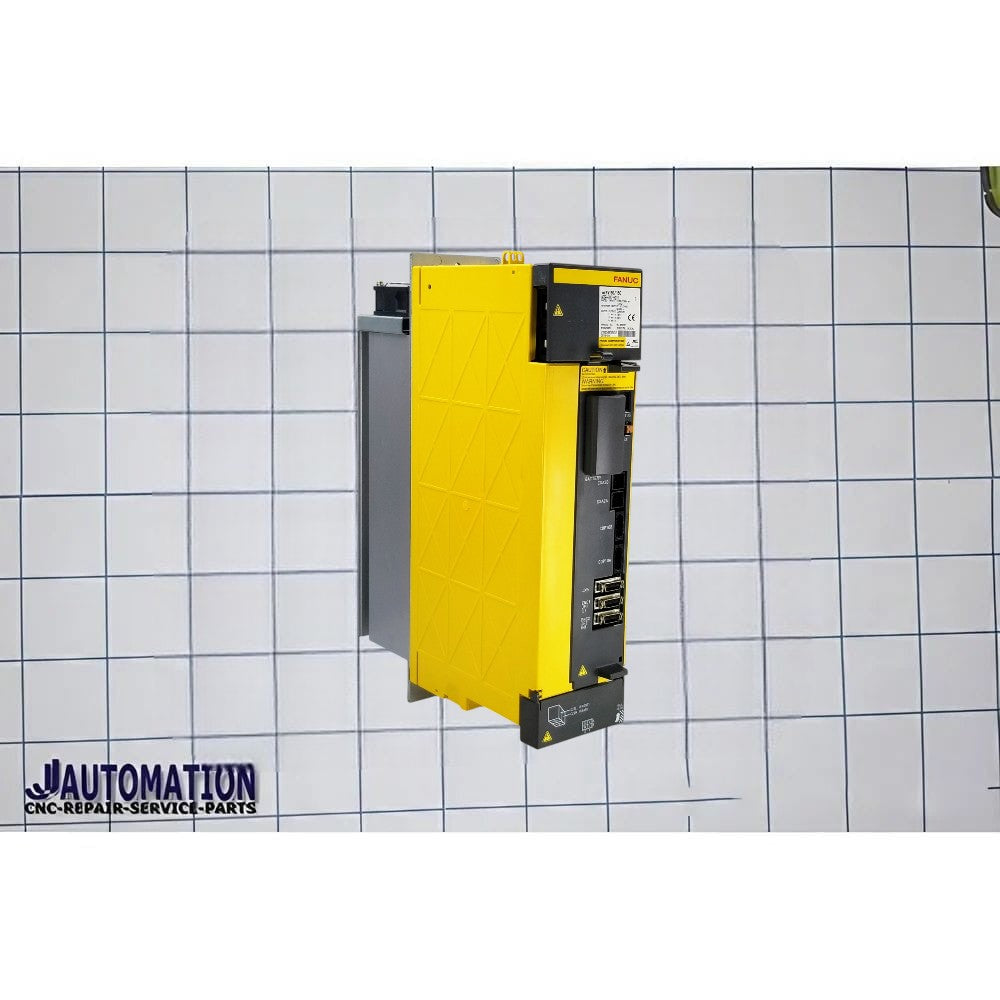

A06B‑6117‑H210 is a 2‑axis high‑power servo amplifier module from FANUC’s Alpha i (αi) servo drive series. It functions as a dual‑axis servo drive unit designed for precise motion control in CNC and industrial automation systems.
⚙️ Technical Description
👉 A06B‑6117‑H210 = 2 AXIS ALPHA i SERVO MODULE (Model AiSV‑80/160i)
- Series: FANUC Alpha i (αi) Servo Amplifier
- Model Class: 80/160i — one channel rated for 80 class, the other for 160 class servo motor loads
- Type: AC Servo Amplifier / Drive Module
- Axes: 2‑axis (dual channel)
This module receives motion commands from a FANUC CNC controller and supplies controlled power to two servo motors, managing position, speed, and torque for coordinated motion control.
🔩 Key Specifications
- Rated Input Voltage: ~283–339 V AC (3‑phase)
- Power Rating: ~12 kW
- Max Output Voltage: ~240 V
-
Rated Output Currents:
- L‑axis: ~19 A
- M‑axis: ~39 A
- Cooling: Forced‑air (fan cooled typical)
- Compatible Encoder: Incremental (INC) feedback supported
These specs make it suitable for medium to heavy load servo applications where one axis may require significantly more power than the other.
🏠Typical Applications
- CNC machining centers (milling, turning)
- Large multi‑axis CNC tooling
- Robotics and automated manufacturing
- Systems where one axis has a heavier load than the other
đź“Ś Key Features
- Dual‑axis high power drive — both channels handle substantial loads, with the M‑axis capable of higher power than the L‑axis.
- High precision motion control for coordinated axes.
- Tested under maximum rated load for quality and reliability.
- Core exchange and repair options available in many supply channels.
🧠Simple Explanation
👉 A06B‑6117‑H210 is a powerful dual‑axis servo amplifier that takes motion commands from a FANUC CNC controller and precisely drives two servo motors, one with high power (~80 class) and one with very high power (~160 class), enabling accurate control of heavy and varied axis loads.
