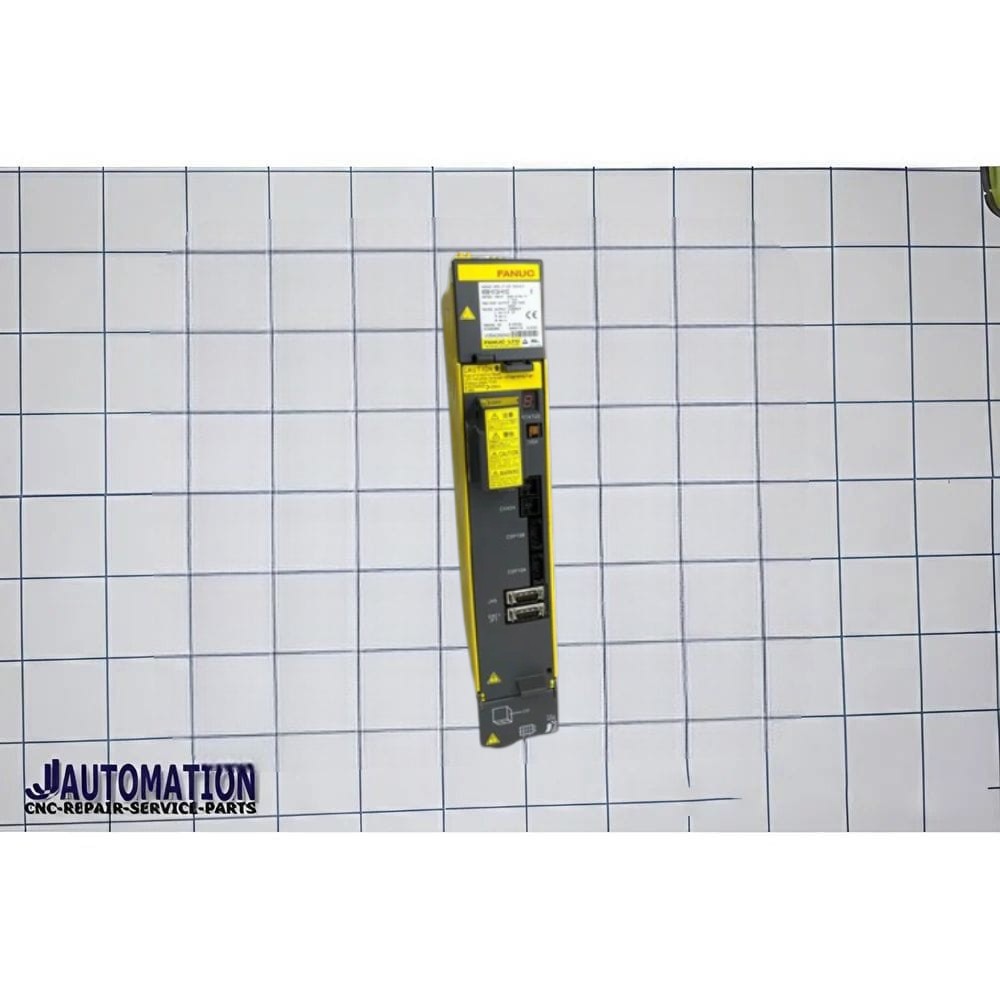

๐ฆ FANUC A06B-6124-C102 โ Description
Part Number: A06B-6124-C102
Description: FANUC Alpha i Servo Amplifier Module (SVM1 series) โ a single-axis high-voltage servo drive used in CNC and industrial automation systems.
๐ง What It Is
The A06B-6124-C102 belongs to FANUCโs A06B-6124 series, which consists of Alpha i servo amplifier modules (SVM1 type). These are compact drive units designed to control one servo motor axis with high precision.
๐ Similar models in this series (like H102) are described as:
- ALPHA i SERVO MODULE MDL SVM1-10HVi
So, the C102 variant is part of the same family, with slight differences in configuration, revision, or capacity.
โ๏ธ Function & Working
- Receives motion commands from a FANUC CNC controller
- Converts them into controlled electrical power
- Drives a servo motor for accurate:
- Position
- Speed
- Torque
These modules are essential for precision motion control in automated machinery.
๐ Typical Technical Context (Series-Based)
While exact specs vary slightly by suffix (C102 vs H102), typical characteristics of this series include:
- Type: Servo amplifier (servo drive)
- Series: Alpha i (A06B-6124)
- Axis: Single-axis drive
- Voltage Class: ~400 V industrial systems
- Power Handling: Designed for CNC axis motors
- Communication: FANUC FSSB interface (fiber optic)
๐ญ Applications
Used widely in:
- CNC machining centers (mills, lathes)
- Industrial robots
- Automated production lines
- Precision motion systems
These modules are installed inside the electrical cabinet of machines and work together with FANUC motors and controllers.
๐ Simple Summary
๐ A06B-6124-C102 = FANUC Alpha i single-axis servo amplifier module (SVM1 series)
๐ Controls a servo motor with high precision in CNC/automation systems
๐ Part of the A06B-6124 high-voltage servo drive family
