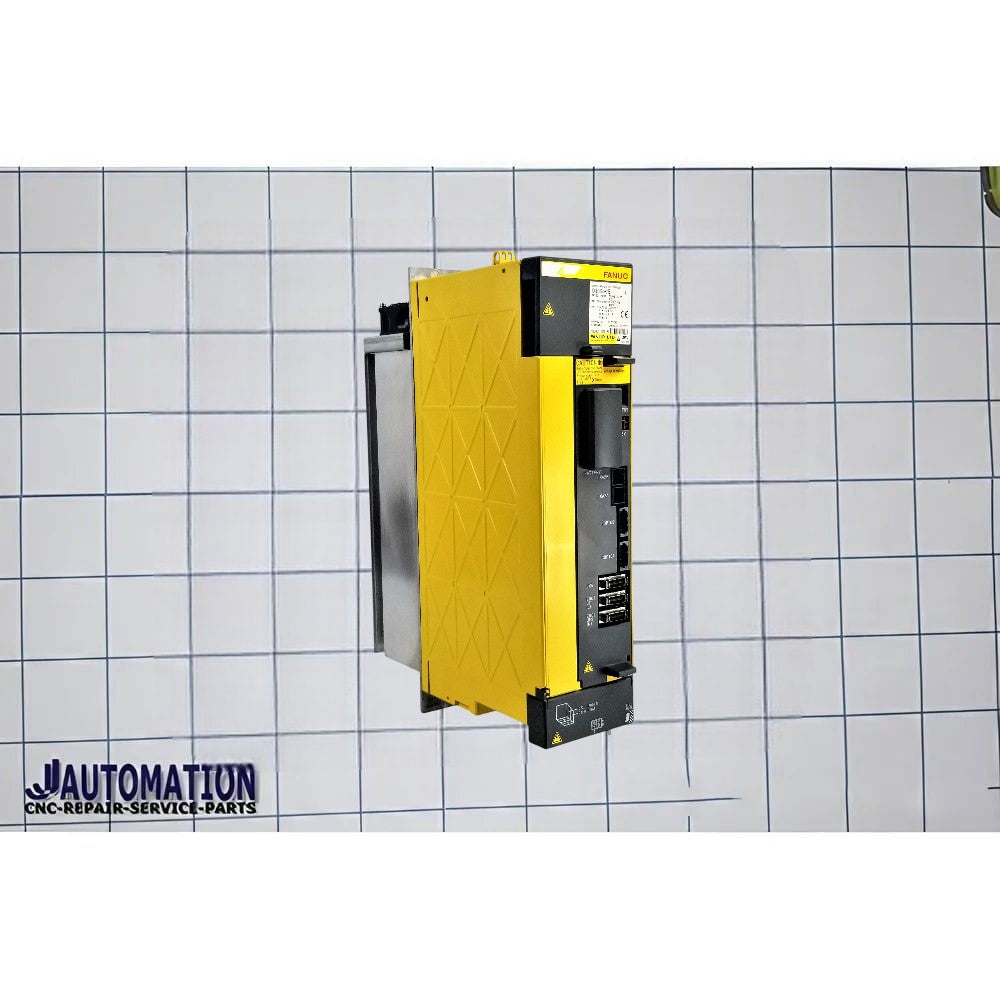

📦 FANUC A06B‑6124‑C105 — Description
Part Number: A06B‑6124‑C105
Description: ALPHA i SERVO MODULE MDL SVM1‑80HV — a single‑axis high‑voltage servo amplifier (servo drive) for industrial CNC and automation systems.
🔧 What It Is
The A06B‑6124‑C105 is part of FANUC’s A06B‑6124 Alpha i (αi) series servo amplifier modules. The “C” suffix denotes a factory variant or configuration of the corresponding “H105” model, but the basic function and specifications are the same:
- Model Class: SVM1‑80HV (80 high‑voltage class)
- Type: Single‑axis servo amplifier / servo drive
- Series: Alpha i (A06B‑6124)
- Purpose: Drives one servo motor in a CNC or automation system based on commands from a CNC controller
- Voltage Class: High‑voltage (~400 V AC industrial supply)
This is effectively the C version of the widely used FANUC servo amplifier module also sold as A06B‑6124‑H105 (SVM1‑80HV).
⚙️ Function & Operation
- Receives motion commands from a FANUC CNC controller
- Converts them into controlled electrical power
- Drives a connected servo motor with precise:
- Position control
- Speed control
- Torque control
Such modules are critical for precise axis motion in machine tools and automated equipment.
🏠Typical Uses
This module is commonly used in:
- CNC machining centers (milling, turning)
- Industrial robots
- Automated production and motion control systems
- Other precision motion applications
It is mounted inside the machine’s servo drive electrical cabinet alongside other drives and controllers.
đź“Ś Simple Summary
👉 A06B‑6124‑C105 = FANUC Alpha i servo amplifier (SVM1‑80HV)
👉 Single‑axis high‑voltage servo drive used for precise motor control
👉 Equivalent to the “H105” version but with a different internal configuration/revision flag
