📦 FANUC A06B‑6124‑C109 — Description

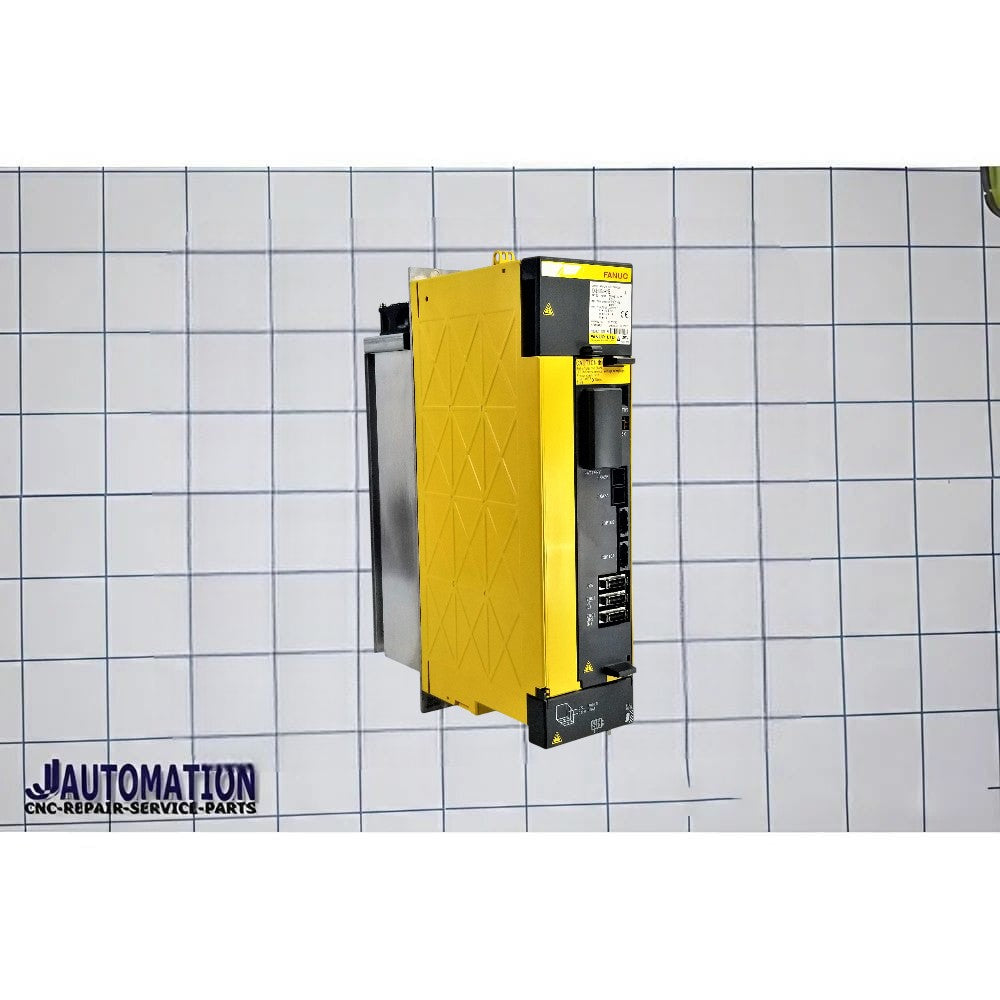

Part Number: A06B‑6124‑C109
Description: ALPHA i SERVO MODULE MDL SVM1‑360HVi — a single‑axis high‑voltage servo amplifier (servo drive) used in CNC machine tools and industrial automation systems.
🔧 What It Is & What It Does
The A06B‑6124‑C109 is part of FANUC’s A06B‑6124 Alpha i (SVM1 series) family of servo amplifier modules. These modules are high‑voltage servo drives that receive motion control commands from a FANUC CNC controller and precisely regulate power to a servo motor for accurate position, speed, and torque control.
- Series: A06B‑6124 (Alpha i)
- Model: SVM1‑360HVi (high‑voltage single‑axis servo drive)
- Function: Converts control signals into motor drive power for precise movement control in industrial automation systems.
📊 Typical Technical Context
Servo drives in the A06B‑6124 family are designed for:
- High‑voltage three‑phase industrial supply (≈400 V AC)
- Use with FANUC servo motors and CNC controllers
- Installation inside machine servo drive cabinets
- Reliable operation in demanding manufacturing environments
🏭 Common Applications
This type of module is commonly used in:
- CNC machining centres (mills, lathes, routers)
- Industrial robotic axes
- Automated production and motion control systems
- Other precision motion‑control applications where accurate servo axis control is needed
📌 Simple Summary
👉 A06B‑6124‑C109 is a FANUC Alpha i servo amplifier (single‑axis, high‑voltage)
👉 Drives a servo motor with precise control for industrial CNC and automation systems
👉 Equivalent in function to the H109 variant in the same series.
