Fanuc ai Servo Amplifier 400VAC-input A06B-6124-H102

🔧 FANUC A06B-6124-H102 – Alpha i Servo Amplifier Module (Single-Axis / Low-Power)

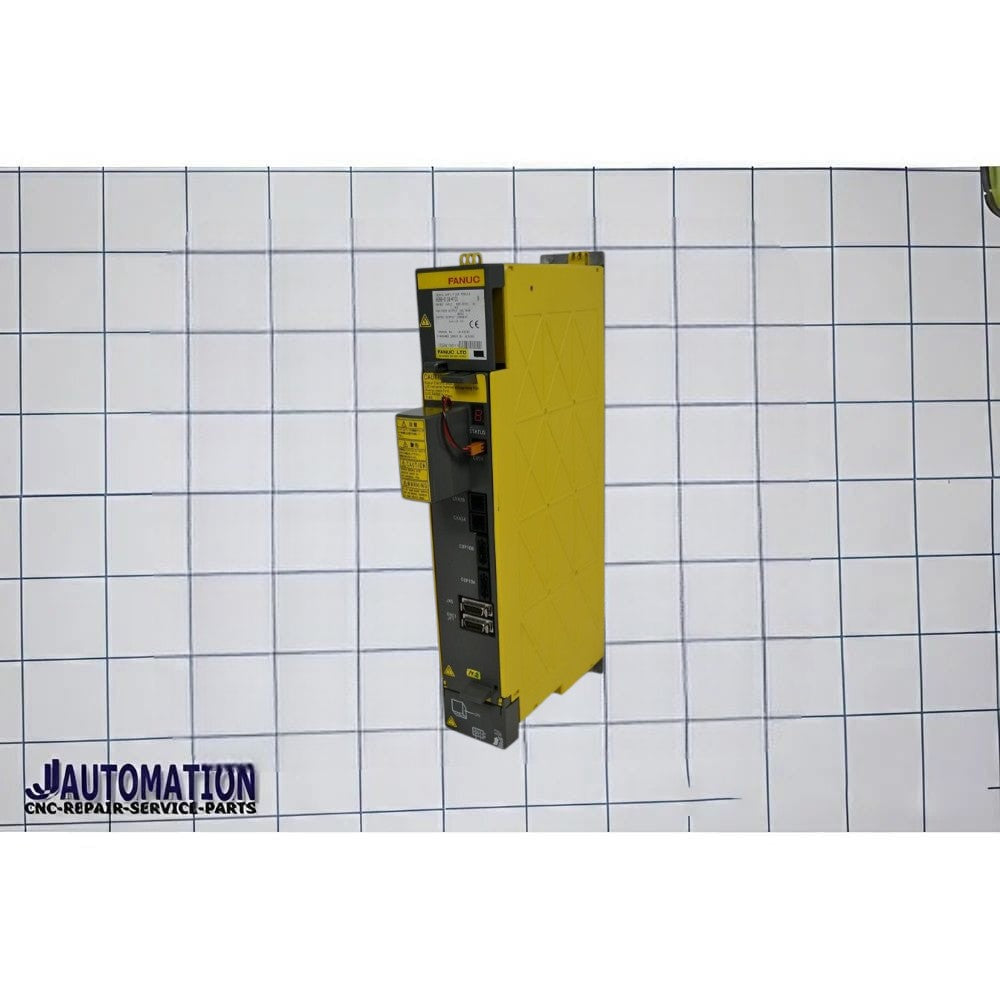

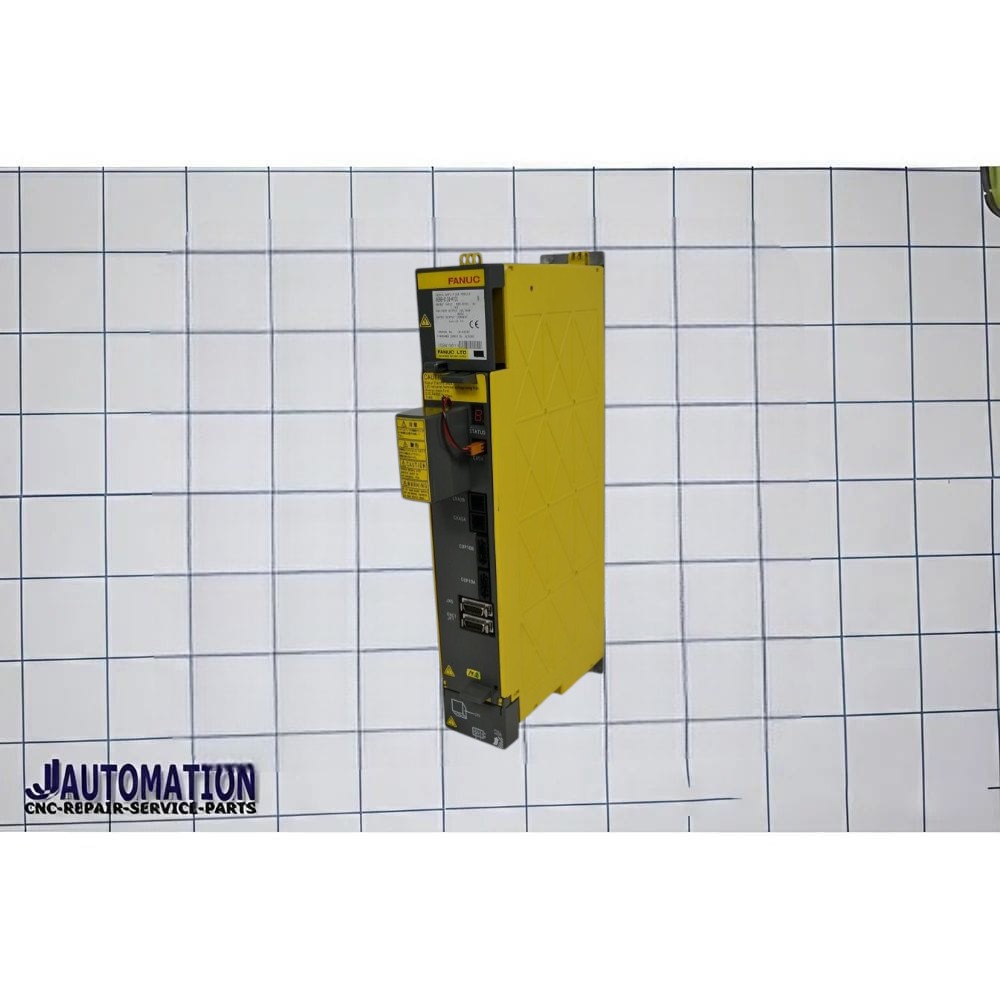

FANUC A06B-6124-H102 Servo Amplifier

---

🧠 Model Description

A06B-6124-H102 is a FANUC Alpha i (αi) single-axis servo amplifier module designed for low-power applications. It is part of the 6124 series, often used for auxiliary axes or small servo motors.

---

⚙️ Key Technical Details

• Type: AC Servo Amplifier
• Series: Alpha i (αi) – 6124 series
• Variant: H-type (standard / larger footprint module)
• Axes: 1-axis
• Current Rating: Low current (~2–4A typical, depending on configuration)
• Communication: FSSB (Fiber optic servo bus) compatible

---

⚙️ What “H102” Means

• H = Standard amplifier (not compact like C-type)
• 1 = Single-axis module
• 02 = Low-power rating within the 6124 series

👉 Simple explanation: H102 = single-axis, low-power standard module

---

⚙️ What It Does

This amplifier:

• Drives one servo motor
• Controls:
  • Position
  • Speed
  • Torque
• Interfaces with CNC via FSSB for command and feedback

Ideal for:

• Small axes (e.g., rotary tables, tool changers)
• Low-load automation tasks

---

🏭 Applications

• Auxiliary axes on CNC machines
• Compact machining or light-duty automation
• Machines requiring precise control for a single low-power servo axis

---

🔍 Key Features

• ✔ Single-axis, low-power module
• ✔ Standard H-type design (larger than compact C-type)
• ✔ Compatible with αi servo motors
• ✔ Works with FANUC CNC systems supporting FSSB

---

🧠 Simple Explanation

👉 A06B-6124-H102 is a low-power, single-axis FANUC servo amplifier designed for small auxiliary axes or light-duty servo motors.
