Fanuc ai Servo Amplifier 400VAC-input A06B-6124-H104

🔧 FANUC A06B-6124-H104 – Alpha i Servo Amplifier Module (Single-Axis / High Power)

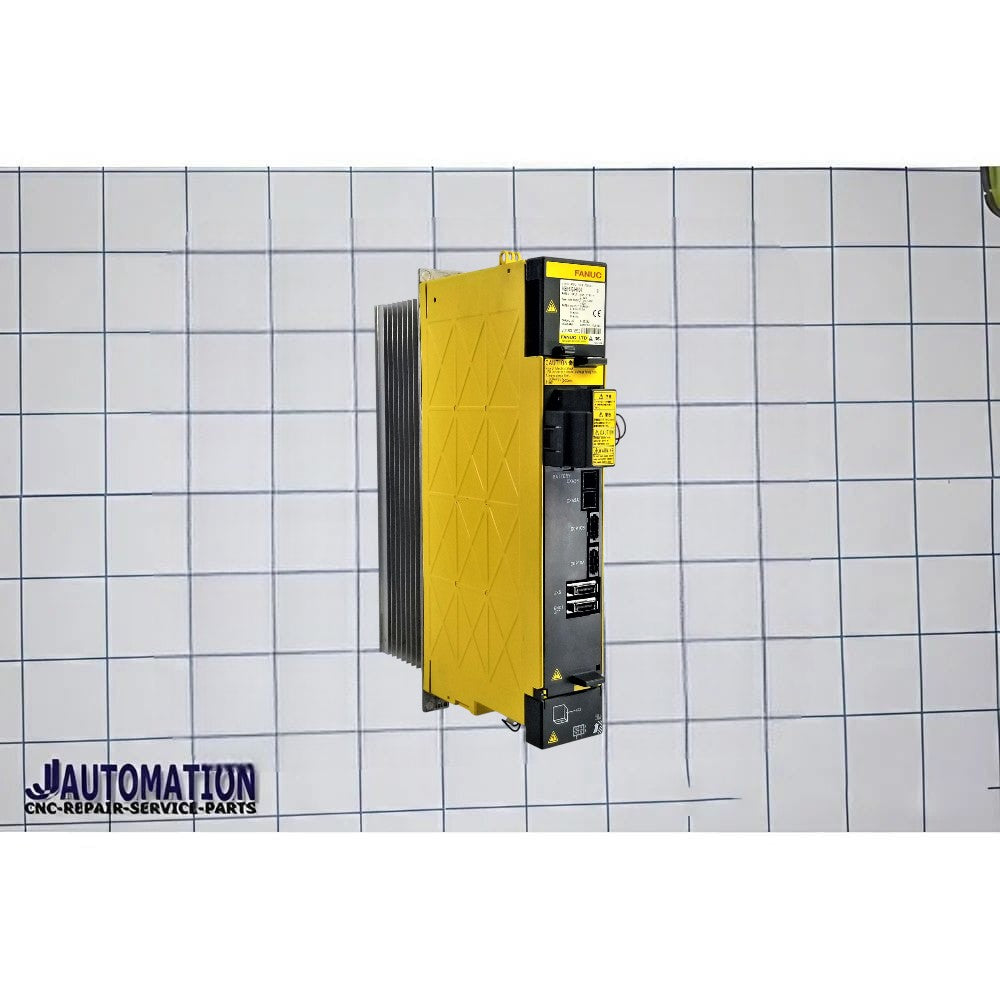

FANUC A06B-6124-H104 Servo Amplifier

---

🧠 Model Description

A06B-6124-H104 is a FANUC Alpha i (αi) single-axis servo amplifier module from the 6124 series, designed for high-power applications. It is used for single-axis servo motors that require significantly higher current and torque than H102 or H103.

---

⚙️ Key Technical Details

• Type: AC Servo Amplifier
• Series: Alpha i (αi) – 6124 series
• Variant: H-type (standard full-size module)
• Axes: 1-axis
• Current Rating: High (~20–30A typical, depending on configuration)
• Communication: FSSB (Fiber optic servo bus) compatible

---

⚙️ What “H104” Means

• H = Standard (full-size) module
• 1 = Single-axis module
• 04 = High-power rating within the 6124 series

👉 Simple explanation: H104 = single-axis, high-power standard module

---

⚙️ What It Does

This amplifier:

• Drives one servo motor
• Controls:
  • Position
  • Speed
  • Torque
• Interfaces with CNC via FSSB for precise motion control
• Ideal for heavy-duty auxiliary axes or single-axis main axes

---

🏭 Applications

• High-torque single-axis CNC axes
• Rotary tables or large feed axes
• Industrial automation systems requiring strong, precise motion for one axis

---

🔍 Key Features

• ✔ Single-axis, high-power module
• ✔ Standard H-type design
• ✔ Compatible with αi servo motors
• ✔ Supports FSSB communication
• ✔ High current capacity for demanding applications

---

🧠 Simple Explanation

👉 A06B-6124-H104 is a high-power, single-axis FANUC servo amplifier designed for demanding single-axis applications that require higher torque and current than H102 (low) or H103 (medium) modules.
