Fanuc ai Servo Amplifier 400VAC-input A06B-6124-H105

🔧 FANUC A06B-6124-H105 – Alpha i Servo Amplifier Module (Single-Axis / Very High Power / Special Application)

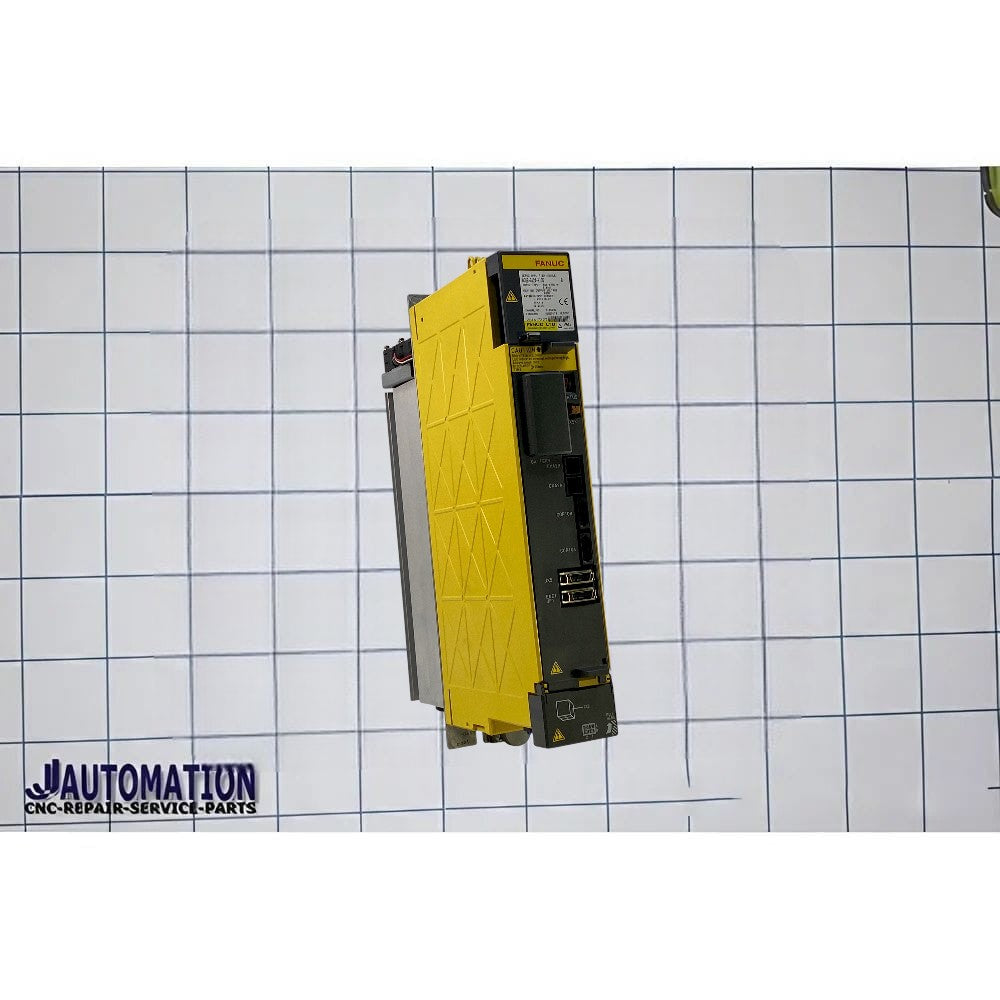

FANUC A06B-6124-H105 Servo Amplifier

---

🧠 Model Description

A06B-6124-H105 is a FANUC Alpha i (αi) single-axis servo amplifier from the 6124 series, designed for very high-power applications or specialized axes. It is the highest power single-axis module in the 6124 series, used for heavy-duty or special servo motors.

---

⚙️ Key Technical Details

• Type: AC Servo Amplifier
• Series: Alpha i (αi) – 6124 series
• Variant: H-type (standard full-size module)
• Axes: 1-axis
• Current Rating: Very High (~30–50A typical, depending on configuration)
• Communication: FSSB (Fiber optic servo bus) compatible

---

⚙️ What “H105” Means

• H = Standard amplifier (full-size)
• 1 = Single-axis module
• 05 = Very high-power rating (top of 6124 series)

👉 Simple explanation: H105 = single-axis, very high-power module

---

⚙️ What It Does

• Drives one high-power servo motor
• Controls:
  • Position
  • Speed
  • Torque
• Interfaces with CNC via FSSB
• Supports heavy-duty axes such as:
  • Large rotary tables
  • Main feed axes
  • High-inertia loads

---

🏭 Applications

• CNC machines with high-torque single axes
• Industrial automation where extreme force or high inertia control is needed
• Situations where H102-H104 would be insufficient

---

🔍 Key Features

• ✔ Single-axis, very high-power module
• ✔ Standard H-type design (full footprint)
• ✔ Compatible with αi servo motors
• ✔ Handles extremely high current
• ✔ Supports FSSB communication

---

🧠 Simple Explanation

👉 A06B-6124-H105 is the top-power single-axis FANUC servo amplifier, designed for extremely heavy-duty or high-inertia applications that require the most current and torque in the 6124 series.
