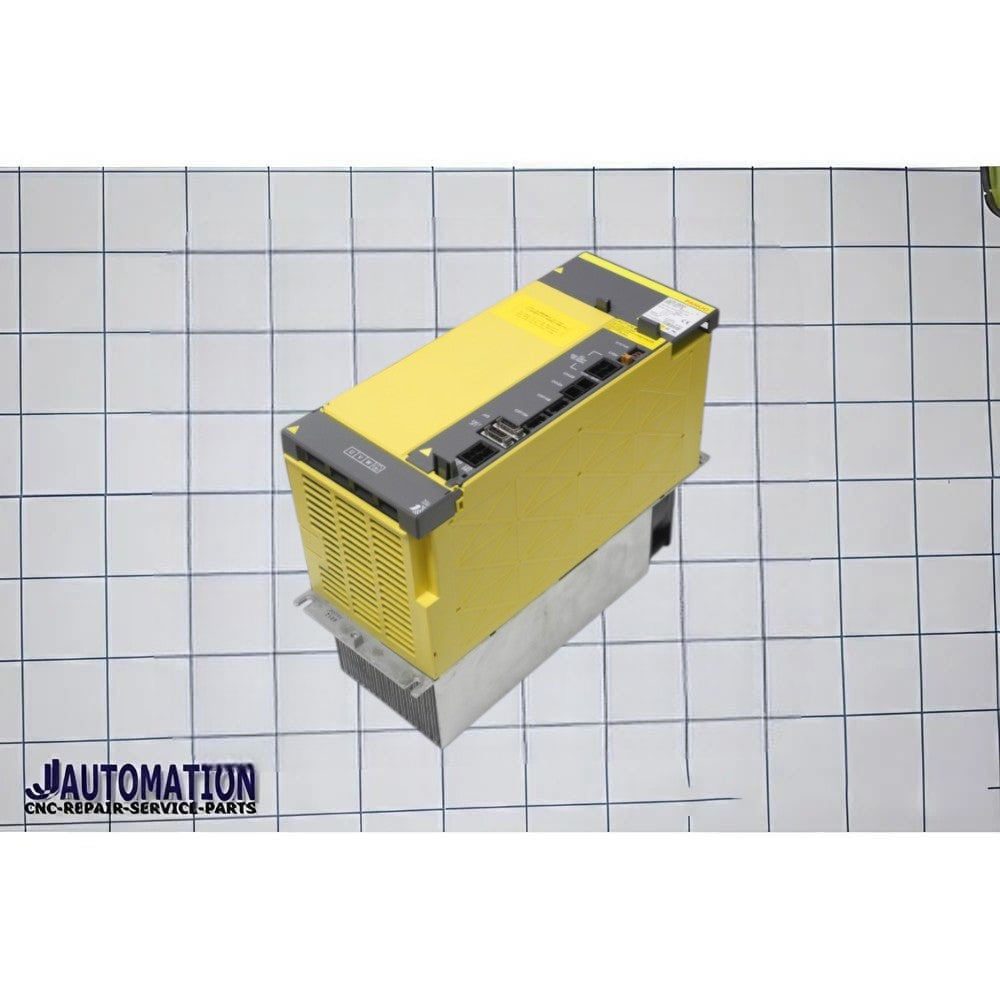

Fanuc ai Servo Amplifier 400VAC-input A06B-6124-H109

🔧

🔧 FANUC A06B-6124-H109 – Alpha i Servo Amplifier Module (Single-Axis / Ultra High Power / Specialized Application)

FANUC A06B-6124-H109 Servo Amplifier

---

🧠 Model Description

A06B-6124-H109 is a FANUC Alpha i (αi) single-axis servo amplifier module from the 6124 series, designed for ultra high-power or specialized applications. This module is used for single axes that require extremely high torque or current, typically in heavy-duty CNC or industrial automation equipment.

---

⚙️ Key Technical Details

• Type: AC Servo Amplifier
• Series: Alpha i (αi) – 6124 series
• Variant: H-type (full-size module)
• Axes: 1-axis
• Current Rating: Ultra High (~50–80A typical, depending on motor and configuration)
• Communication: FSSB (Fiber optic servo bus) compatible

---

⚙️ What “H109” Means

• H = Standard full-size amplifier
• 1 = Single-axis module
• 09 = Ultra high-power or special application variant in the 6124 series

👉 Simple explanation: H109 = single-axis, ultra high-power specialized module

---

⚙️ What It Does

• Drives one ultra-high-power servo motor
• Controls:
  • Position
  • Speed
  • Torque
• Interfaces with CNC via FSSB
• Designed for extreme-duty axes such as:
  • Large rotary tables
  • High-inertia main feed axes
  • Specialized industrial automation axes

---

🏭 Applications

• Heavy-duty CNC machine axes
• High-inertia or large rotary axes
• Specialized automation applications requiring maximum torque and precise control

---

🔍 Key Features

• ✔ Single-axis, ultra high-power module
• ✔ Standard H-type design
• ✔ Compatible with αi servo motors
• ✔ Handles extremely high currents
• ✔ Supports FSSB communication
• ✔ Designed for specialized or heavy-duty axes

---

🧠 Simple Explanation

👉 A06B-6124-H109 is a top-end, ultra high-power FANUC single-axis servo amplifier, built for extreme-duty or specialized applications requiring maximum current and torque beyond standard H102–H106 modules.
