📦 FANUC A06B-6124-H207 — Description
Part Number: A06B-6124-H207
Official Description: Alpha i Servo Amplifier Module – SVM2-30/30HVi
🔧 What It Is

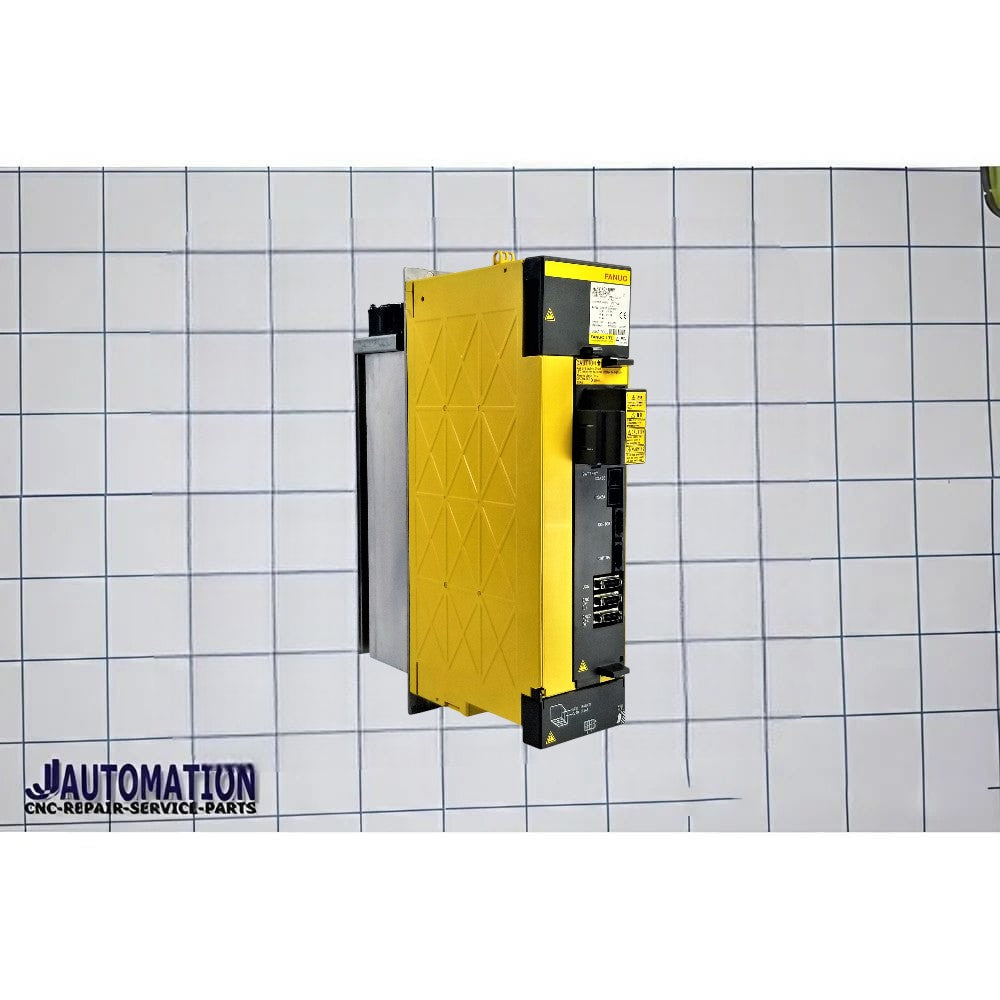

The A06B-6124-H207 is a FANUC Alpha i servo amplifier module designed to control two high-capacity servo motor axes.
👉 Part of the A06B-6124 Alpha i series
👉 Dual-axis (2-axis) servo drive
👉 Model: SVM2-30/30HVi
⚙️ Key Features
- Type: Servo Amplifier (Drive Module)
- Axes: 2-axis control
- Model: SVM2-30/30HVi
- Voltage Class: ~400 V AC (high-voltage)
- Communication: FSSB (Fiber Optic Servo Serial Bus)
- Series: Alpha i (αi)
🧠 Function
This module:
- Receives motion commands from the CNC controller
- Converts them into high-power electrical output
- Drives two servo motors with precise:
- Position control
- Speed control
- Torque control
👉 Designed for heavier loads and higher torque applications compared to lower models.
📊 Model Meaning
- SVM2 → Dual-axis servo module
- 30/30 → Higher output capacity than 20/20 or 10/10
- Suitable for larger servo motors and higher current demand
🔄 Series Comparison
| Model | Capacity | Axes | Typical Use |
|---|---|---|---|
| H202 | 10/10 | 2 | Small motors |
| H205 / H206 | 20/20 | 2 | Medium motors |
| H207 | 30/30 | 2 | Large motors / heavy load |
🏭 Applications
Commonly used in:
- Heavy-duty CNC machining centers
- Large lathes and turning centers
- Multi-axis industrial machines requiring higher torque
Compatible with controllers such as:
- FANUC 0i series
- FANUC 16i / 18i / 21i
📌 Summary
👉 A06B-6124-H207 is a dual-axis Alpha i servo amplifier (SVM2-30/30HVi)
👉 Controls 2 high-power servo motors
👉 Designed for heavy-duty CNC applications
👉 Higher capacity than H205/H206 models
