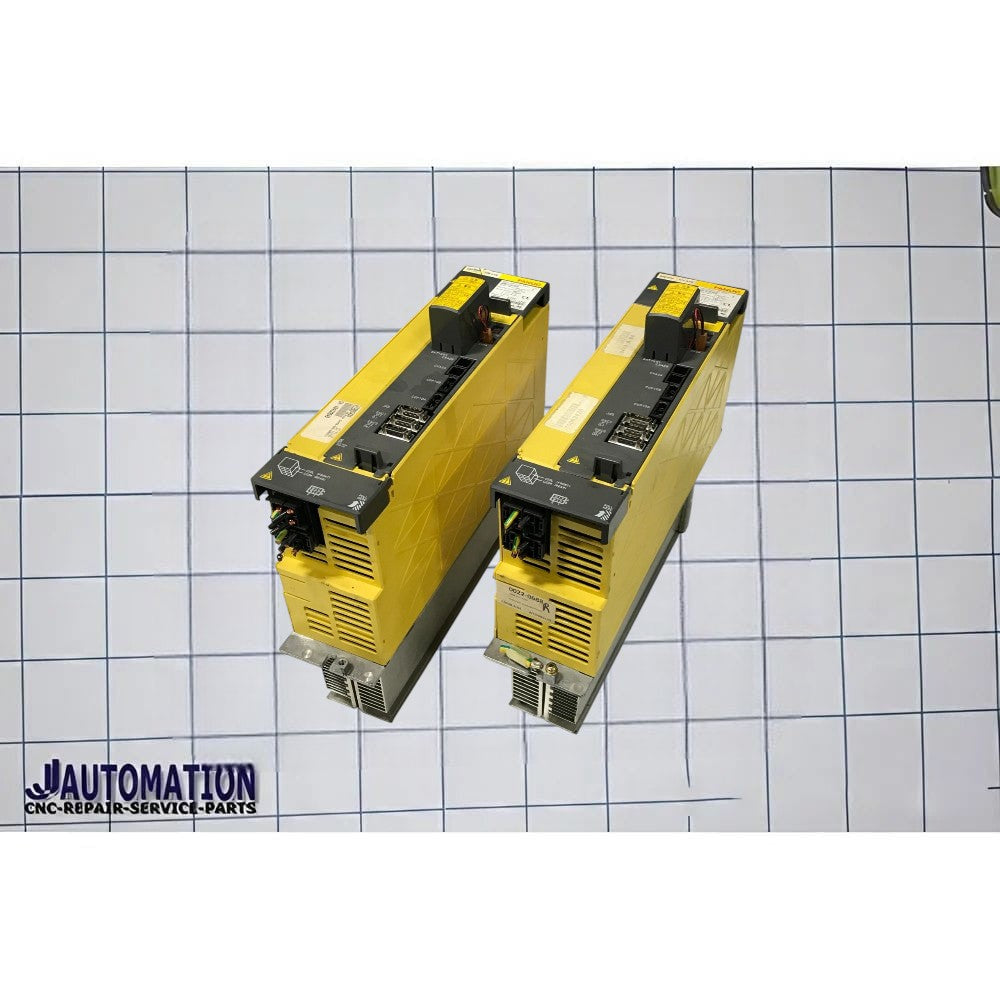

- Full Name: FANUC A06B-6124-H209
- Type: AC Servo Amplifier Module (Drive)
- Model: Alpha i SVM2-80/80HVi
- Function: Controls servo motors in CNC machines
- Axis: 2-axis amplifier (can control two servo motors simultaneously)
⚙️ What it does
This module is part of a CNC system and is responsible for:
- Converting electrical power into controlled motion
- Driving servo motors for machine axes (X, Y, Z, etc.)
- Providing precise speed, torque, and position control
👉 In simple terms:
It is the “brain + power unit” for servo motors in a CNC machine.
🔌 Key Specifications
- Series: Alpha i Servo System
- Input Voltage: ~565–679 V DC
- Output Voltage: Up to ~480 V
- Output Current: ~18.2 A per axis
- Power Rating: ~11.6 kW
- Configuration: Dual-axis (L & M axes)
🏭 Typical Applications
- CNC machining centers
- CNC lathes
- Industrial automation systems
- Robotics systems
🧠 Simple Understanding
- Motor = moves the machine
- Amplifier (this part) = controls the motor
⚠️ Important Note
Many people confuse this with a motor because of the similar part numbering—but:
- Codes starting with A06B-6* can be motors or drives
- This specific code (6124) = servo amplifier (drive)
