📦 FANUC A06B-6127-C105 — Description

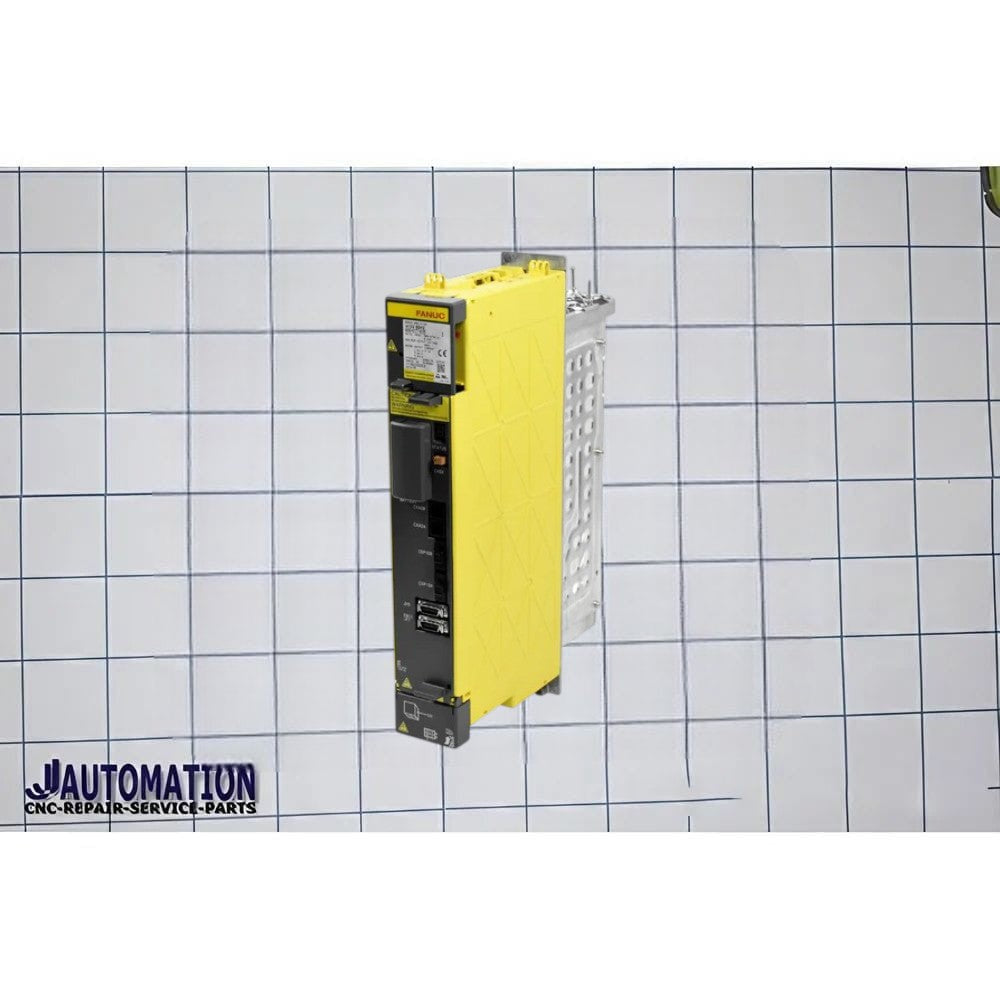

Part Number: A06B-6127-C105
Description: ALPHA i SERVO MODULE MDL AiSV-80HV — a single-axis high-voltage servo amplifier (servo drive) used in CNC machines and industrial automation systems.
🔧 What It Is
The A06B-6127-C105 belongs to FANUC’s A06B-6127 Alpha i (αiSV) series of servo amplifier modules.
It corresponds to the A06B-6127-H105 (AiSV-80HV) model, with the “C” suffix indicating a configuration or revision variant of the same base unit.
- Model Class: AiSV-80HV
- Type: Servo amplifier / servo drive
- Axis Control: Single-axis
- Series: FANUC Alpha i Servo Modules
👉 The equivalent H105 version is officially described as:
- “ALPHA i SERVO MODULE MDL AiSV-80HV”
⚙️ Function & Operation
- Receives motion commands from a FANUC CNC controller
- Converts them into controlled electrical output
- Drives a servo motor with high precision for:
- Position
- Speed
- Torque
These modules are essential for accurate and synchronized motion control in CNC and industrial systems.
📊 Typical Technical Context (AiSV-80HV class)
- Input Voltage: ~565–679 VAC (≈400 V class industrial supply)
- Rated Current: ~18 A
- Power Output: ~5.8 kW
- Drive Type: High-voltage PWM inverter (IGBT-based)
- Cooling: Forced air
- Communication: FANUC FSSB (fiber optic servo bus)
🏭 Applications
Used in:
- CNC machining centers (milling, turning, grinding)
- Industrial robots
- Automated production lines
- High-precision motion control systems
Installed inside the machine electrical cabinet as part of the servo drive system.
📌 Simple Summary
👉 A06B-6127-C105 = FANUC Alpha i servo amplifier (AiSV-80HV, single-axis)
👉 High-voltage servo drive for precise motor control
👉 Equivalent to A06B-6127-H105, with a different suffix (configuration/revision)
