📦 FANUC A06B-6127-C106 — Description

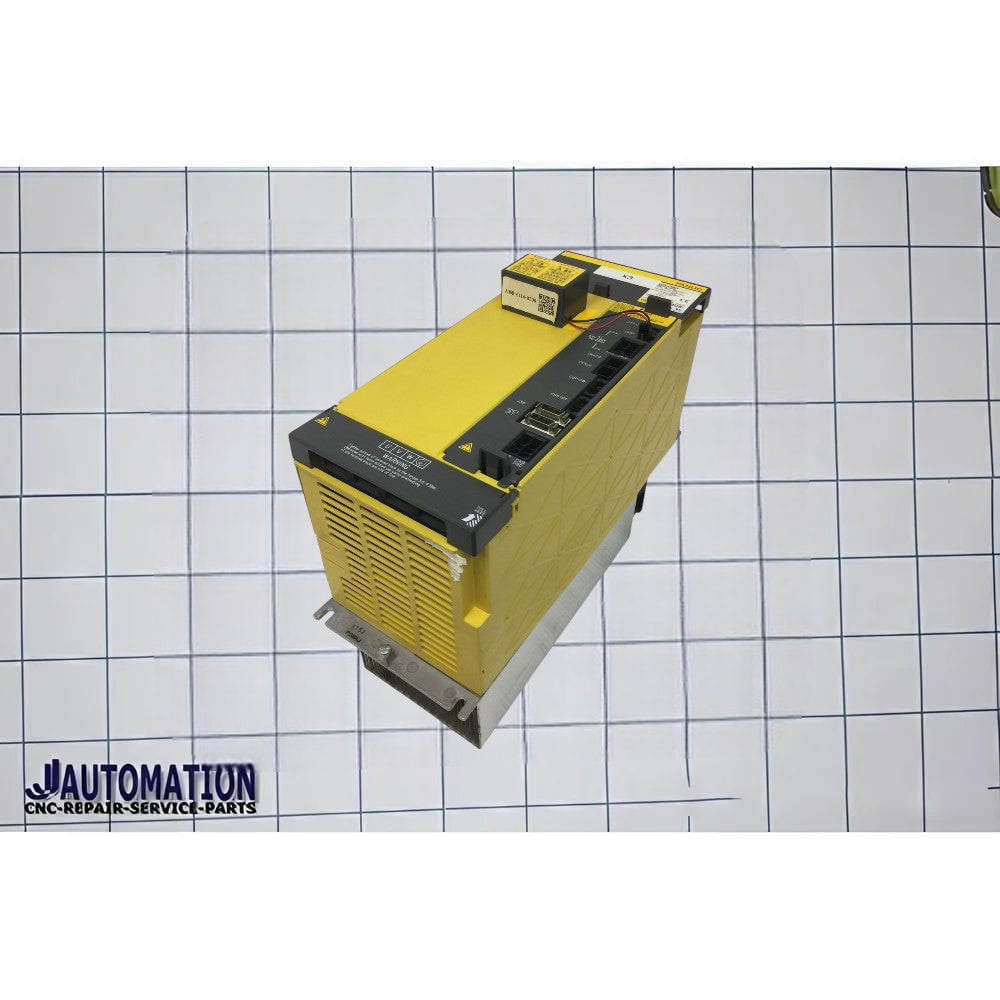

Part Number: A06B-6127-C106
Description: ALPHA i SERVO MODULE MDL AiSV-180HV — a single-axis high-voltage servo amplifier (servo drive) used in CNC machines and industrial automation systems.
🔧 What It Is
The A06B-6127-C106 belongs to FANUC’s A06B-6127 Alpha i (αiSV) series of servo amplifier modules.
It is the C-suffix variant of the well-known A06B-6127-H106, which is officially described as:
- “ALPHA i SERVO MODULE MDL AiSV-180HV”
👉 This means:
- C106 = same base model as H106 (AiSV-180HV)
- Difference is usually revision / configuration / factory variant, not function.
⚙️ Function & Operation
- Receives motion commands from a FANUC CNC controller
- Converts them into controlled electrical power
- Drives a servo motor with high precision for:
- Position
- Speed
- Torque
These modules are essential for accurate axis control in industrial machines.
📊 Typical Technical Context (AiSV-180HV Class)
- Voltage Class: ~400 V AC (high-voltage industrial supply)
- Type: High-voltage servo amplifier (single-axis)
- Output Capacity: High-power class (≈180 series)
- Communication: FANUC FSSB (fiber optic servo bus)
- System Use: Works with FANUC servo motors and CNC systems
This class is designed for heavier load applications compared to smaller models like AiSV-20HV or AiSV-40HV.
🏭 Applications
Commonly used in:
- CNC machining centers (milling, turning, grinding)
- Industrial robots
- Automated production lines
- Heavy-duty motion control systems
Installed inside the machine electrical cabinet as part of the servo drive system.
📌 Simple Summary
👉 A06B-6127-C106 = FANUC Alpha i servo amplifier (AiSV-180HV, single-axis)
👉 High-power, high-voltage servo drive for precision motion control
👉 Equivalent to A06B-6127-H106, with a different suffix (configuration/revision)
