📦 FANUC A06B-6127-C152 — Description

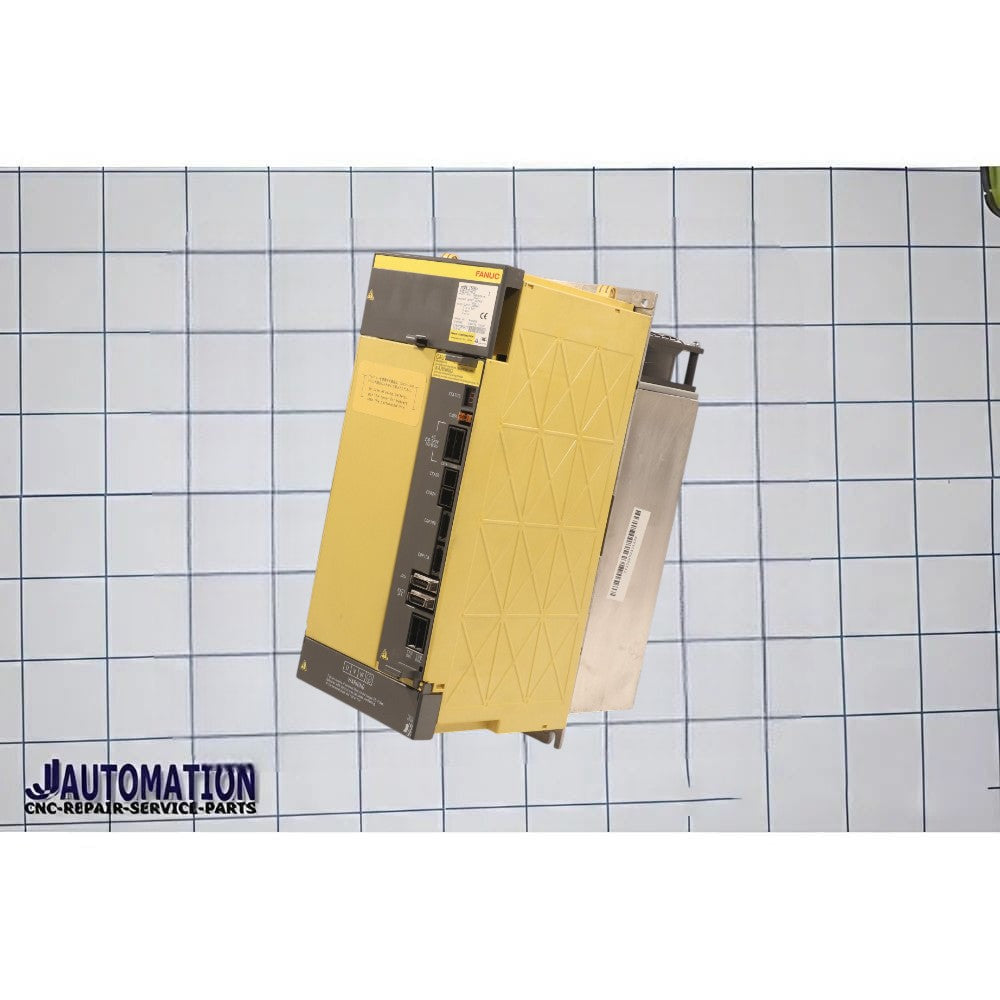

Part Number: A06B-6127-C152
Description: ALPHA i SERVO MODULE MDL AiSV-10HVL — a single-axis high-voltage servo amplifier (servo drive) used in CNC machines and industrial automation systems.
🔧 What It Is
The A06B-6127-C152 is part of FANUC’s A06B-6127 Alpha i (αiSV) series of servo amplifier modules.
It is the C-variant of A06B-6127-H152, which is officially defined as:
👉 “ALPHA i SERVO MODULE MDL AiSV-10HVL”
✔ According to FANUC documentation:
- H152 = Order model
- C152 = Unit/configuration version of the same module
So functionally:
👉 C152 = same base drive as H152 (AiSV-10HVL)
👉 Difference is internal configuration / PCB / revision, not performance.
⚙️ Function & Operation
- Receives motion commands from a FANUC CNC controller
- Converts them into controlled electrical output
- Drives a single servo motor axis with high precision for:
- Position
- Speed
- Torque
This ensures accurate and stable motion control in industrial machinery.
📊 Technical Context (AiSV-10HVL Class)
- Model Class: AiSV-10HVL (HVL = high-voltage, compact/light class)
- Input Voltage: ~400 V AC (industrial supply typical)
- Axis Control: Single-axis
- Communication: FANUC FSSB (fiber optic servo bus)
- Design: Compact modular amplifier with improved energy efficiency and reduced heat
🏭 Applications
Commonly used in:
- CNC machining centers (milling, turning)
- Industrial robots
- Automated production lines
- Precision motion control systems
Installed inside the machine electrical cabinet as part of the servo drive system.
📌 Simple Summary
👉 A06B-6127-C152 = FANUC Alpha i servo amplifier (AiSV-10HVL, single-axis)
👉 Compact, high-voltage servo drive for precise motion control
👉 Equivalent to A06B-6127-H152, with a different suffix (configuration/revision)
