🔎 FANUC A06B‑6127‑C209 – What It Means
The code A06B‑6127‑C209 itself is not a separate, purchasable FANUC hardware part — instead, it’s a unit specification / internal documentation designation used in FANUC manuals and parts lists.
📌 In FANUC’s naming system:
- The “H” code (e.g., A06B‑6127‑H209) refers to the actual servo amplifier module you order and install in a machine.
- The “C” code (e.g., C209) is used within service manuals, parts breakdowns, and wiring diagrams to designate the internal configuration or unit specification that corresponds to that amplifier.
👉 So in short:
A06B‑6127‑C209 = the internal specification/wiring code used in FANUC documentation for the module ordered as A06B‑6127‑H209.
🛠️ What the Corresponding Hardware Is

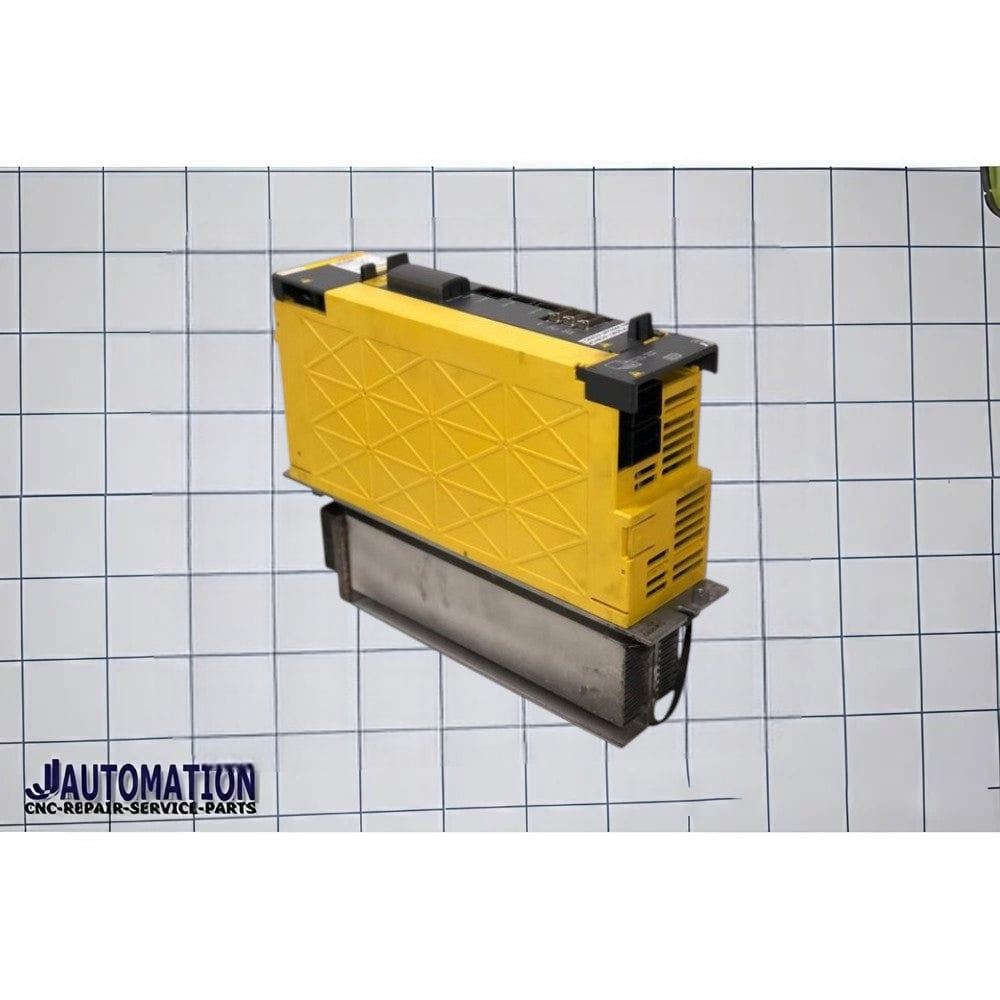

The matching “H‑part” — A06B‑6127‑H209 — is a FANUC αiSV series dual‑axis servo amplifier module with these characteristics:
-
Model: AiSV‑80/80HV dual‑axis high‑voltage amplifier
-
Axes: 2
-
Purpose: Controls two servo motors (position, speed, torque) in CNC and automation systems
-
Used in: CNC machining centers, lathes, and other industrial motion control applications
This amplifier module converts AC mains power into precisely controlled output for servo motors and interfaces with the FANUC CNC controller via the FSSB protocol.
🧠Why the “C” Code Exists
FANUC uses both H and C designations in its documentation to help technicians:
-
H‑codes identify the exact hardware module for ordering and replacement
-
C‑codes identify the internal wiring / assembly specification associated with that module in manuals, parts lists, and schematic diagrams
So:
✔️ A06B‑6127‑H209 → Actual drive module
✔️ A06B‑6127‑C209 → Internal specification for that module
They refer to the same physical unit — one for documentation, one for ordering.
âś… Summary
A06B‑6127‑C209 is a FANUC internal specification code associated with a specific servo amplifier module — it corresponds to:
➡️ A06B‑6127‑H209 – Alpha iSV dual‑axis servo amplifier (AiSV‑80/80HV) used in CNC systems for precise two‑axis motion control.
If you want, I can also tell you the internal boards/components inside that H209 amplifier (like the power PCB model), or help interpret a specific alarm code you’re seeing.
