Description
🔎 FANUC A06B‑6127‑C252 – What It Is
A06B‑6127‑C252 is not a separate hardware part you install or buy by itself — it’s a unit specification / internal designation code used in FANUC technical documentation (such as parts lists, wiring diagrams, and manuals). It corresponds to a specific configuration of a servo amplifier module in the A06B‑6127 family.
📌 In FANUC part numbering:
- Order Specification ("H‑code") — the actual part you purchase and install.
- Unit Specification ("C‑code") — used in manuals and documentation to describe the internal configuration tied to that H‑part.
- Board/Wiring Specification — often tied to a specific PCB inside the module.
👉 So:
A06B‑6127‑C252 = internal unit specification for a FANUC servo amplifier module associated with A06B‑6127‑H252.
📌 What the Corresponding Hardware Is
The matching H‑part for C252 is:

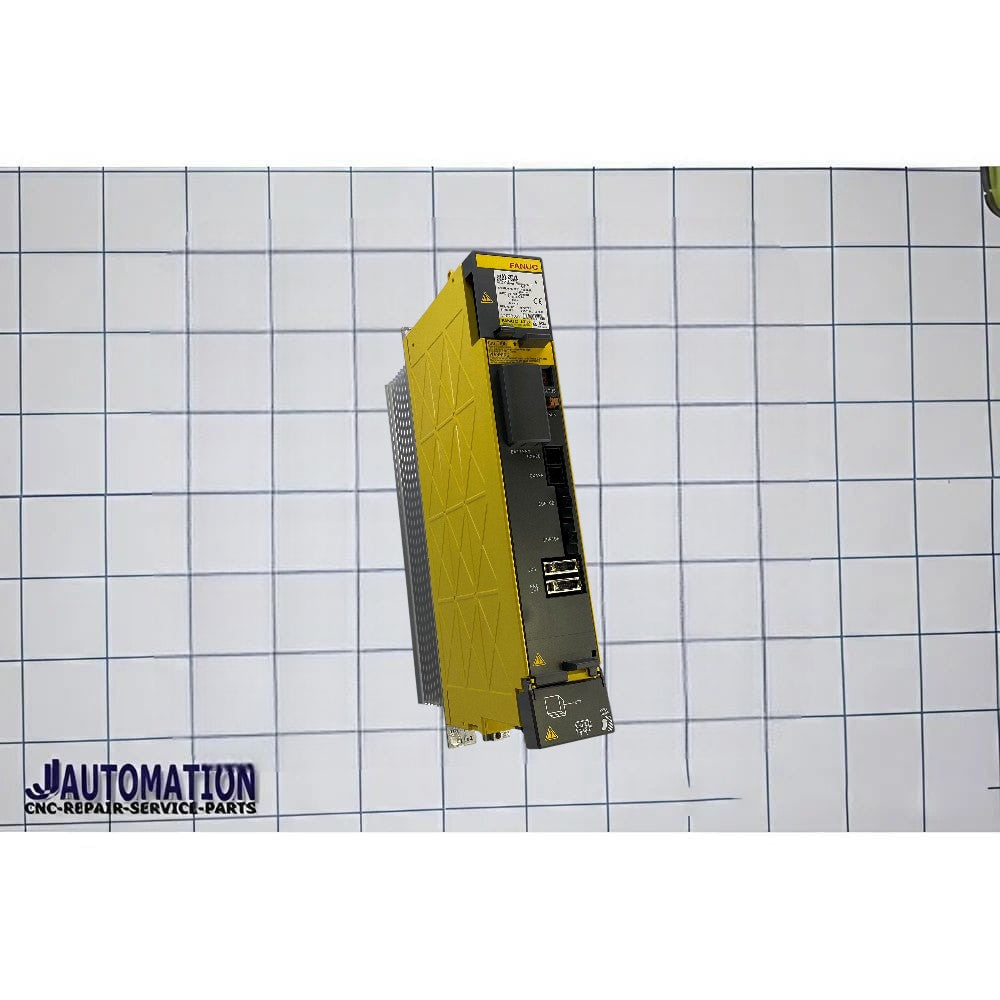

Fanuc A06B‑6127‑H252 Servo Amplifier —
2‑Axis Alpha i Servo Module MDL AiSV‑10/10HVL
This module is a high‑voltage servo amplifier used in FANUC CNC motion control systems to drive two servo motor axes simultaneously for precise position, speed, and torque control.
🧠 Why There Are Both “C” and “H” Codes
FANUC naming typically uses:
- “H” (Order Spec) — The actual part number used for ordering, shipping, and replacement.
- “C” (Unit Spec) — Refers to internal documentation and wiring/assembly configuration within service manuals.
- “A16B‑2203…” — The internal printed circuit board that sits inside that amplifier.
📌 These are just different labels for the same unit from different contexts (ordering vs. documentation). The physical hardware you install is the H‑part.
🛠️ What It Does
This servo amplifier module:
- ⚡ Converts AC mains power to controlled outputs for servo motors
- 🎯 Controls precise motion (position/velocity/torque) of two CNC axes
- 🔌 Interfaces with the CNC controller via FANUC’s FSSB bus
- 🔄 Works with FANUC αi servo motors in machine tool applications
✅ Summary
- A06B‑6127‑C252 is an internal unit/documentation code.
- It corresponds to the FANUC servo amplifier module with order spec A06B‑6127‑H252.
- The real physical part you replace or install is H252 — a dual‑axis high‑voltage servo drive.
