🔧 FANUC A20B‑2100‑0742 – Power / Control PCB (Servo Amplifier Module)

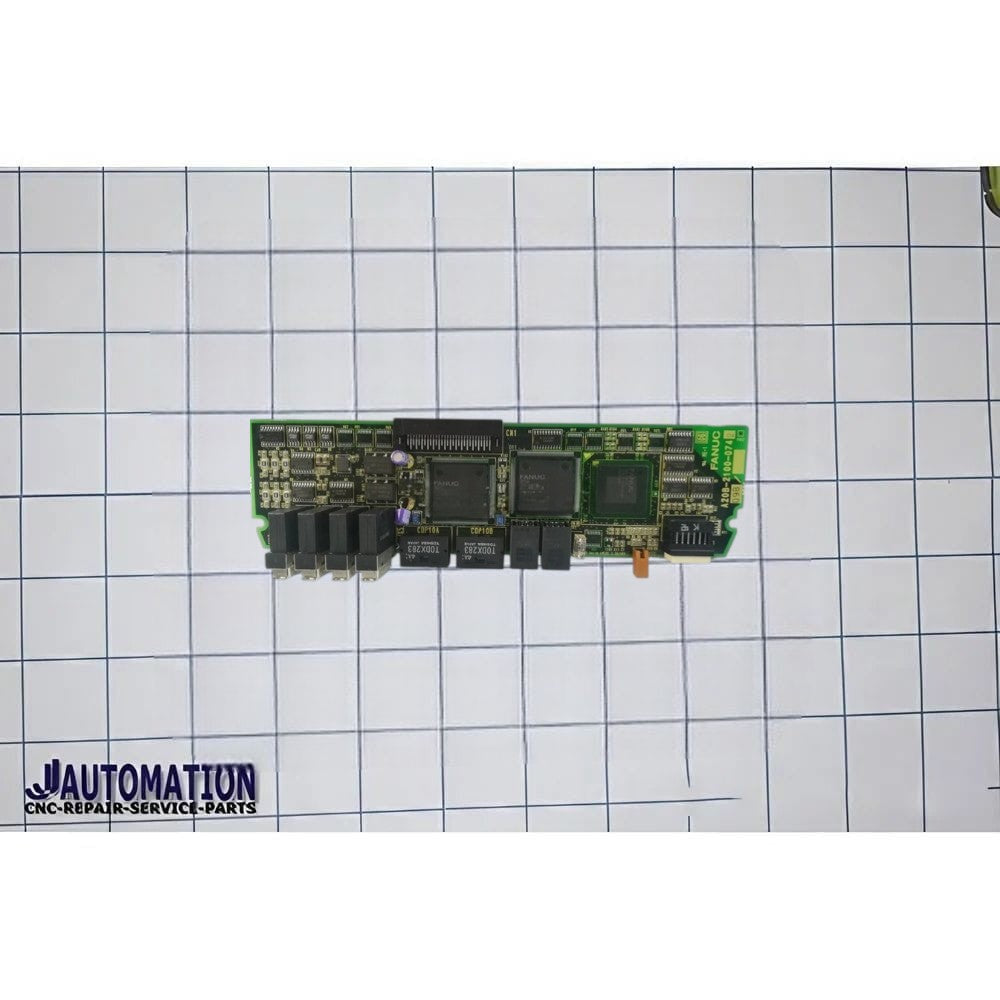

FANUC A20B-2100-0742 PCB Board
🧠 Model Description
A20B‑2100‑0742 is a FANUC internal printed circuit board (PCB) used inside Alpha i (αi) servo amplifier modules. It is primarily a power control / interface board responsible for managing drive logic and communication with the servo motors.
⚙️ Key Technical Details
- Type: Internal control/power interface PCB
- Series: A20B‑2100
- Function: Control and interface between CNC commands and the servo power stage
- Axes Supported: Usually 1 or 2 axes, depending on amplifier configuration
- Used In: Alpha i servo amplifiers (SVM series)
⚙️ What It Does
The board performs the following functions:
-
Motion Control Interface
- Receives commands from CNC controller
- Sends signals to servo motors via amplifier power stage
-
Power Management / Coordination
- Controls IGBT switching in the servo amplifier
- Coordinates multi-axis motion in 1–2 axis amplifiers
-
Feedback / Communication
- Interfaces with encoder or resolver feedback
- Communicates with CNC via FSSB (Fiber optic servo bus)
👉 Simple explanation:
It acts as the “brain and interface” between CNC commands and the power stage that drives servo motors.
🏭 Where It Is Used
- Inside Alpha i (αi) servo amplifiers, particularly in:
- Medium or high-power 1–2 axis modules
- Machines requiring precise servo control
- Typical applications:
- CNC machining centers
- Vertical / horizontal mills
- Automation systems
🔍 Key Characteristics
- ✔ Internal PCB (cannot operate standalone)
- ✔ Controls one or two axes depending on module configuration
- ✔ Handles power switching logic (IGBT driver)
- ✔ Compatible with FANUC αi servo amplifier series
- ✔ Supports FSSB communication
🔄 Difference from A20B‑2101 Series
| Model | Function |
|---|---|
| A20B‑2100‑0742 | Power interface + drive logic PCB (inside amplifier) |
| A20B‑2101‑0042 | Control PCB (motion logic + CNC communication) |
👉 2100 series mostly deals with power stage interface, 2101 series with control / motion processing.
🧠 Simple Explanation
👉 A20B‑2100‑0742 is an internal FANUC PCB that manages the power stage and interfaces between the servo amplifier and motors, coordinating motion commands from the CNC.
