Fanuc αi Servo Amplifier Control Card 200VAC-input A20B-2101-0042

🔧 FANUC A20B-2101-0042 – Servo Control PCB (Dual-Axis)

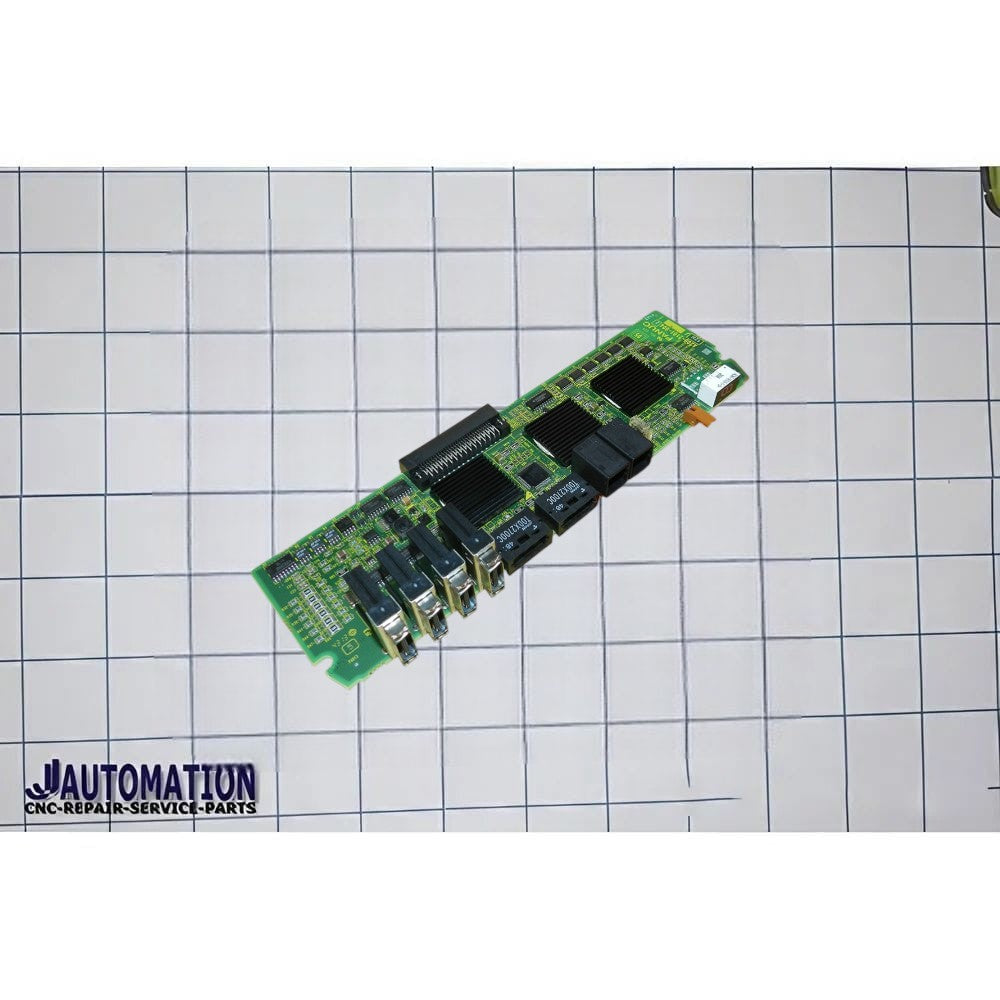

FANUC A20B-2101-0042 PCB Board

---

🧠 Model Description

A20B-2101-0042 is a FANUC internal printed circuit board (PCB) used inside Alpha i (αi) servo amplifier modules. It is a servo control / interface board responsible for managing motion control for one or two axes.

---

⚙️ Key Technical Details

• Type: Servo control PCB (internal board)
• Series: A20B-2101
• Function Class: Control / interface board
• Axes Supported: 1-axis or 2-axis (dual channel)
• Used In: Alpha i servo amplifiers (SVM / aiSV modules)

---

⚙️ What It Does

This board acts as the main control interface inside the servo amplifier, handling:

• 🧠 Motion control processing
  • Position
  • Speed
  • Torque commands
• 📡 Communication with CNC controller
  • Receives commands via FSSB (fiber optic bus)
• 🔄 Signal coordination
  • Interfaces between:
    • CNC CPU
    • Power stage (IGBT inverter)
    • Encoder feedback system
• ⚙️ Axis management
  • Controls 1 or 2 servo axes depending on amplifier configuration

👉 Simple explanation:
It is the “brain/control board” inside a FANUC servo amplifier.

---

🏭 Where It Is Used

• Inside FANUC Alpha i servo amplifiers
• Used in:
  • CNC machining centers
  • CNC lathes
  • Multi-axis automation systems

Works together with:

• A16B-2203 series (wiring/interface boards)
• Power modules (IGBT drive section)

---

🔍 Key Characteristics

• ✔ Internal PCB (not standalone device)
• ✔ Dual-axis capable control board
• ✔ Handles communication + motion logic
• ✔ Essential for servo amplifier operation
• ✔ Commonly repaired/refurbished

---

🔄 Difference from A20B-2101-0041

👉 Functionally very similar, but:

• May differ in firmware compatibility
• Used in slightly different amplifier revisions

---

🧠 Simple Explanation

👉 A20B-2101-0042 is an internal FANUC control PCB that processes motion commands and controls one or two servo axes inside a servo amplifier.
