Description
๐ง A20B-2101-0070 โ Description

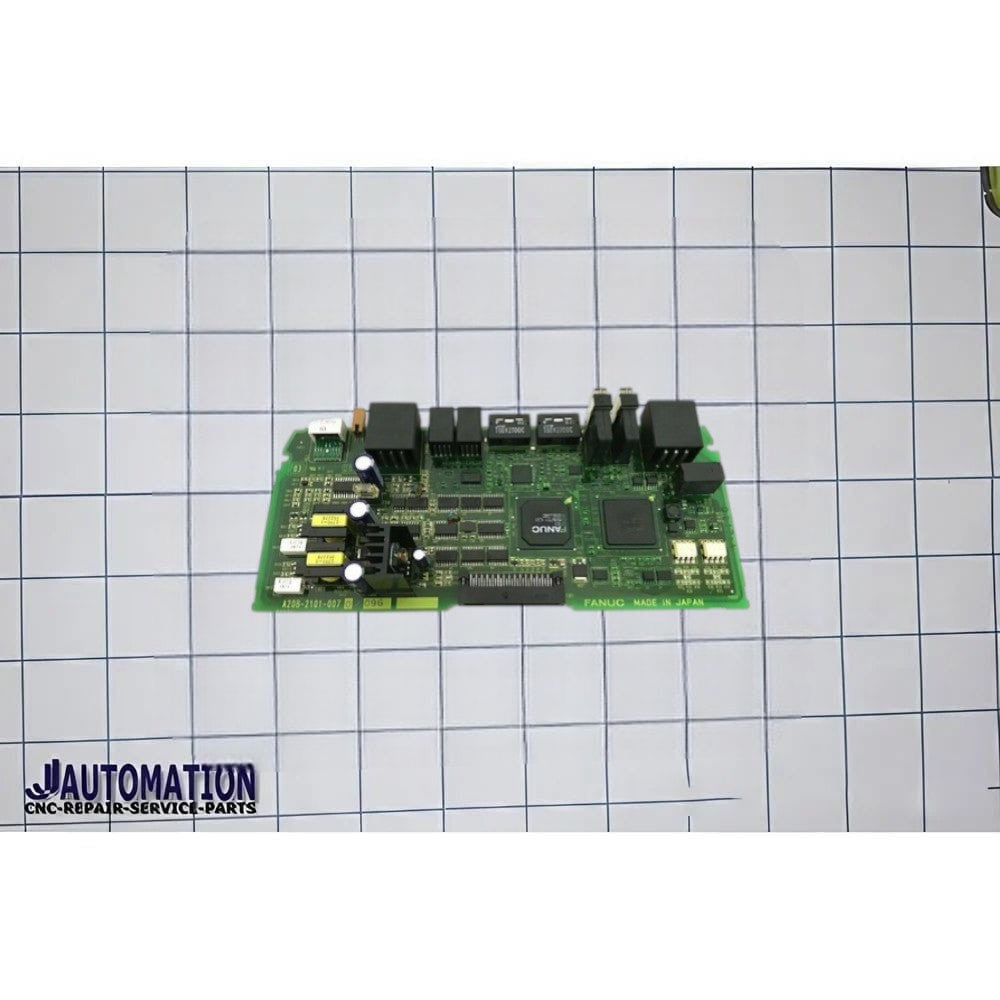

The A20B-2101-0070 is a FANUC main control PCB (Printed Circuit Board) used in CNC systems, typically serving as a master/base board (motherboard) or system control board in the CNC rack.
โ๏ธ Identification
-
Manufacturer: FANUC
-
Part Type: PCB (Printed Circuit Board)
-
Series: A20B-2101 (main system / base boards)
-
Function Category: Motherboard / system control / backplane board
๐ Function
The A20B-2101-0070 acts as a central system board that:
-
Provides the communication backbone between all CNC modules
-
Interfaces with:
-
CPU board
-
Servo/axis control boards
-
I/O modules
-
Operator panel (MDI/CRT)
-
-
Distributes signals and power pathways across the system
-
Supports data exchange between different CNC modules
๐ It is essential for coordinating the overall CNC system operation.
โก Technical Overview
-
Role: Master PCB / motherboard / backplane-type board
-
Integration: Installed inside CNC control cabinet (rack-mounted)
-
Connections: Multiple connectors/slots for modular boards
-
Compatibility: Typically used in FANUC:
-
0 series
-
16/18/21 series CNC systems (depending on configuration)
-
๐ Key Features
-
Centralized communication hub for CNC system
-
Supports modular architecture (easy maintenance and expansion)
-
High reliability for continuous industrial operation
-
Enables high-speed signal/data transfer
๐ญ Applications
-
CNC machining centers
-
Lathes and turning machines
-
Milling machines
-
Automated industrial systems using FANUC CNC
๐ง Simple Explanation
๐ A20B-2101-0070 = CNC โmain motherboard/backboneโ
-
CPU = brain
-
Drives = muscles
-
This board = nervous system connecting everything together
๐ Context vs Similar Boards
-
A20B-2101-0040 โ Earlier/variant base board
-
A20B-2101-0070 โ Updated/alternate base board
-
A20B-2100-0830 โ CPU/control board
