🔧 A20B-2101-0354 — Description

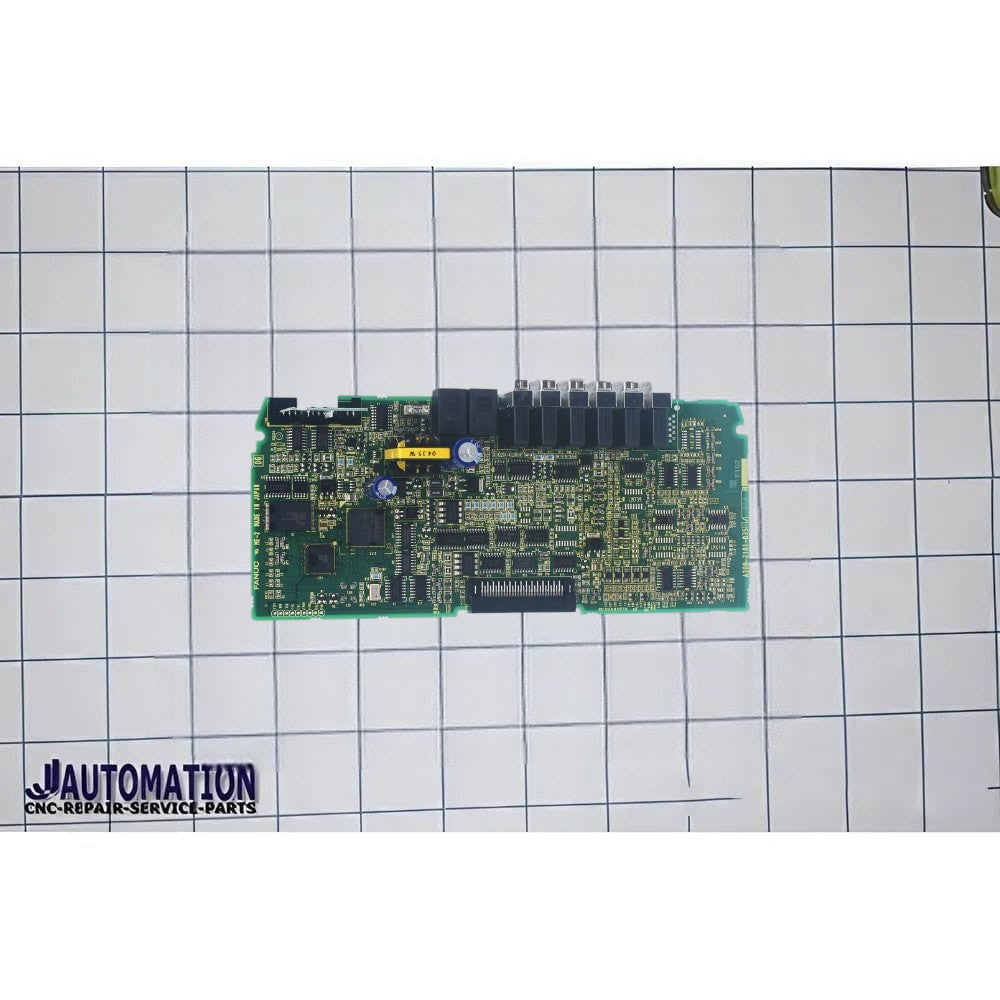

A20B-2101-0354 is a FANUC spindle/servo drive PCB (printed circuit board) used in CNC spindle drive systems, particularly within Alpha i spindle drive (6111 series) configurations.
📌 Full Technical Description
- Manufacturer: FANUC
- Part Number: A20B-2101-0354
- Type: Spindle drive board / servo add-on PCB
- Series: A20B-2101
- Application: CNC spindle drive system (Alpha i / 6111 series)
⚙️ Function (What it does)
- Acts as a spindle drive control board inside the amplifier system
- Handles:
- Spindle motor control logic
- Signal processing between CNC controller and drive
- Power/control coordination for spindle operation
- Feedback processing from sensors
👉 In simple terms:
It is the “brain board” of the spindle drive, helping control how the spindle motor runs.
🔍 Technical Role (Important)
- Identified as:
- Spindle control board
- Servo add-on / drive PCB
- Specifically used in:
- Alpha i spindle drive Type-A (6111 series)
👉 This confirms:
It directly belongs to the spindle drive system (not just general CNC I/O or CPU board).
🏭 Where it is used
- Installed inside:
- FANUC spindle amplifier modules (Alpha i / 6111 series)
- Used in:
- CNC machining centers
- CNC lathes
- Industrial milling machines
🧩 Key Specifications (typical)
- Digital control signals
- ~24V control output (typical board-level control)
- Works with:
- CNC controller (A20B/A16B boards)
- Spindle motor via amplifier
⚠️ Important Notes
- ❗ Discontinued by manufacturer (common for this series)
- ❗ Usually available as:
- Refurbished
- Repair/exchange unit
- ❗ Must match:
- Exact spindle amplifier model
- Machine configuration
Common failure symptoms:
- Spindle not rotating
- Spindle drive alarms
- Communication fault with CNC
👍 Summary
A20B-2101-0354 = FANUC spindle drive control PCB
➡️ Used in Alpha i (6111 series) spindle amplifiers
➡️ Controls spindle motor operation and drive logic
➡️ Critical internal board for CNC spindle system
