Description

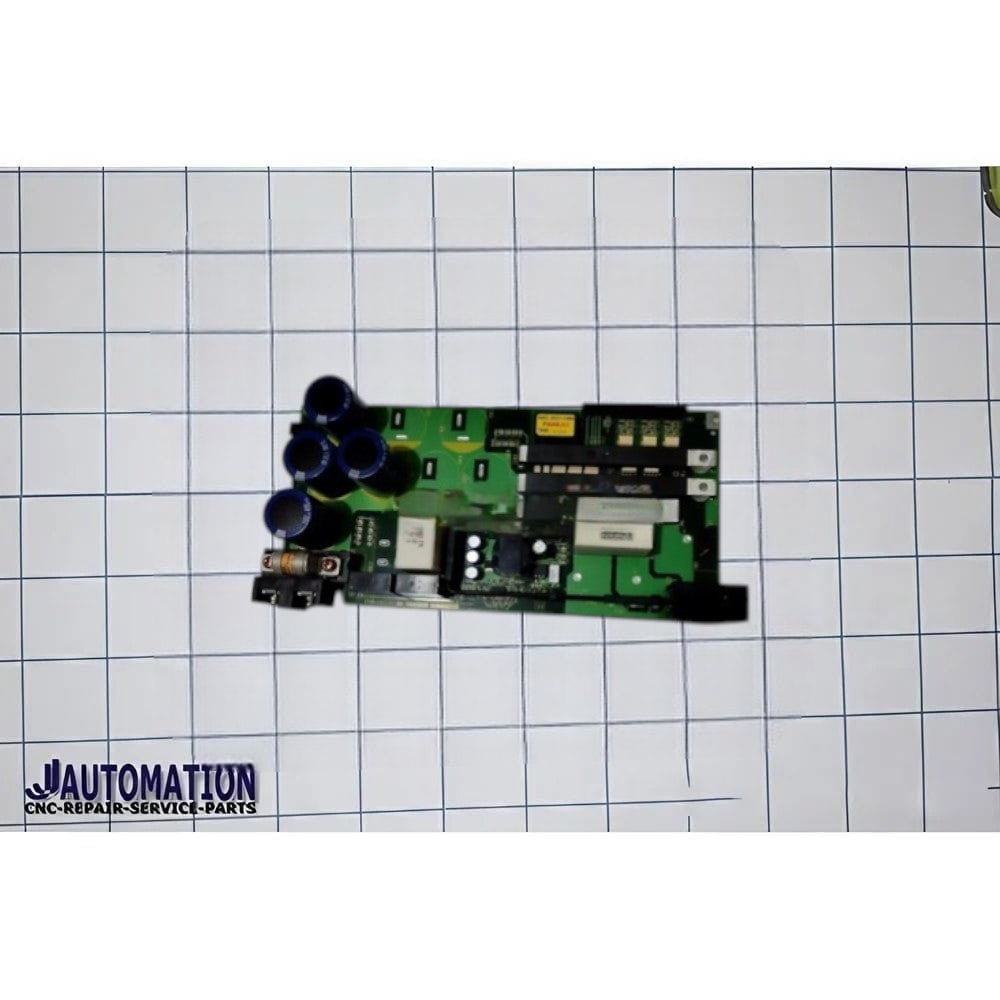

A16B-2203-0661 is a FANUC servo amplifier printed circuit board (PCB) used inside FANUC CNC servo drive modules.
Basic Description
-
Manufacturer: FANUC
-
Part Number: A16B-2203-0661
-
Type: Servo amplifier control / wiring PCB
-
Component Type: Printed circuit board (PCB) for servo drive
-
Application: CNC machine servo systems
Where it is Used
This board is installed inside αi series single-axis servo amplifier modules, such as:
-
SV80 servo amplifier
-
A06B-6114-H105 / C105 units
Main Function
The A16B-2203-0661 PCB performs several important control tasks inside the servo amplifier:
-
Interfaces between the CNC controller and servo power module
-
Processes motor feedback signals (encoder/resolver)
-
Sends control commands to the power stage (IGBT / drive circuits)
-
Helps regulate current, speed, and position control loops
-
Provides communication and alarm signals to the CNC system
Typical Installation
-
Mounted inside the servo amplifier housing
-
Not used as a standalone board
-
Connected with ribbon cables and connectors to the amplifier power section and CNC control signals.
Typical Machines Using It
You usually see this board in:
-
CNC machining centers
-
CNC lathes
-
Industrial machines using FANUC αi servo drives.
✅ In simple terms:
A16B-2203-0661 = internal control PCB for FANUC αi SV80 servo amplifier that manages servo motor control and communication with the CNC controller.
