🔧 A16B-2203-0666 — Description

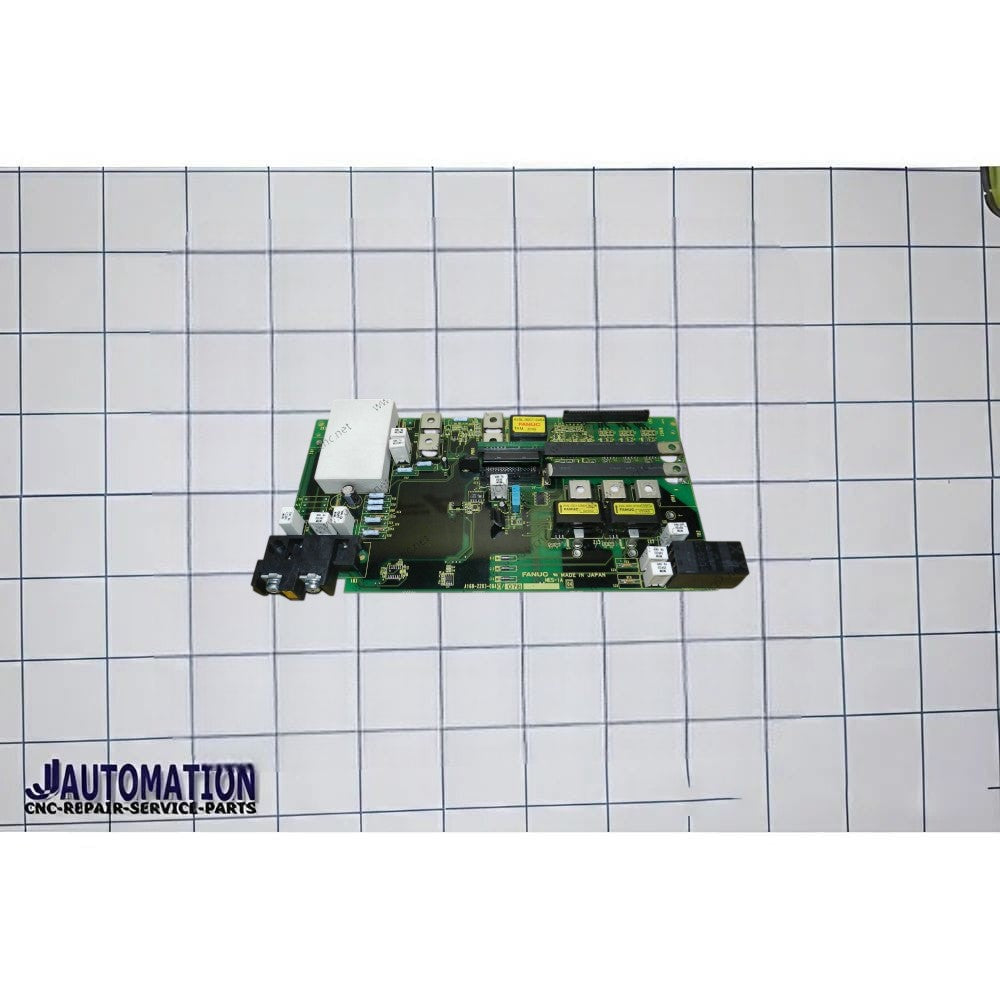

The A16B-2203-0666 is a FANUC control PCB (Printed Circuit Board) used in CNC systems, typically serving as a servo amplifier interface or spindle/motion control board.
⚙️ Identification
-
Manufacturer: FANUC
-
Part Type: PCB (Printed Circuit Board)
-
Series: A16B control boards
-
Function Category: Signal processing / control interface
-
Role: Interfaces between the CNC CPU and servo/spindle drives
🔍 Function
This board is responsible for:
-
Processing control signals from the CNC CPU to servo amplifiers
-
Handling feedback signals from motors and encoders
-
Signal conditioning to ensure precise motion control
-
Serving as a communication bridge between CNC main board and servo/spindle modules
The 0666 version is generally a revision or variant of previous A16B-2203 boards, offering updates for compatibility or reliability in certain FANUC systems.
⚡ Technical Overview
-
Role: Servo/spindle control interface
-
Integration: Installed in FANUC CNC cabinets, connected via backplane or ribbon cables
-
Compatibility: Works with FANUC CNC systems such as 0i, 16i, 18i, 21i, and Ai/αi series servo amplifiers
-
Design: Industrial-grade PCB for continuous operation
🚀 Key Features
-
High reliability for industrial CNC operation
-
Supports precise servo and spindle motion control
-
Modular design allows easy replacement
-
Handles high-speed signal processing and motor feedback
🏭 Applications
-
FANUC CNC systems (milling, turning centers, machining centers)
-
Industrial automation systems requiring accurate axis control
-
Servo or spindle modules in high-precision machines
🧠 Simple Explanation
-
A16B-2203-0666 = “control/interface PCB”
-
Think of it as the translator between the CNC brain and the machine’s muscles (servo motors/spindles)
-
The 0666 version is typically a refined or updated revision for certain machine configurations
