Description
🔧 Model Overview

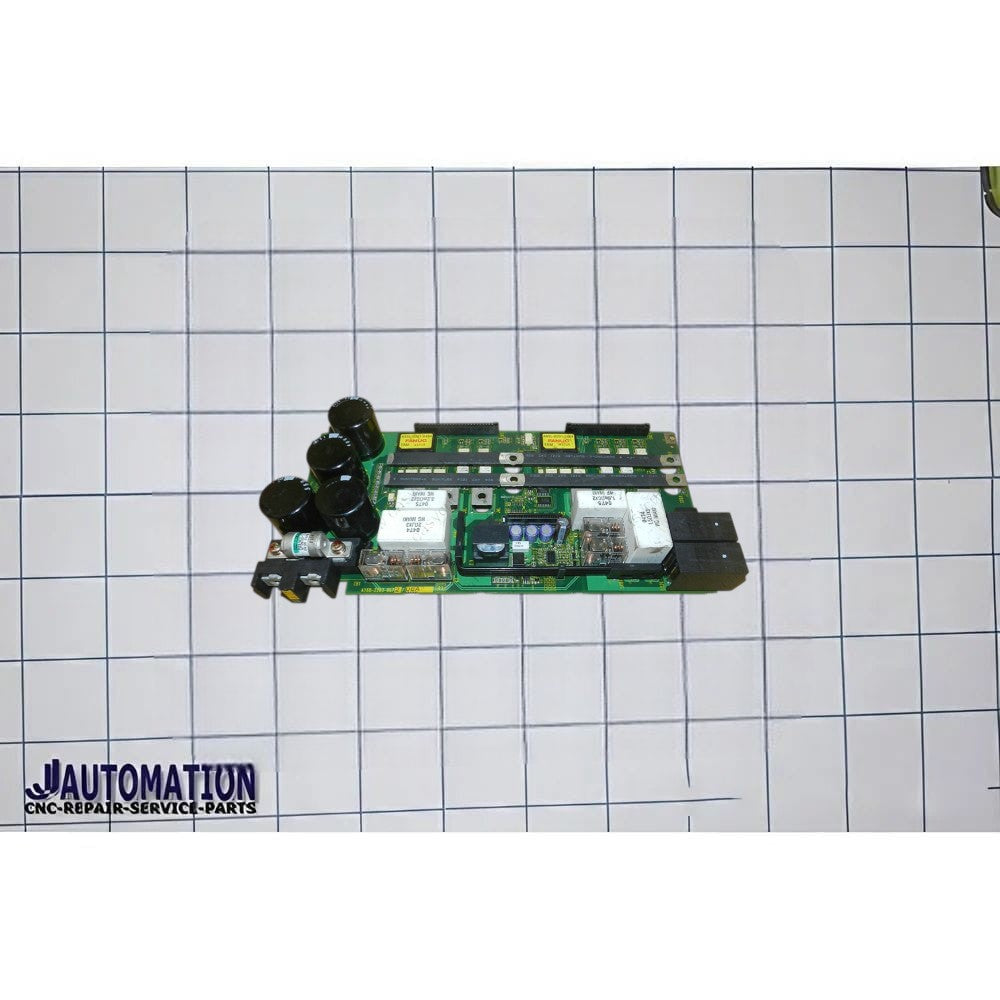

A16B‑2203‑0672 is an internal FANUC printed circuit board (PCB) used in CNC drive and controller systems — specifically as part of the A16B‑2203 electronics family. It’s not a standalone motor drive or power amplifier, but a crucial electronic board within larger FANUC assemblies.
🧠What It Is
👉 A16B‑2203‑0672 is a FANUC PCB (printed circuit board) that typically functions as a power supply / control board within FANUC servo amplifier modules or CNC electronics. It is used inside internal drive/controller modules (for example in units like the A06B‑6114‑H208 drive).
- It is part of the A16B‑2203 circuit board series — a group of internal logic and power boards in FANUC systems.
- Boards like this are often installed on the internal backplane or inside the chassis of a CNC controller or servo drive assembly.
- They provide power regulation and logic interfacing between the controller’s electronics and other sub‑modules.
⚙️ What It Does
This board is generally responsible for:
âś” Power distribution and regulation within a FANUC servo or drive unit
âś” Supporting internal logic and communication between the CNC controller and power/servo stages
âś” Ensuring stable internal voltages for other PCB components
âś” Helping coordinate signals for motion control and feedback processing
Because it’s an internal board, it is difficult to define a single “output” — its function depends on the electronic assembly it’s part of rather than acting as a discrete module.
🧩 Typical Uses & Context
- Found inside FANUC drive cards or servo amplifier units (e.g., used with modules like A06B‑6114‑H208).
- Employed in industrial CNC machining centers, lathes, and milling machines where FANUC controls are used.
- Often stocked as a replacement part for internal PCBs when repairing or refurbishing drive assemblies.
🔍 Key Features
- FANUC OEM PCB — original board used by FANUC in controller/drive units.
- Power supply / internal logic board — supports essential electrical infrastructure in the module.
- Typically used with Series 16 servo drives or similar FANUC systems.
