🔧 A16B-2203-0690 — Description

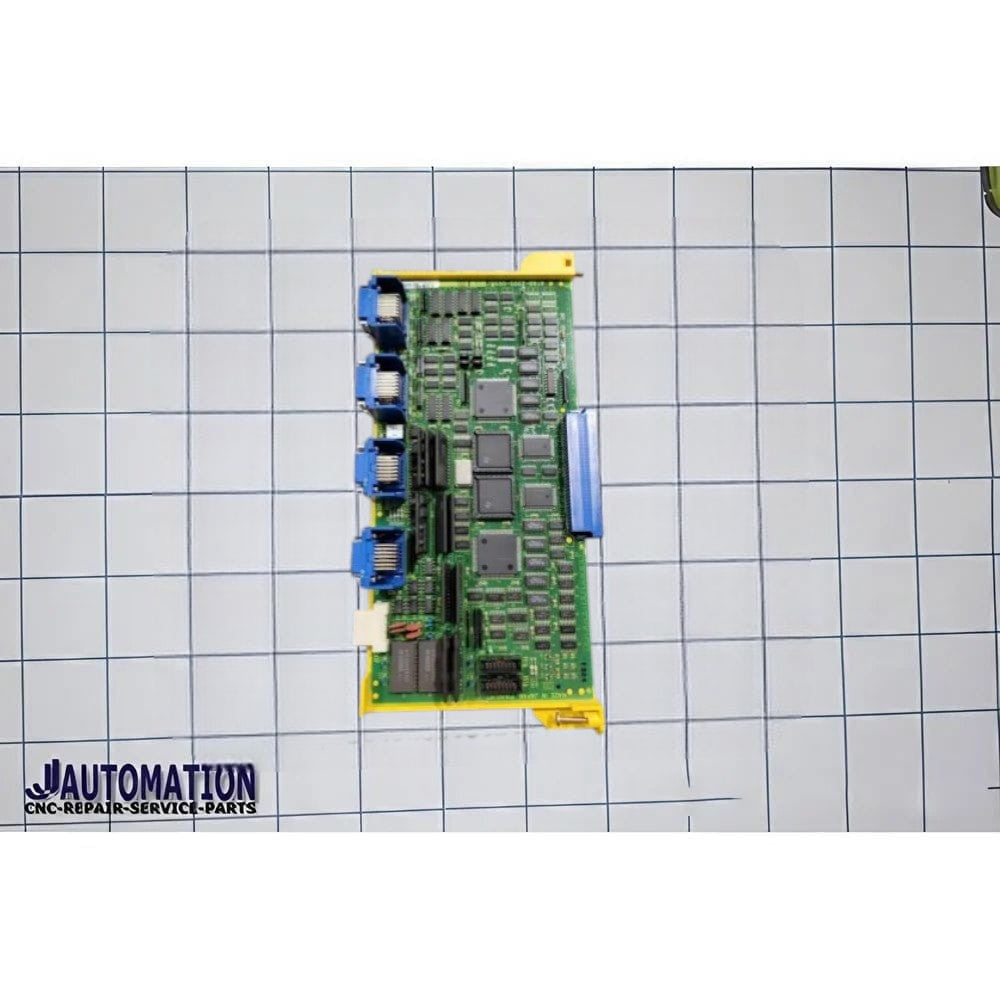

The A16B-2203-0690 is a FANUC control PCB (Printed Circuit Board) used inside FANUC CNC systems, typically as part of the servo/spindle control or interface circuitry.
⚙️ Identification
-
Manufacturer: FANUC
-
Part Type: PCB (Printed Circuit Board)
-
Series: A16B control boards (used across multiple FANUC systems)
-
Function Category: Control / interface / signal processing board
🔍 What This Board Does
The A16B-2203-0690 acts as a control and signal interface board within the CNC system. Depending on the exact machine configuration, it typically:
-
Processes control signals between CNC and servo amplifiers
-
Handles I/O communication and feedback signals
-
Supports axis control or spindle interface functions
-
Works with other boards in the CNC rack (modular system)
⚡ Typical Functional Roles
This PCB may be used for:
-
Servo interface control (communication with α/αi amplifiers)
-
Spindle control interface
-
Signal conditioning and processing
-
System coordination between CNC CPU and drives
🧩 System Integration
-
Installed inside the CNC control cabinet
-
Works alongside:
-
CPU board
-
Power supply unit
-
Servo/spindle modules
-
-
Connected via backplane or ribbon connectors
🚀 Key Features
-
High-reliability industrial PCB design
-
Designed for continuous CNC operation
-
Compact modular integration
-
Supports high-speed signal processing
🏭 Applications
Used in:
-
FANUC CNC systems (0i, 16i, 18i, 21i, etc.)
-
CNC machining centers
-
Lathes and turning centers
-
Industrial automation systems
🧠 Simple Explanation
👉 Think of A16B-2203-0690 as a “communication and control board” that helps the CNC system talk to and control motors and other hardware.
