🔧 A16B-2203-0691 — Description

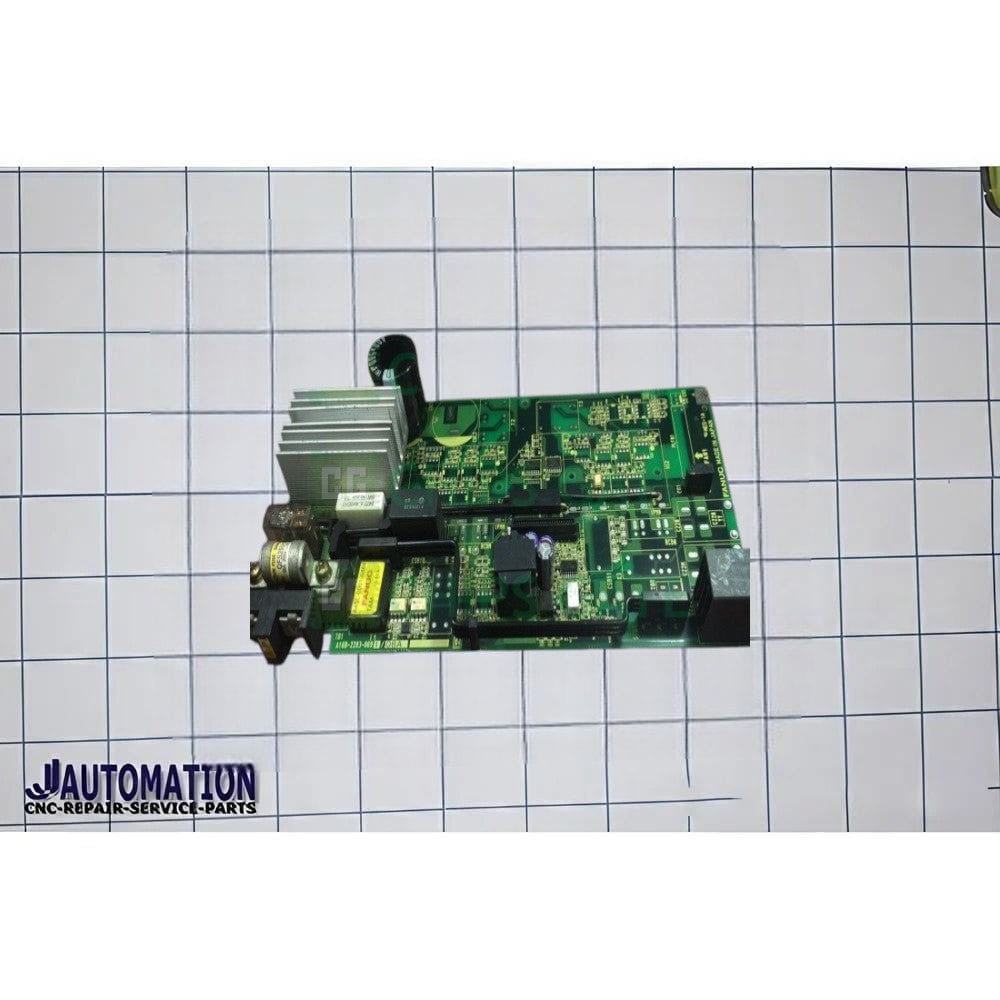

The A16B-2203-0691 is a FANUC control PCB (Printed Circuit Board), closely related to the A16B-2203-0690, used in CNC systems for servo or spindle interface and signal processing.
⚙️ Identification
-
Manufacturer: FANUC
-
Part Type: PCB (Printed Circuit Board)
-
Series: A16B control boards
-
Function Category: Control / interface / I/O processing board
-
Relation: Often a companion or updated revision of A16B-2203-0690
🔍 Function
This board typically:
-
Interfaces between the CNC CPU and servo/spindle modules
-
Processes feedback signals from motors and encoders
-
Handles I/O communication for axes or spindles
-
Ensures signal conditioning and accurate command transmission
In many setups, the 0691 version is a revision with minor upgrades over 0690, often improving reliability or compatibility with newer FANUC controllers.
⚡ Technical Overview
-
Role: Control signal processing for CNC modules
-
Integration: Installed in CNC control cabinets, connected via backplane or ribbon cable
-
Compatibility: Works with FANUC αi and AiSV series amplifiers, spindle drives, and other interface boards
-
Design: Industrial-grade PCB for high-speed and continuous operation
🚀 Key Features
-
High-reliability design for industrial CNC use
-
Supports precise servo and spindle control
-
Modular and compact for easy replacement
-
Ensures fast and accurate signal processing
🏭 Applications
-
FANUC CNC systems (0i, 16i, 18i, 21i, 30i, etc.)
-
CNC machining centers and lathes
-
Automation systems requiring precise motion control
🧠 Simple Explanation
-
A16B-2203-0691 = “communication/control PCB”
-
It’s the board that helps the CNC brain talk to the motors and drives
-
Essentially a refined/revision version of 0690, often interchangeable depending on machine firmware
