🔧 A16B-2203-0811 – Description

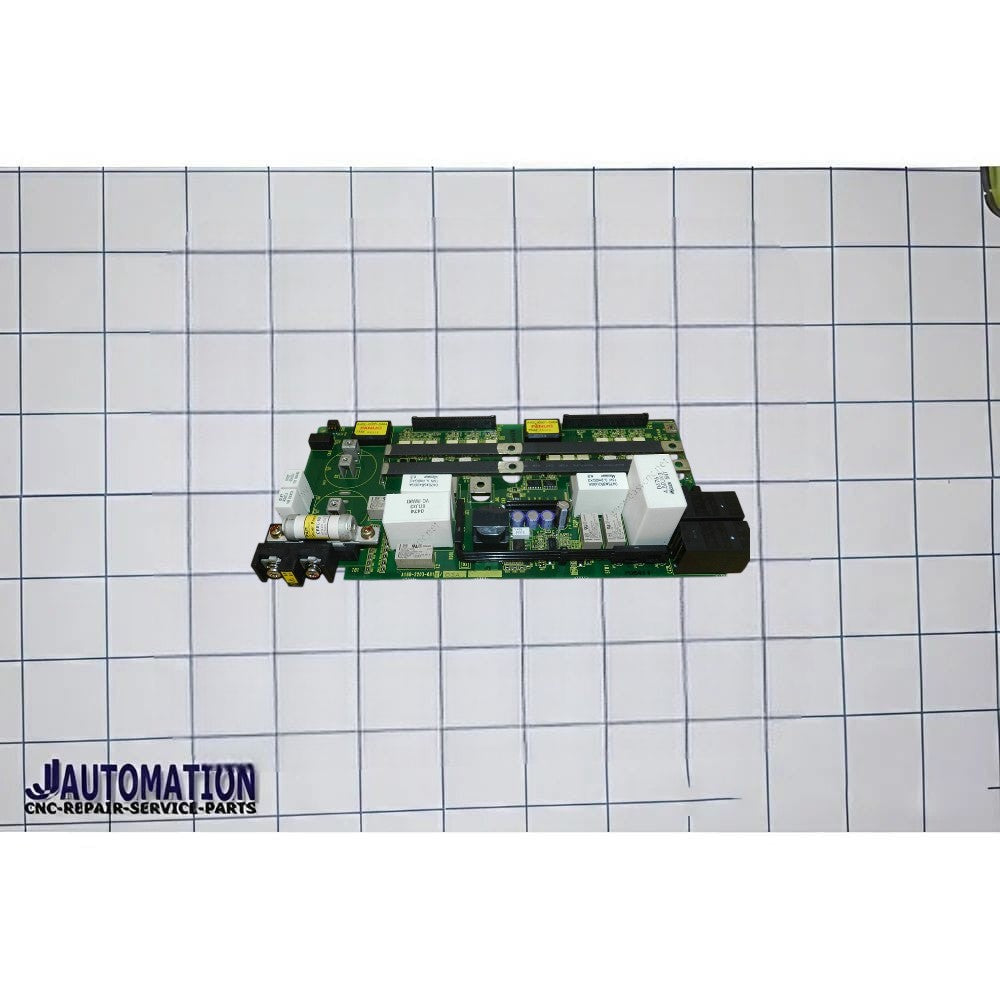

The part A16B-2203-0811 is a power/control PCB used in FANUC CNC servo amplifier systems, manufactured by FANUC.
📌 Official / Practical Description:
- Type: Power Board (PCB)
- Series: A16B-2203
- Category: Servo amplifier internal board
- Variants: Same family as 0810, 0812, 0813, 0814, 0815
👉 This specific model (0811) is one of the revision variants within the A16B-2203 power board series.
⚙️ Main Function:
This board is responsible for:
- ⚡ Power distribution inside servo amplifier
- 🔄 Supporting drive circuitry for servo motors
- 🔌 Handling internal signal routing and control
- 🔗 Assisting communication between CNC control and servo module
👉 In simple terms:
It is a power + control interface board inside a FANUC servo drive that helps run the machine axes smoothly.
🧩 Where It Is Used:
- Installed inside FANUC α / αi servo amplifiers
- Used in:
- CNC machining centers
- Turning centers
- Automated production machines
🔍 Important Notes:
- Not a standalone board → works only inside servo amplifier
-
0811 vs 0810 / 0815:
- Same base function
- Differences are usually revision, compatibility, or minor circuit changes
- Often interchangeable only if FANUC confirms compatibility
🛠️ Common Failure Symptoms:
- Servo amplifier alarm
- Axis not moving / jerky motion
- Power issues in drive
- CNC showing SV / amplifier faults
✅ Simple Summary:
A16B-2203-0811 = FANUC servo amplifier power PCB (internal board) used for controlling and supplying power to servo drive circuits.
