🔧 A16B-2203-0814 – Description

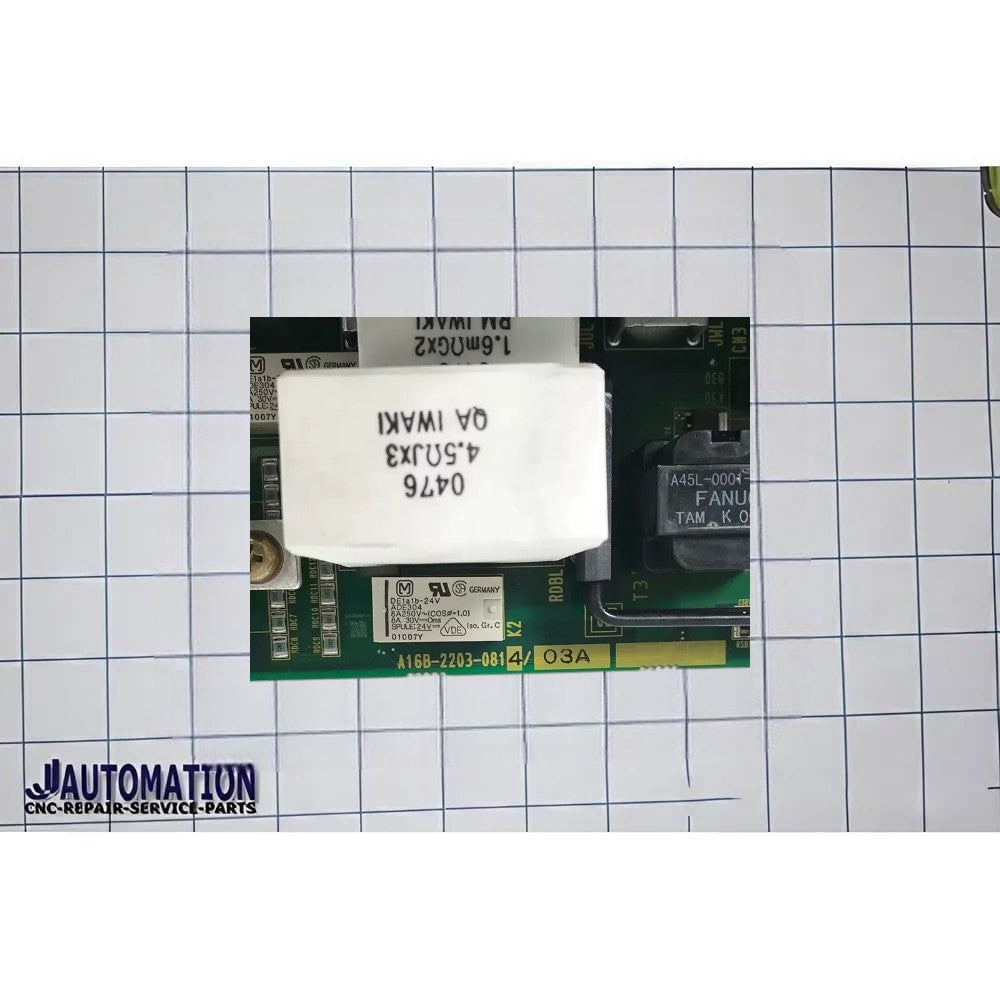

The part A16B-2203-0814 is a PCB (Printed Circuit Board) used in FANUC servo amplifier systems, manufactured by FANUC.
📌 Official / Practical Description:
- Type: PC Board / Servo Amplifier Board
- Series: A16B-2203
- Category: Internal servo amplifier PCB
- Variants: Same family as 0810, 0811, 0812, 0813, 0815
👉 It is commonly identified as a servo amplifier board (servo amp PCB) used in CNC drive systems.
⚙️ Main Function:
This board performs critical functions inside the servo amplifier:
- ⚡ Power distribution within the drive
- 🔄 Supports servo motor drive circuits
- 🔌 Handles internal electrical connections and signal routing
- 🔗 Interfaces between CNC controller and servo amplifier
👉 Simple explanation:
It is a power + control board that enables the servo amplifier to run CNC machine axes properly.
🧩 Where It Is Used:
- Installed inside FANUC α / αi servo amplifiers
- Used in:
- CNC machining centers
- CNC lathes
- Industrial automation / robotic systems
🔍 Technical Notes:
- Classified as a PCB module in FANUC systems
- Some versions (e.g., /03A) are revision updates with minor circuit changes
- Same base board family as:
- 0810
- 0811
- 0812
- 0813
- 0815
👉 Difference between these numbers = revision / compatibility version, not major function change.
🛠️ Common Failure Symptoms:
If this board is faulty, you may notice:
- Servo amplifier alarms (SV alarms)
- Axis not moving or unstable
- Drive not powering ON properly
- Intermittent CNC stoppage
✅ Simple Summary:
A16B-2203-0814 = FANUC servo amplifier PCB (power + drive board) used internally to control and supply power for servo motor operation.
