Description
๐ A16Bโ2203โ0816 โ Description

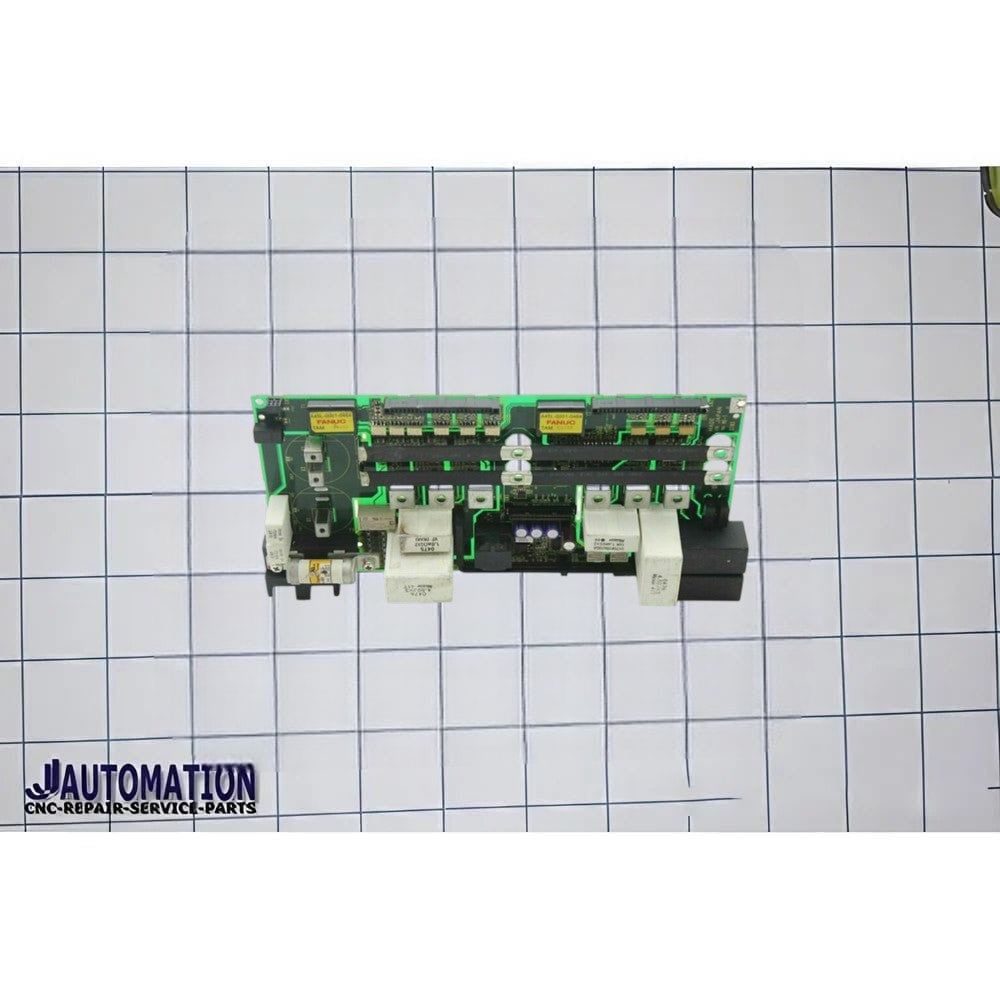

The part A16Bโ2203โ0816 is a Printed Circuit Board (PCB) used in FANUC CNC servo amplifier and control systems. Specifically, itโs classified as a power circuit board โ one of the internal boards that handles power distribution and related drive functions in a FANUC servo or control module.
๐ This board sits inside a larger drive or amplifier unit (such as a FANUC servo drive / amplifier) and supports the internal power/drive circuitry required for accurate motion control.
๐งฉ What This Board Does
- Power PCB: Provides internal power distribution for the drive or controller
- Part of FANUC internal electronics: Typically installed in servo amplifier modules or related power/control assemblies
- Function: Helps manage and route power to internal circuits for reliable amplifier performance
In short:
A16Bโ2203โ0816 = power circuit board for FANUC servo drive/control unit โ a PCB that ensures stable electrical power to key components within the drive.
๐ How It Fits In
FANUC uses the A16Bโ2203 series for a variety of internal PCBs across servo amplifiers and controller assemblies. Models in this series like 0810โ0815 are known variants of power boards for servo drives; 0816 is another variant in that same family with similar role and compatibility patterns (depending on exact amplifier model).
๐ These boards are not standalone units โ they are components inside a larger module such as a servo amplifier (e.g., A06Bโ6127 series). They typically cannot power a machine by themselves.
๐ ๏ธ When This Board Is Relevant
This PCB is relevant when:
- A servo amplifier or drive shows intermittent faults, power instability, or drive alarms
- A CNC machine has SV alarms indicating internal drive errors
- Repairing or refurbishing a FANUC servo amplifier
- Troubleshooting internal electronic faults in the drive module
Repair or replacement of this board can often resolve such internal drive issues.
๐ Notes on Service and Availability
- These boards are often available as new, refurbished, or repaired units from thirdโparty suppliers.
- Many vendors (like the one listed above) offer repair or overhaul services for this board and provide warranty/testing services.
โ Summary
A16Bโ2203โ0816 is a FANUC power PCB โ an internal circuit board used inside servo amplifiers or related control modules to manage electrical power distribution and support drive operation. Itโs part of the larger A16Bโ2203 series of PCBs used across FANUC drives and controls.
