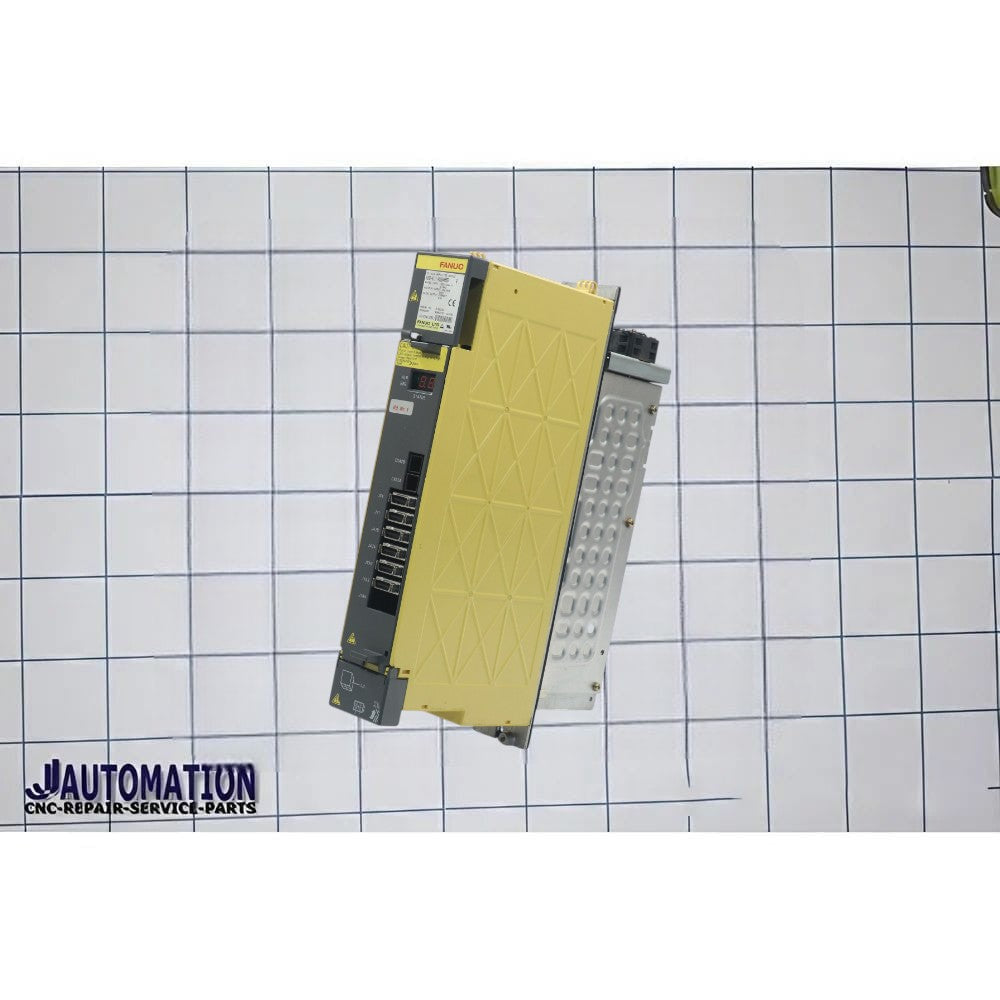

🔧 FANUC A06B-6111-C006 – Full Description
The A06B-6111-C006 is a servo amplifier module from FANUC, designed to control medium-power servo motors in CNC machines and industrial automation systems.
📌 Basic Identification
- Part Number: A06B-6111-C006
- Type: Servo Amplifier / Servo Drive Module
- Series: A06B-6111 (Compact αi series servo drives)
- Interface: Standard FANUC servo control interface
⚙️ Function
This module serves as the power and control unit for a servo motor, providing:
- 🌀 Precise position control for CNC axes
- ⚡ Moderate torque supply for servo motors
- 🔄 Acceleration and deceleration control
- 🎯 Closed-loop feedback via encoder signals
Converts electrical input into controlled rotary motion for precise machine movements.
⚡ Technical Specifications
- Power Class: Medium power servo drive
- Input Voltage: Typically 200–240 VAC
- Output Current: Suitable for medium servo motors
- Cooling: Forced air cooling (fan-assisted)
- Communication: FANUC serial or analog servo interface
🧩 Key Features
- ⚙️ Compact modular design for easy integration
- 🔗 Fully compatible with FANUC CNC systems
- 🎯 Accurate motion control for CNC axes
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- CNC milling machines and lathes
- Machining centers
- Automation systems requiring medium-power servo control
🔧 Internal Construction
The module contains:
- Power PCB for delivering current to the servo motor
- Control PCB for processing commands from the CNC controller
- IGBT modules for high-current switching
- Cooling system (fan + heat sink)
⚠️ Serviced as a complete module, not individual boards in field service.
🚨 Common Fault Symptoms
Typical indications of a faulty C006:
- Servo motor does not move
- ALM / SERVO alarms on CNC controller
- Overcurrent or overload trips
- Jerky or unstable axis motion
📊 Position in FANUC Range (6111 Series)
| Model | Power |
|---|---|
| C002 | Low power servo amplifier |
| C006 | Medium power servo amplifier |
| C011+ | Higher power servo drives |
C006 = medium-power compact servo drive in the 6111 series
✅ Summary
A06B-6111-C006
➡️ FANUC αi series compact servo amplifier
➡️ Designed for medium-power servo motors
➡️ Compact, reliable solution for precise CNC axis control
