🔧 FANUC A06B-6111-C015 – Full Description

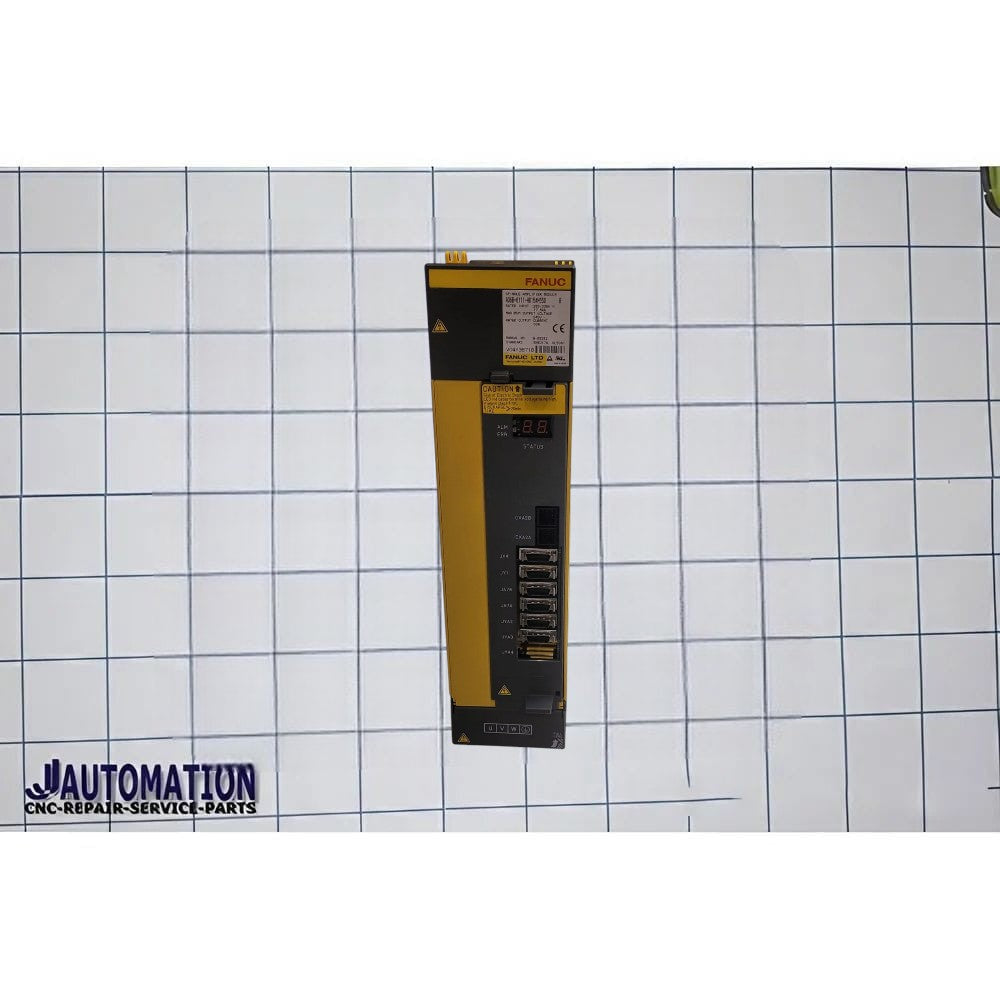

The A06B-6111-C015 is a high-power servo amplifier module from FANUC, designed to control large servo motors used in CNC machine axes and industrial automation systems.
📌 Basic Identification
- Part Number: A06B-6111-C015
- Type: Servo Amplifier / Servo Drive
- Series: A06B-6111 (αi series compact servo amplifiers)
- Application: CNC axis control (X, Y, Z, etc.)
⚙️ Function
This module acts as the power and control unit for servo motors, providing:
- 🌀 Accurate position and speed control
- ⚡ High torque output for heavy axis movement
- 🔄 Smooth acceleration & deceleration
- 🎯 Closed-loop control using encoder feedback
👉 In simple terms:
It drives CNC axes with high precision and high power.
⚡ Technical Overview
- Power Class: ~15 kW (servo class equivalent)
- Input Voltage: Typically 200–240 VAC
- Output Current: Very high current capacity
- Cooling: Forced air cooling (fan + heat sink)
- Communication: FANUC serial servo interface (FSSB)
🧩 Key Features
- ⚙️ Compact yet powerful design
- 🔗 Fully compatible with FANUC CNC controllers
- 🎯 High accuracy and stability in axis movement
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- CNC machining centers
- CNC lathes
- Heavy-duty milling machines
- Applications requiring high torque and large servo motors
🔧 Internal Construction
Inside the module:
- Power PCB (A16B-2203 series)
- Control PCB (A20B series)
- IGBT modules for high-power switching
- Cooling system (fan + heat sink)
⚠️ Typically serviced as a complete module, not individual board-level repair.
🚨 Common Fault Symptoms
If faulty, typical issues include:
- Axis not moving
- SERVO / SV / ALM errors on CNC
- Overcurrent or overload trips
- Jerky or unstable axis motion
- Drive alarm LEDs ON
📊 Position in FANUC Range (6111 C-Series)
| Model | Power Level |
|---|---|
| C002 | Low power |
| C006 | Medium power |
| C011 | High power |
| C015 | Very high power |
👉 C015 = higher-capacity servo amplifier for heavy axis loads
🔄 Variants
Common suffix versions:
- A06B-6111-C015#H550 / #H580
➡️ Minor firmware/interface differences.
✅ Summary
A06B-6111-C015
➡️ FANUC αi series servo amplifier
➡️ Designed for ~15 kW class servo motors
➡️ Used in heavy-duty CNC axis control applications
