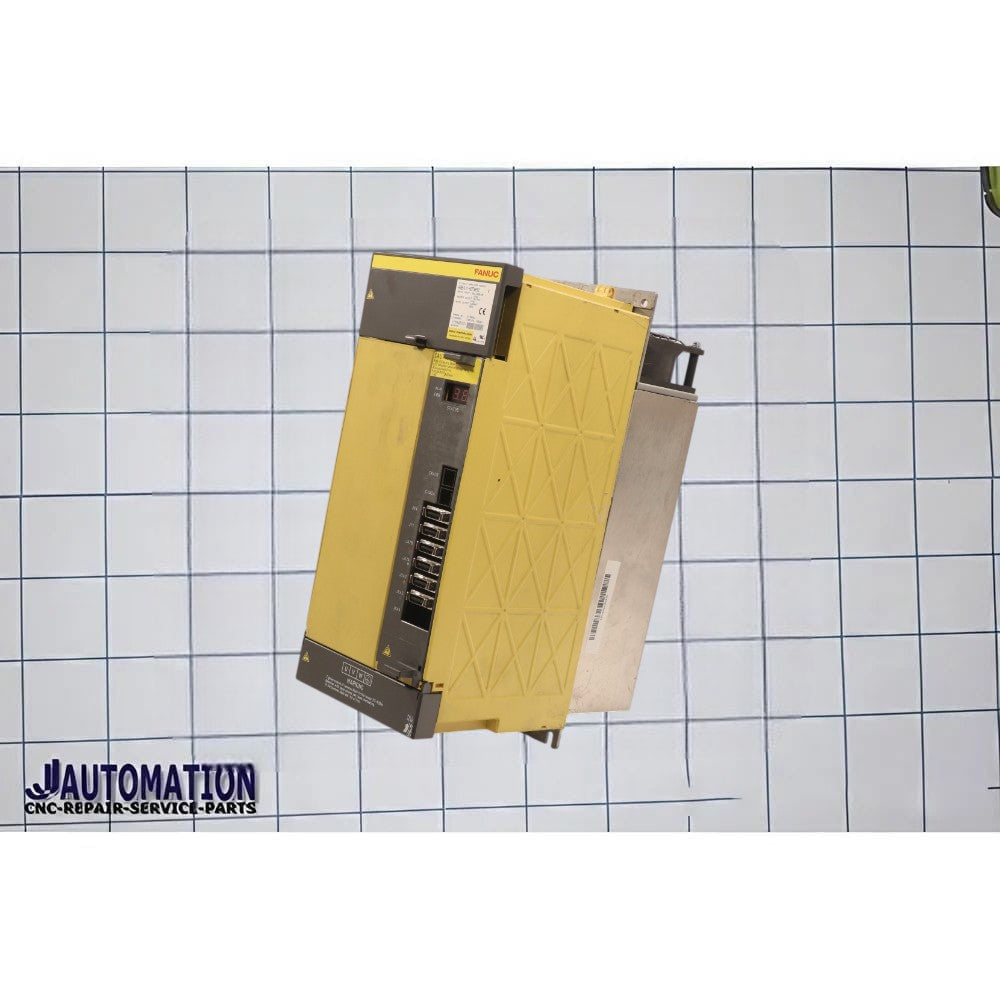

🔧 FANUC A06B-6111-C037 – Full Description
The A06B-6111-C037 is a very high-power servo amplifier module from FANUC, designed to control large-capacity servo motors used in heavy-duty CNC machine axes and automation systems.
📌 Basic Identification
- Part Number: A06B-6111-C037
- Type: Servo Amplifier / Servo Drive
- Series: A06B-6111 (αi series compact servo amplifiers)
- Application: CNC axis control (heavy-duty axes)
⚙️ Function
This module serves as the drive unit for servo motors, providing:
- 🌀 High-precision position & speed control
- ⚡ Very high torque output for large axis loads
- 🔄 Smooth acceleration & deceleration
- 🎯 Closed-loop feedback via encoder system
👉 In simple terms:
It drives large CNC axes with extreme power and precision.
⚡ Technical Overview
- Power Class: ~37 kW (servo class equivalent)
- Input Voltage: ~283–339 V DC (typical DC bus range)
- Output Voltage: 200–240 VAC to motor
- Output Current: ~37 A (reference class)
- Cooling: Forced air (fan cooling)
- Communication: Optical/FSSB interface
🧩 Key Features
- ⚙️ Compact high-power design (relative to older large drives)
- 🔗 Full compatibility with FANUC CNC controllers
- 🎯 Stable performance under heavy load conditions
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- Large CNC machining centers
- Gantry and portal-type machines
- Heavy-duty milling and boring machines
- Industrial automation requiring very high torque axis movement
🔧 Internal Construction
Typical internal components:
- Power PCB (A16B-2203 series)
- Control PCB (A20B series)
- High-power IGBT modules
- Heavy-duty cooling system
⚠️ Typically repaired as a complete module, not board-level in field.
🚨 Common Fault Symptoms
If faulty, you may see:
- Axis not moving
- SERVO / SV / ALM alarms
- Overcurrent or overload trips
- Axis stopping under heavy load
- Drive fault LED ON
📊 Position in FANUC Range (6111 C-Series)
| Model | Power Level |
|---|---|
| C002 | Low power |
| C006 | Medium power |
| C011 | High power |
| C015 | Very high power |
| C022 | Ultra high power |
| C026 | Extreme high power |
| C030 | Maximum class |
| C037 | Ultra / extreme high power (top tier) |
👉 C037 = one of the highest-capacity servo amplifiers in the 6111 compact series
🔄 Variants
Common versions:
- A06B-6111-C037#H550
- #H570 / #H580
➡️ These indicate firmware or revision differences, not major hardware changes.
✅ Summary
A06B-6111-C037
➡️ FANUC αi series servo amplifier
➡️ Designed for ~37 kW class servo motors
➡️ Used in very heavy-duty CNC axis applications
➡️ One of the top-end models in 6111 C-series
