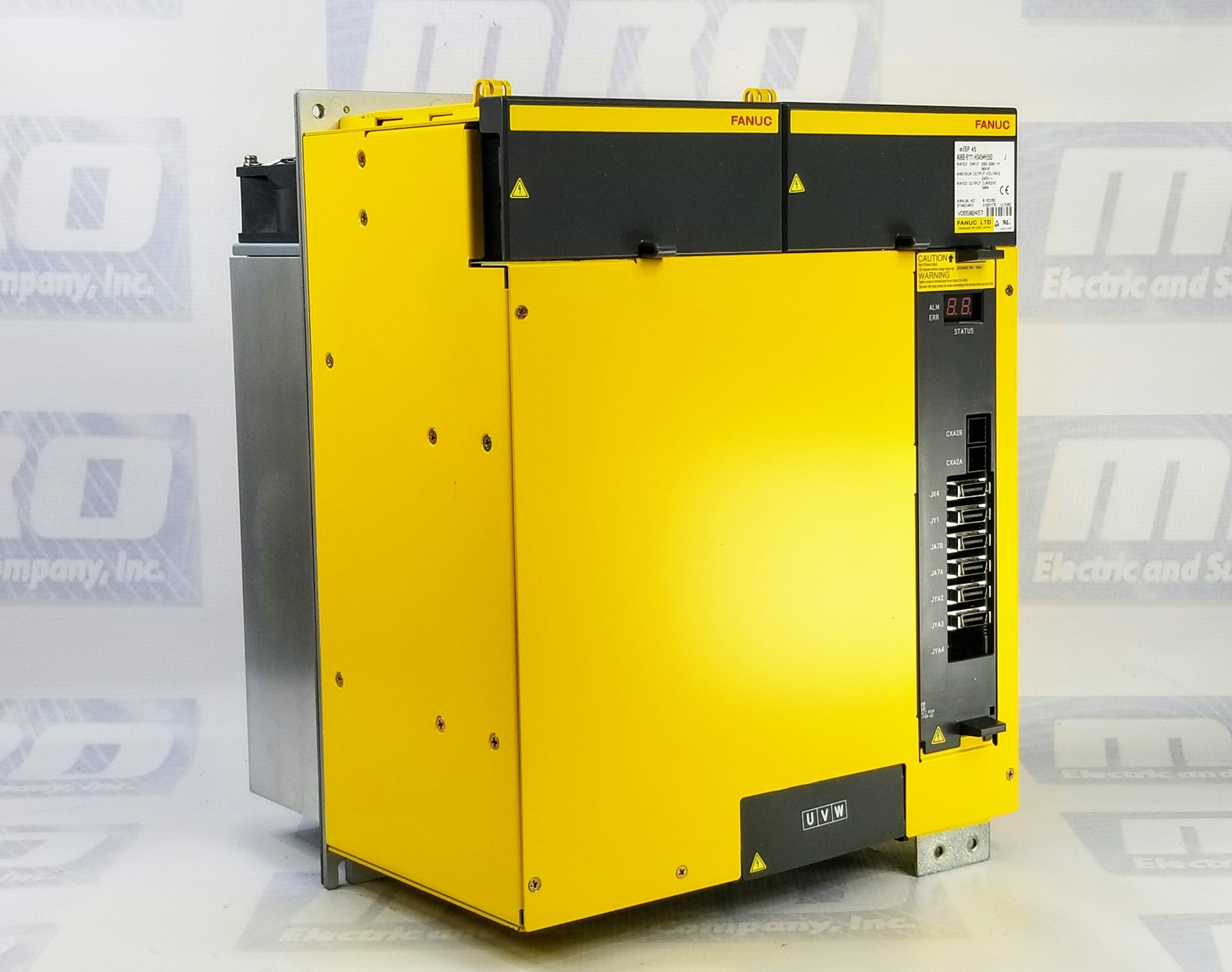

🔧 FANUC A06B-6111-C045 – Full Description
The A06B-6111-C045 is a top-tier high-power servo amplifier module from FANUC, designed for controlling very large servo motors in heavy-duty CNC machines and industrial automation systems.
📌 Basic Identification
- Part Number: A06B-6111-C045
- Type: Servo Amplifier / Servo Drive
- Series: A06B-6111 (αi series compact servo amplifiers)
- Application: CNC axis control (heavy-duty axes)
⚙️ Function
This module works as the drive unit for servo motors, providing:
- 🌀 Ultra-precise position and speed control
- ⚡ Extremely high torque output for heavy axis loads
- 🔄 Smooth acceleration & deceleration
- 🎯 Closed-loop control using encoder feedback
👉 In simple terms:
It drives large CNC axes with maximum power and precision.
⚡ Technical Overview
- Power Class: ~45 kW (servo class equivalent)
- Input Voltage: Typically 200–240 VAC (via DC bus system)
- Output Current: Extremely high current capacity
- Cooling: Heavy-duty forced air cooling
- Communication: FANUC serial servo interface (FSSB)
🧩 Key Features
- ⚙️ Compact high-power design (relative to older large drives)
- 🔗 Full integration with FANUC CNC systems
- 🎯 Stable performance under extreme load conditions
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- Large CNC machining centers
- Gantry / portal-type machines
- Heavy-duty milling and boring machines
- Industrial systems requiring very high torque axis movement
🔧 Internal Construction
Typical internal components:
- Power PCB (A16B-2203 series)
- Control PCB (A20B series)
- High-power IGBT modules
- Heavy-duty cooling system
⚠️ Typically serviced as a complete module, not board-level repair.
🚨 Common Fault Symptoms
If faulty, you may see:
- Axis not moving
- SERVO / SV / ALM alarms
- Overcurrent or overload trips
- Axis stopping under heavy load
- Drive fault LED ON
📊 Position in FANUC Range (6111 C-Series)
| Model | Power Level |
|---|---|
| C002 | Low power |
| C006 | Medium power |
| C011 | High power |
| C015 | Very high power |
| C022 | Ultra high power |
| C026 | Extreme high power |
| C030 | Maximum class |
| C037 | Ultra class |
| C045 | Top-end / maximum capacity |
👉 C045 = one of the highest-capacity servo amplifiers in the 6111 compact series
🔄 Variants
Common versions:
- A06B-6111-C045#H550 / #H580
➡️ These indicate software / revision differences, not major hardware changes.
✅ Summary
A06B-6111-C045
➡️ FANUC αi series servo amplifier
➡️ Designed for ~45 kW class servo motors
➡️ Used in extreme heavy-duty CNC axis applications
➡️ One of the highest power modules in 6111 C-series
