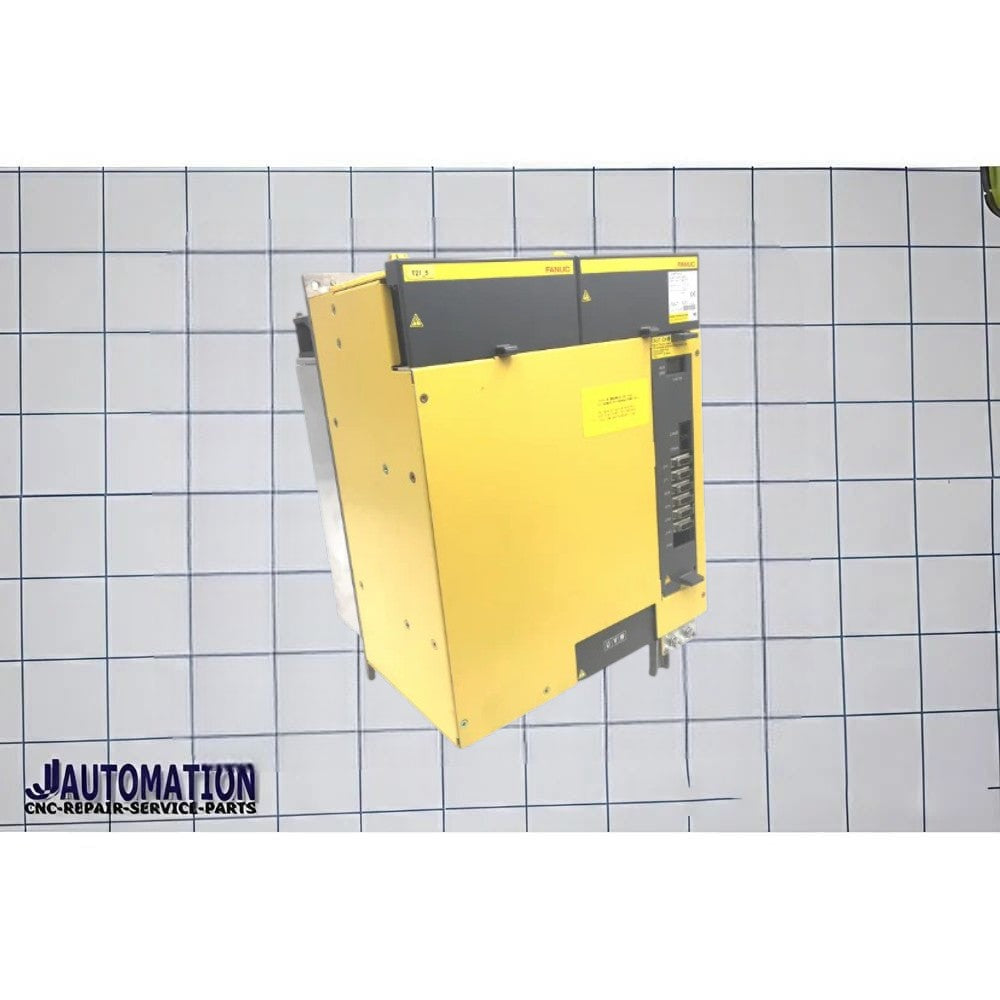

🔧 FANUC A06B-6111-C055 – Full Description
The A06B-6111-C055 is an ultra high-power servo amplifier module from FANUC, designed to control very large servo motors used in extreme heavy-duty CNC axis applications.
📌 Basic Identification
- Part Number: A06B-6111-C055
- Type: Servo Amplifier / Servo Drive
- Series: A06B-6111 (αi series compact servo amplifiers)
- Application: CNC axis control (large / heavy axes)
⚙️ Function
This module acts as the main drive unit for servo motors, providing:
- 🌀 Ultra-precise position & speed control
- ⚡ Maximum torque output for heavy axis loads
- 🔄 Smooth acceleration & deceleration
- 🎯 Closed-loop feedback via encoder system
👉 In simple terms:
It drives very large CNC axes with maximum power and precision.
⚡ Technical Overview
- Power Class: ~55 kW (servo class equivalent)
- Input Voltage: Typically 200–240 VAC (via DC bus system)
- Output Current: Extremely high current capacity
- Cooling: Heavy-duty forced air cooling
- Communication: FANUC serial servo interface (FSSB)
🧩 Key Features
- ⚙️ Top-end compact servo amplifier in 6111 series
- 🔗 Fully compatible with FANUC CNC systems
- 🎯 Stable operation under extreme mechanical loads
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- Large CNC machining centers
- Gantry / portal-type machines
- Heavy-duty boring & milling machines
- Industrial systems requiring very high torque axis movement
🔧 Internal Construction
Typical internal components:
- Power PCB (A16B-2203 series)
- Control PCB (A20B series)
- High-power IGBT modules
- Heavy-duty cooling system
⚠️ Typically repaired as a complete module, not board-level in field.
🚨 Common Fault Symptoms
If faulty, you may observe:
- Axis not moving
- SERVO / SV / ALM alarms
- Overcurrent or overload trips
- Axis stopping under load
- Drive fault LED ON
📊 Position in FANUC Range (6111 C-Series)
| Model | Power Level |
|---|---|
| C002 | Low power |
| C006 | Medium power |
| C011 | High power |
| C015 | Very high power |
| C022 | Ultra high power |
| C026 | Extreme high power |
| C030 | Maximum class |
| C037 | Ultra class |
| C045 | Top-end |
| C055 | Maximum / highest capacity |
👉 C055 = highest power servo amplifier in 6111 compact series
🔄 Important Note
- The C055 is comparable in power class to spindle modules like SPM-55i (H055), but:
- C-series → Servo axis control
- H-series → Spindle control
✅ Summary
A06B-6111-C055
➡️ FANUC αi series servo amplifier (highest capacity)
➡️ Designed for ~55 kW class servo motors
➡️ Used in extreme heavy-duty CNC axis applications
➡️ Top model in 6111 C-series
