🔧 FANUC A06B-6111-H006 – Description

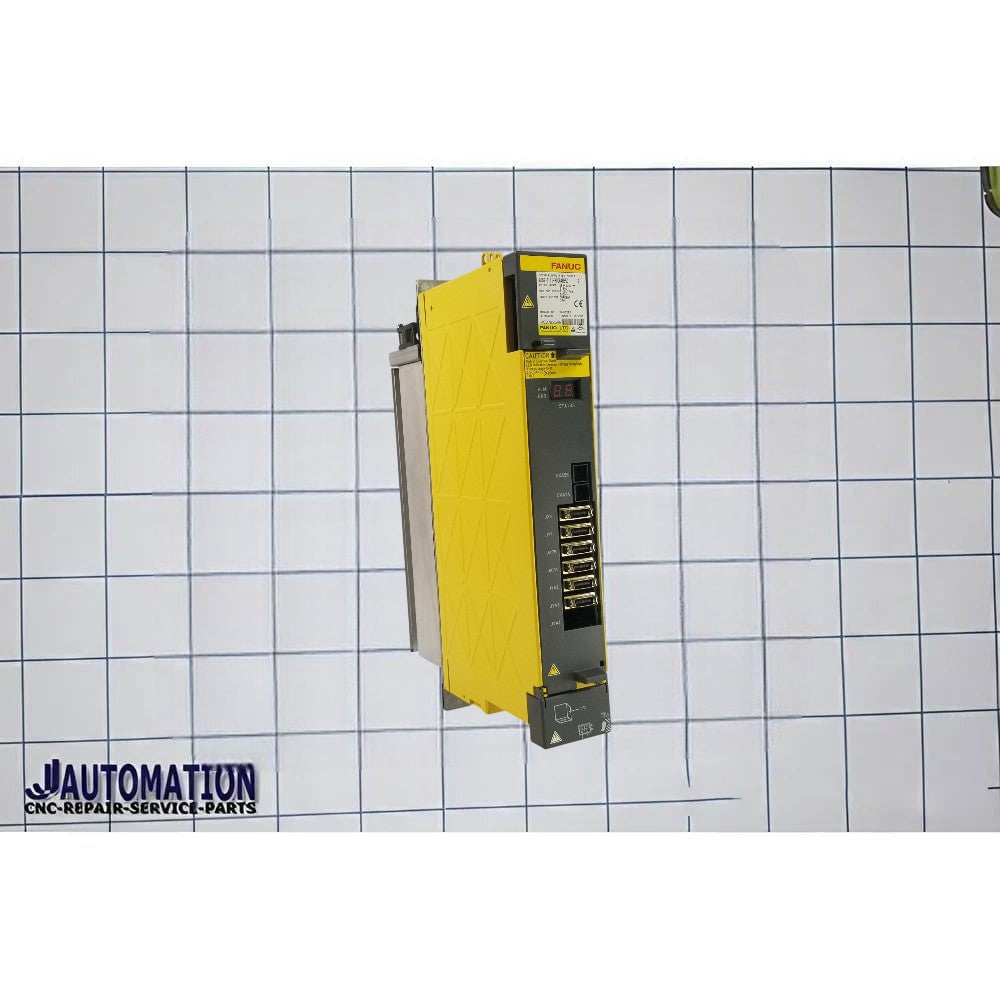

The A06B-6111-H006 is a FANUC spindle amplifier module from the Alpha i (αi) series, specifically designed to control the main spindle motor in CNC machines.
📌 Key Details
-
Type: Spindle Amplifier / Spindle Drive
-
Series: A06B-6111 (FANUC Alpha i)
-
Model: SPM-5.5i (aiSP-5.5)
-
Application: Controls spindle motor (rotation of tool/workpiece)
-
Input Power: ~200–240 VAC, ~6.8 kW
-
Output: ~27 A spindle drive capacity
👉 Common variants include:
- A06B-6111-H006#H550
-
A06B-6111-H006#H570
(these are software/revision differences, not major hardware changes)
⚙️ What It Does
This module is responsible for spindle motion control, which is different from axis servo control:
- 🌀 Controls spindle speed (RPM)
- ⚡ Provides torque for cutting operations
- 🔄 Manages acceleration/deceleration
- 🎯 Maintains stable rotation using feedback sensors
👉 In simple terms:
It is the power + control unit for the spindle motor — the part that actually rotates the cutting tool or workpiece.
🧩 Where It Is Used
Installed in:
- CNC machining centers
- CNC lathes / turning centers
- Milling machines
- Any FANUC-controlled system with Alpha i spindle motors
It works together with:
- CNC controller (Fanuc 0i / 16i / 18i / 21i etc.)
- Spindle motor (e.g., ai series motors)
🔧 Internal Components
Inside this amplifier, typical boards include:
-
Power PCB: e.g., A16B-2203-0651
-
Control PCB: e.g., A20B-2100-0800
⚠️ These boards are usually not sold separately — the full module is replaced or repaired.
🚨 Common Fault Symptoms
If this spindle amplifier fails, you may see:
- Spindle not rotating
- Spindle alarm (SP / ALM codes on CNC)
- Speed fluctuation or unstable RPM
- CNC alarm like “Spindle Drive Fault” or “Serial Link Error”
🔄 Repair & Replacement
- Available as new / refurbished / exchange units
- Repair turnaround typically 3–5 days depending on fault
- Core exchange is common in the market
✅ Summary
A06B-6111-H006
➡️ FANUC Alpha i spindle amplifier (SPM-5.5i)
➡️ Drives and controls the main spindle motor
➡️ Handles speed, torque, and rotation stability in CNC machines
