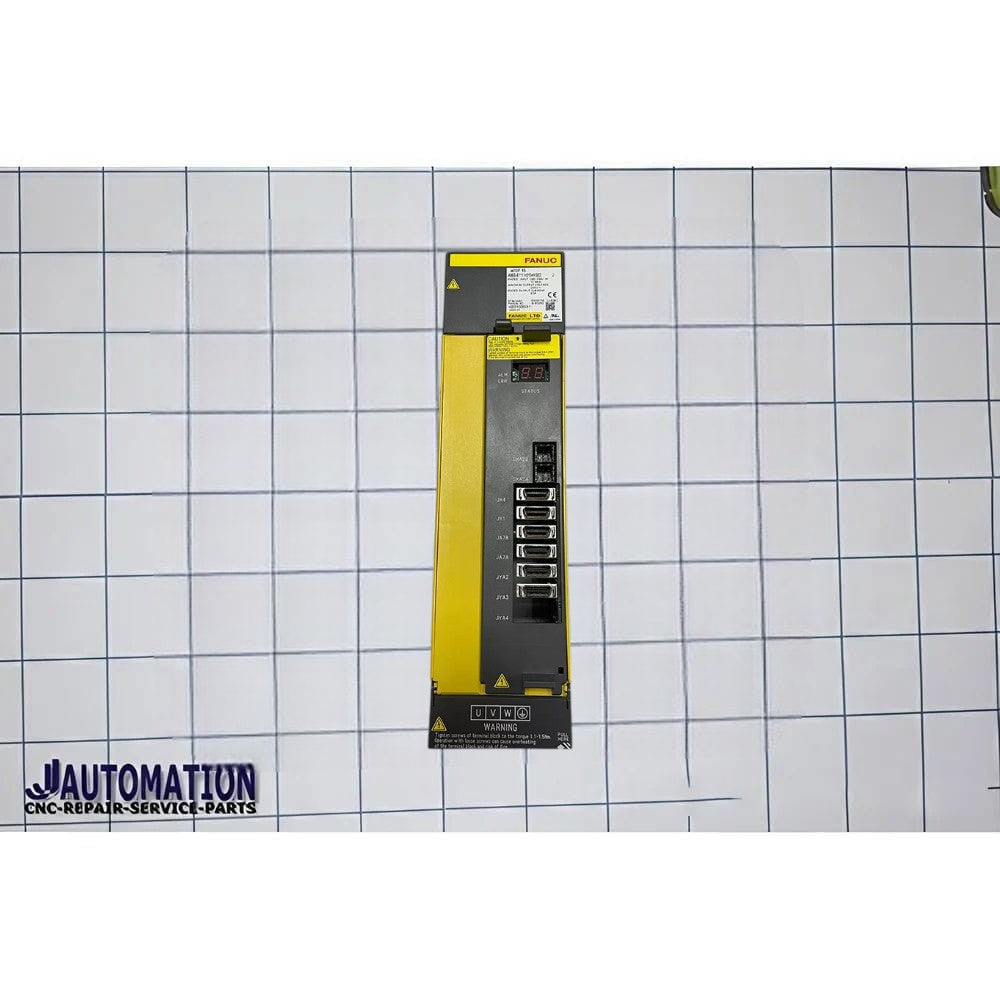

🔧 FANUC A06B-6111-H015 – Full Description
The A06B-6111-H015 is a high-capacity spindle amplifier module from FANUC’s Alpha i (αi) series, designed to control the main spindle motor in CNC machines.
📌 Basic Identification
-
Part Number: A06B-6111-H015
-
Type: Spindle Amplifier / Spindle Drive
-
Series: Alpha i (αiSP series)
-
Model Name: SPM-15i (aiSP-15)
-
Application: CNC spindle motor control
⚙️ Function & Working
This module acts as the power and control unit for the spindle motor, which is responsible for rotating the cutting tool or workpiece.
It performs:
- 🌀 Spindle speed control (RPM)
- ⚡ Torque control for cutting operations
- 🔄 Acceleration & deceleration management
- 🎯 Closed-loop feedback control using spindle encoder signals
👉 Simply put:
It converts electrical input power into precisely controlled rotational motion for the spindle.
⚡ Technical Overview
-
Power Class: High power (SPM-15i category)
-
Input Voltage: Typically 200–240 VAC (machine dependent)
-
Output Capacity: ~15 kW class spindle drive
-
Control Interface: Digital interface with FANUC CNC (via FSSB / serial communication)
-
Cooling: Built-in cooling system (fan/heat sink)
🧩 Typical Applications
Used in:
- CNC machining centers
- CNC turning centers (lathes)
- Heavy-duty milling machines
- High-load industrial machining systems
This model is suited for heavy cutting and high torque applications.
🔧 Internal Construction
Inside the module are multiple key assemblies:
-
Power PCB (A16B-2203 series) → handles power conversion
-
Control PCB (A20B-2100 series) → processes commands from CNC
-
IGBT power modules → switch high power efficiently
-
Cooling system → dissipates heat
⚠️ These components are integrated — usually the entire module is repaired or replaced, not individual boards in the field.
🚨 Common Fault Symptoms
When this amplifier has issues, machines may show:
- Spindle not rotating
- Spindle alarms (SP / ALM codes)
- Overcurrent / overvoltage alarms
- Unstable RPM or sudden stops
- CNC alarm like SPINDLE DRIVE FAULT
🔄 Variants
You may see suffixes like:
- A06B-6111-H015#H550
- #H553 / #H570
These indicate:
- Minor software or interface differences
- Not major hardware changes
📊 Position in FANUC Range
| Model |
Power Level |
| H002 |
Low (2.2 kW) |
| H006 |
Medium (5.5 kW) |
| H011 |
High (11 kW) |
| H015 |
Very High (15 kW) |
👉 H015 = one of the highest power spindle amplifiers in this series
✅ Summary
A06B-6111-H015 is a FANUC Alpha i SPM-15i spindle amplifier used to:
✔️ Drive high-power spindle motors
✔️ Control speed, torque, and rotation
✔️ Enable heavy-duty CNC machining operations
