🔧 FANUC A06B-6111-H022 – Description

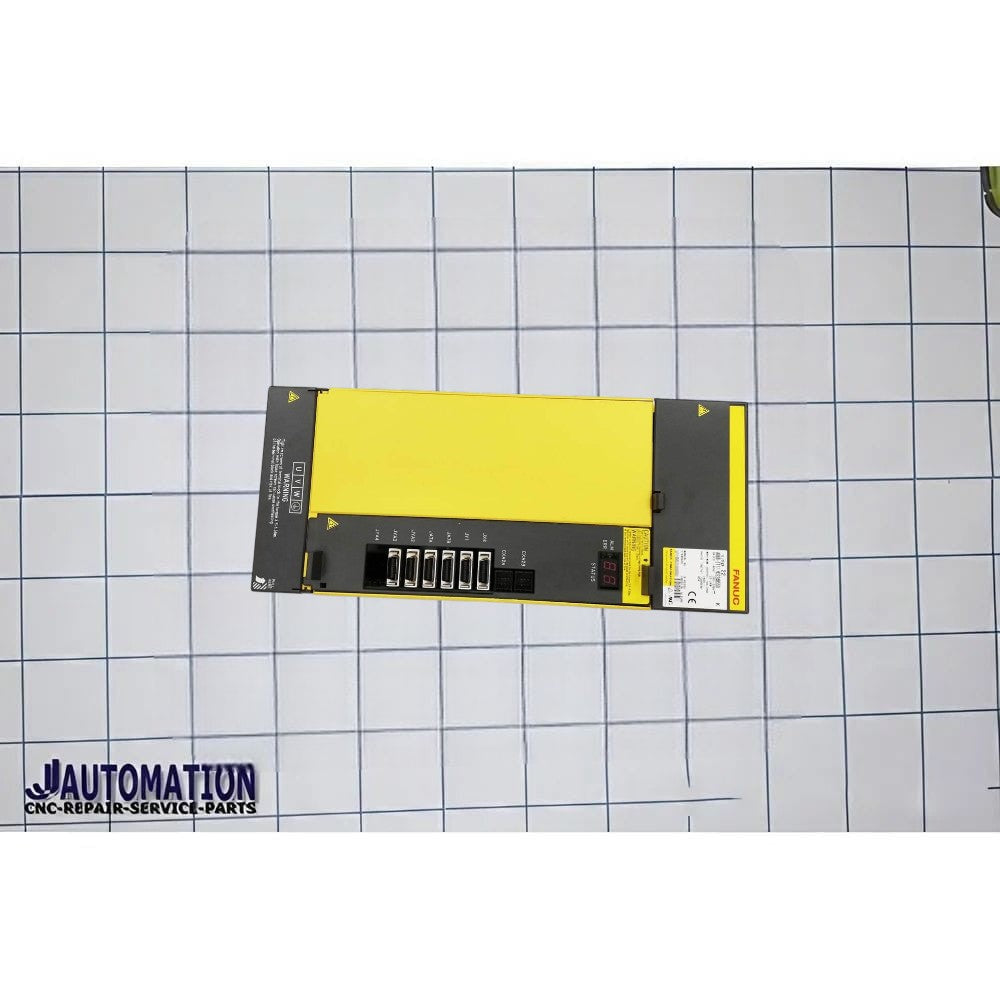

The A06B-6111-H022 is a very high-power spindle amplifier module from FANUC’s Alpha i (αi) series, designed to drive and control large spindle motors in heavy-duty CNC machines.
📌 Basic Identification
-
Part Number: A06B-6111-H022
-
Type: Spindle Amplifier / Spindle Drive
-
Series: Alpha i (αiSP series)
-
Model: SPM-22i (aiSP-22)
-
Application: High-power CNC spindle motor control
⚙️ Function
This module is responsible for controlling the spindle motor, which rotates the cutting tool or workpiece.
It performs:
- 🌀 Precise spindle speed (RPM) control
- ⚡ High torque output for heavy cutting
- 🔄 Smooth acceleration & deceleration
- 🎯 Closed-loop feedback control (encoder-based)
👉 In simple terms:
It is the main power + control unit for high-power spindle rotation.
⚡ Technical Overview
-
Power Class: ~22 kW (SPM-22i category)
-
Input Voltage: Typically 200–240 VAC
-
Output Current: High current capacity for large spindle motors
-
Interface: Communicates with CNC via FANUC serial system (FSSB)
-
Cooling: Heavy-duty cooling (fan + heat sink system)
🧩 Typical Applications
Used in:
- Heavy-duty CNC machining centers
- Large turning centers
- High-load milling operations
- Industrial machines requiring high torque and continuous cutting power
🔧 Internal Construction
Inside the module:
-
Power PCB (A16B-2203 series) → power conversion & distribution
-
Control PCB (A20B-2100 series) → communication & control logic
-
IGBT modules → handle high-power switching
-
Cooling system → heat dissipation
⚠️ These are integrated — usually repaired as a complete module, not board-by-board in the field.
🚨 Common Fault Symptoms
If this spindle amplifier fails, typical issues include:
- Spindle not rotating
- High-power alarms (SP / ALM errors)
- Overcurrent / overload trips
- Sudden spindle stop under load
- CNC message like SPINDLE DRIVE FAULT
📊 Position in FANUC Range
| Model |
Power Level |
| H002 |
2.2 kW |
| H006 |
5.5 kW |
| H011 |
11 kW |
| H015 |
15 kW |
| H022 |
22 kW (very high power) |
👉 H022 = used for large, high-load machining applications
🔄 Variants
You may find:
- A06B-6111-H022#H550
- #H553 / #H570
These indicate minor firmware/interface differences, not major hardware changes.
✅ Summary
A06B-6111-H022
➡️ FANUC Alpha i SPM-22i spindle amplifier
➡️ Designed for very high-power spindle motors (~22 kW)
➡️ Used in heavy-duty CNC machining with high torque requirements
