🔧 FANUC A06B-6111-H030 – Description

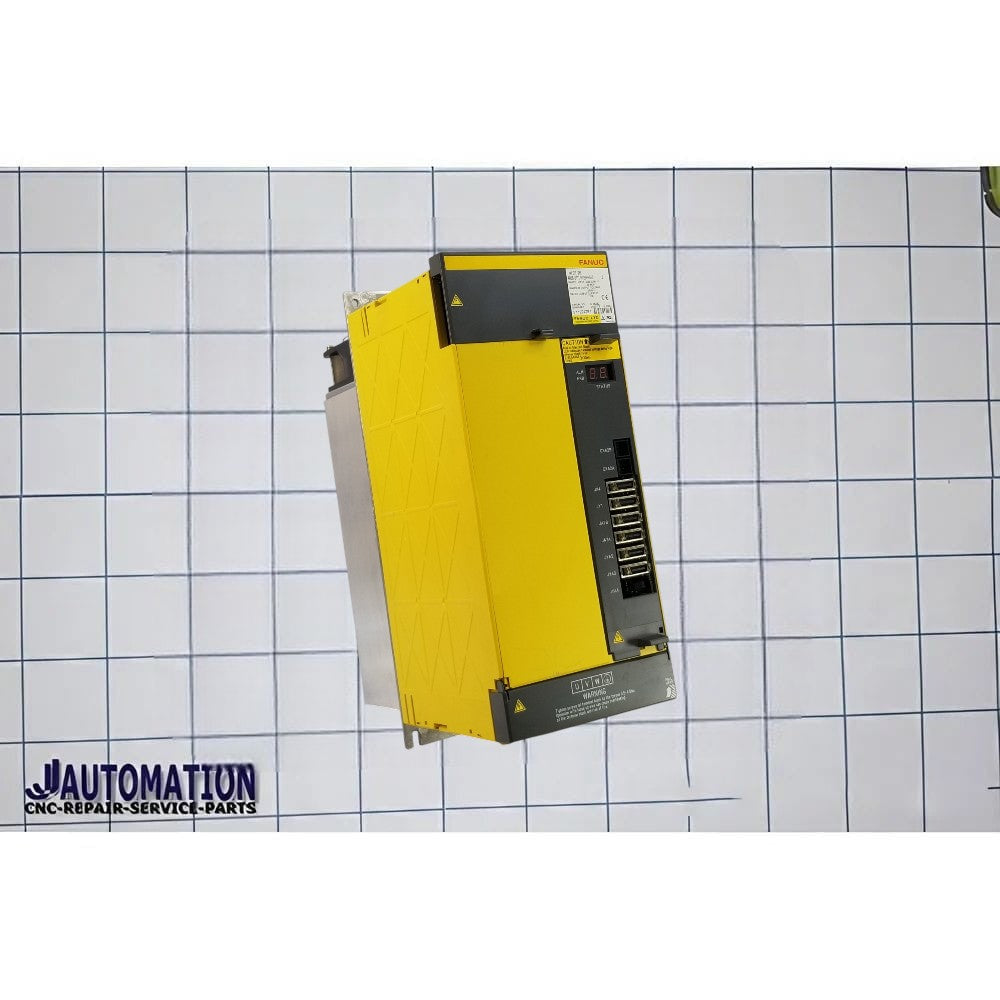

The A06B-6111-H030 is an ultra high-power spindle amplifier module from FANUC’s Alpha i (αi) series, designed to control very large spindle motors in heavy-duty CNC machines.
📌 Basic Identification
- Part Number: A06B-6111-H030
- Type: Spindle Amplifier / Spindle Drive
- Series: Alpha i (αiSP series)
- Model: SPM-30i (aiSP-30)
- Application: Ultra high-power CNC spindle motor control
⚙️ Function
This module acts as the main power and control unit for the spindle, performing:
- 🌀 Precise spindle speed (RPM) control
- ⚡ Very high torque output for heavy machining
- 🔄 Smooth acceleration & deceleration
- 🎯 Closed-loop control using encoder feedback
👉 In simple terms:
It drives the spindle motor with high power and precision, enabling heavy cutting operations.
⚡ Technical Overview
- Power Class: ~30 kW (SPM-30i category)
- Input Voltage: Typically 200–240 VAC
- Output Current: Very high current for large motors
- Interface: FANUC serial communication (FSSB)
- Cooling: Heavy-duty cooling system (fan + heat sink)
🧩 Typical Applications
Used in:
- Large CNC machining centers
- Heavy-duty milling machines
- Large turning centers
- Industrial systems requiring continuous high torque and power
🔧 Internal Construction
Inside the module:
- Power PCB: A16B-2203 series
- Control PCB: A20B-2100 series
- IGBT modules: High-power switching devices
- Cooling system: Ensures thermal stability under load
⚠️ Typically serviced as a complete unit, not individual boards.
🚨 Common Fault Symptoms
If this amplifier fails, typical issues include:
- Spindle not rotating
- High-load trips or overload alarms
- SP / ALM spindle errors on CNC
- Sudden stops during heavy machining
- Drive fault LEDs on amplifier
📊 Position in FANUC Range
| Model | Power Level |
|---|---|
| H002 | 2.2 kW |
| H006 | 5.5 kW |
| H011 | 11 kW |
| H015 | 15 kW |
| H022 | 22 kW |
| H026 | 26 kW |
| H030 | 30 kW (ultra high power) |
👉 H030 = one of the highest capacity spindle amplifiers in the αi series
🔄 Variants
Common versions:
- A06B-6111-H030#H550
- #H553 / #H570
These represent minor firmware/interface differences, not major hardware changes.
✅ Summary
A06B-6111-H030
➡️ FANUC Alpha i SPM-30i spindle amplifier
➡️ Designed for ~30 kW spindle motors
➡️ Used in heavy-duty CNC applications requiring maximum power and torque
