🔧 FANUC A06B-6111-H037 – Description

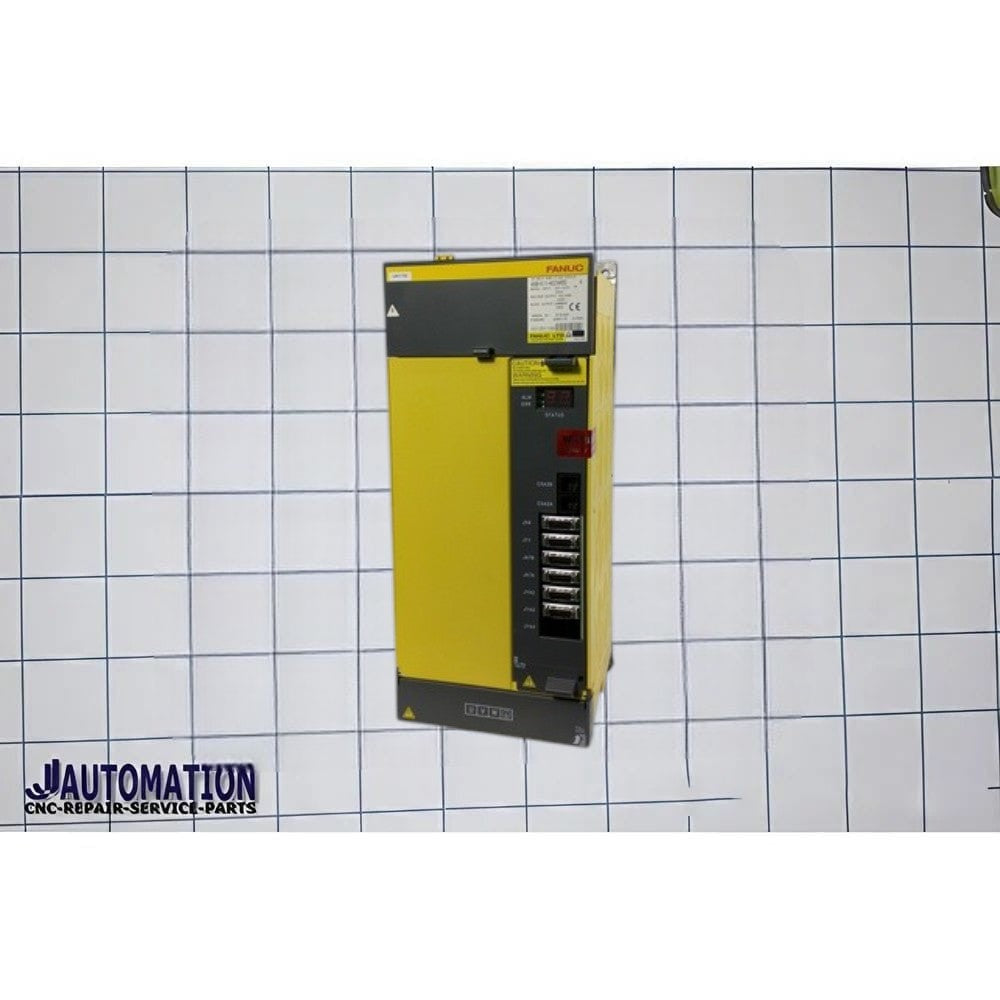

The A06B-6111-H037 is a very high-capacity spindle amplifier module from FANUC’s Alpha i (αi) series, designed to drive large industrial spindle motors in heavy-duty CNC machines.
📌 Basic Identification
- Part Number: A06B-6111-H037
- Type: Spindle Amplifier / Spindle Drive
- Series: Alpha i (αiSP series)
- Model: SPM-37i (aiSP-37)
- Application: Ultra high-power CNC spindle motor control
⚙️ Function
This module acts as the main power and control unit for the spindle, performing:
- 🌀 Precise spindle speed (RPM) control
- ⚡ Very high torque output for heavy machining loads
- 🔄 Controlled acceleration & deceleration
- 🎯 Closed-loop control using encoder feedback
👉 In simple terms:
It converts electrical power into high-torque, precisely controlled spindle rotation.
⚡ Technical Overview
- Power Class: ~37 kW (SPM-37i category)
- Input Voltage: Typically 200–240 VAC
- Output Current: Extremely high current capacity
- Interface: FANUC serial communication (FSSB)
- Cooling: Heavy-duty cooling system for continuous operation
🧩 Typical Applications
Used in:
- Large CNC machining centers
- Heavy-duty milling and boring machines
- Large turning centers
- Industrial applications requiring continuous high power and torque
🔧 Internal Construction
Inside the module:
- Power PCB: A16B-2203 series
- Control PCB: A20B-2100 series
- IGBT power modules: High-power switching devices
- Cooling system: Heat sink + forced air cooling
⚠️ Typically serviced as a complete unit, not individual boards in field repair.
🚨 Common Fault Symptoms
If this amplifier fails, common issues include:
- Spindle not rotating
- Overload / overcurrent alarms
- SP / ALM spindle errors on CNC
- Sudden stops during heavy cutting
- Drive fault LEDs on amplifier
📊 Position in FANUC Range
| Model | Power Level |
|---|---|
| H002 | 2.2 kW |
| H006 | 5.5 kW |
| H011 | 11 kW |
| H015 | 15 kW |
| H022 | 22 kW |
| H026 | 26 kW |
| H030 | 30 kW |
| H037 | 37 kW (very high power) |
👉 H037 = one of the highest power spindle amplifiers in the αi series
🔄 Variants
Common suffix versions:
- A06B-6111-H037#H550
- #H553 / #H570
These indicate minor firmware/interface differences.
✅ Summary
A06B-6111-H037
➡️ FANUC Alpha i SPM-37i spindle amplifier
➡️ Designed for ~37 kW spindle motors
➡️ Used in large, heavy-duty CNC machines requiring maximum torque and power
