Description
🔧 FANUC A06B-6111-H045 – Detailed Description

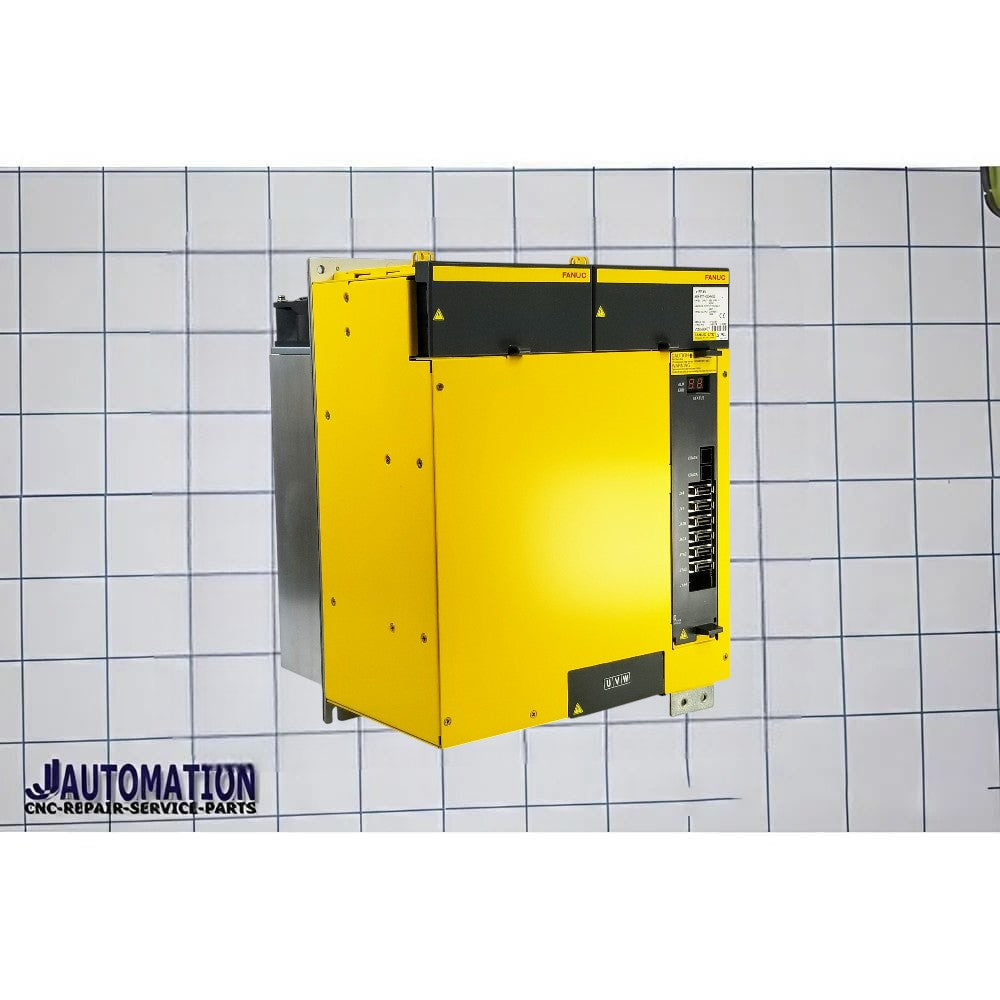

The A06B-6111-H045 is an ultra high-power spindle amplifier module from FANUC’s Alpha i (αiSP) series, designed to control very large spindle motors in heavy-duty CNC machines.
📌 Basic Identification
- Part Number: A06B-6111-H045
- Type: Spindle Amplifier / Spindle Drive
- Series: Alpha i (αiSP series)
- Model: SPM-45i (aiSP-45)
- Application: High-power spindle motor control
⚙️ Function & Working
This module acts as the main drive unit for the spindle motor, performing:
- 🌀 Spindle speed (RPM) control
- ⚡ Very high torque output for heavy cutting
- 🔄 Controlled acceleration and deceleration
- 🎯 Closed-loop feedback control (encoder-based)
👉 In simple terms:
It converts incoming electrical power into precise, high-torque rotational motion for the spindle.
⚡ Technical Overview
- Power Class: ~45 kW
- Input Voltage: Typically 200–240 VAC (machine dependent)
- Output: Very high current capacity for large spindle motors
- Interface: FANUC serial communication (FSSB)
- Cooling: Heavy-duty forced air cooling with heat sinks
🧩 Applications
Used in:
- Large CNC machining centers
- Heavy-duty milling and boring machines
- Large turning centers
- Industrial applications requiring continuous high power and torque
🔧 Internal Structure
Inside the amplifier:
- Power PCB (A16B-2203 series) → power conversion & distribution
- Control PCB (A20B-2100 series) → communication & control logic
- IGBT modules → high-power switching devices
- Cooling system → maintains safe operating temperature
⚠️ Typically serviced as a complete module, not board-level in field conditions.
🚨 Common Fault Symptoms
If this amplifier has issues, you may observe:
- Spindle not rotating
- Overcurrent / overload alarms
- SP / ALM spindle errors on CNC
- Sudden stop during heavy machining
- Drive alarm LEDs ON
📊 Position in FANUC Range
| Model | Power |
|---|---|
| H002 | 2.2 kW |
| H006 | 5.5 kW |
| H011 | 11 kW |
| H015 | 15 kW |
| H022 | 22 kW |
| H026 | 26 kW |
| H030 | 30 kW |
| H037 | 37 kW |
| H045 | 45 kW |
👉 H045 = one of the highest-capacity spindle amplifiers in the αi series
🔄 Variants
Common suffix versions:
- A06B-6111-H045#H550
- #H553 / #H570
These indicate minor firmware or interface variations.
✅ Summary
A06B-6111-H045
➡️ FANUC Alpha i SPM-45i spindle amplifier
➡️ Designed for ~45 kW spindle motors
➡️ Used in large, heavy-duty CNC machines with extreme cutting loads
