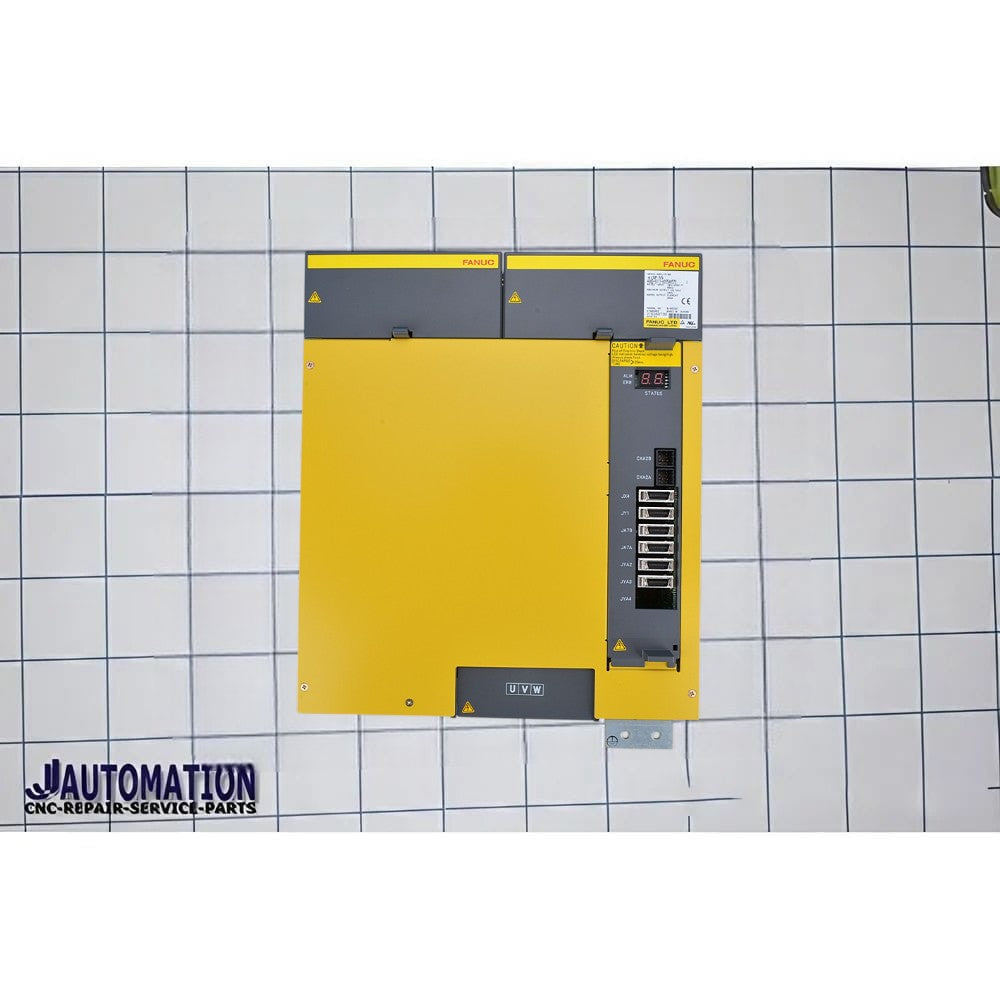

🔧 FANUC A06B-6111-H055 – Description
The A06B-6111-H055 is the highest-capacity spindle amplifier module in FANUC’s Alpha i (αiSP) series, designed for very large CNC spindle motors and extreme heavy-duty machining.
📌 Basic Identification
- Part Number: A06B-6111-H055
- Type: Spindle Amplifier / Spindle Drive
- Series: Alpha i (αiSP series)
- Model: SPM-55i (aiSP-55)
- Application: Ultra high-power spindle motor control
⚙️ Key Function
This module is the main power + control unit for the spindle, responsible for:
- 🌀 Spindle speed control (RPM)
- ⚡ Extremely high torque output
- 🔄 Smooth acceleration/deceleration
- 🎯 Closed-loop control using encoder feedback
👉 In simple terms:
It drives the spindle motor with maximum power and precision for heavy cutting operations.
⚡ Technical Overview
- Power Class: ~55 kW (largest in 200V Alpha i series)
- Input Voltage: Typically 200–240 VAC
- Output: Very high current capacity
- Interface: FANUC serial spindle interface (Type-A / FSSB)
- Cooling: Large heat sink + forced cooling system
📌 It is considered the largest spindle amplifier in the 200V Alpha i range
🧩 Applications
Used in:
- Large CNC machining centers
- Heavy-duty milling / boring machines
- Large turning centers
- Industrial systems requiring continuous high torque & power
🔧 Internal Construction
Typical internal components include:
- Power PCB (A16B-2203 series)
- Control PCB (A20B-2100 / A20B-2101 series)
- IGBT power modules (for high-power switching)
- Heavy-duty cooling system
⚠️ These are integrated — entire module is repaired or replaced, not individual boards.
🚨 Common Fault Symptoms
If this module fails, you may see:
- Spindle not rotating
- High-load trips / overload alarms
- SP / ALM spindle errors on CNC
- Sudden stop under heavy cutting
- No power or alarm LEDs on amplifier
🔄 Variants
Common versions:
- A06B-6111-H055#H550
- #H553 / #H570
➡️ These indicate software / revision differences, not major hardware changes
📊 Position in FANUC Range
| Model | Power |
|---|---|
| H002 | 2.2 kW |
| H006 | 5.5 kW |
| H011 | 11 kW |
| H015 | 15 kW |
| H022 | 22 kW |
| H026 | 26 kW |
| H030 | 30 kW |
| H037 | 37 kW |
| H045 | 45 kW |
| H055 | 55 kW (maximum) |
👉 H055 = top-end spindle amplifier in this series
🛠️ Service & Repair
- Repair possible within 24–72 hours in many cases
- Often sold via core exchange programs
- Designed for long-term industrial use with rebuild support
✅ Summary
A06B-6111-H055
➡️ FANUC Alpha i SPM-55i spindle amplifier
➡️ Designed for ~55 kW spindle motors
➡️ Used in very large, heavy-duty CNC machines
➡️ Highest power model in A06B-6111 series
