🔧 FANUC A06B-6141-C022 – Full Description

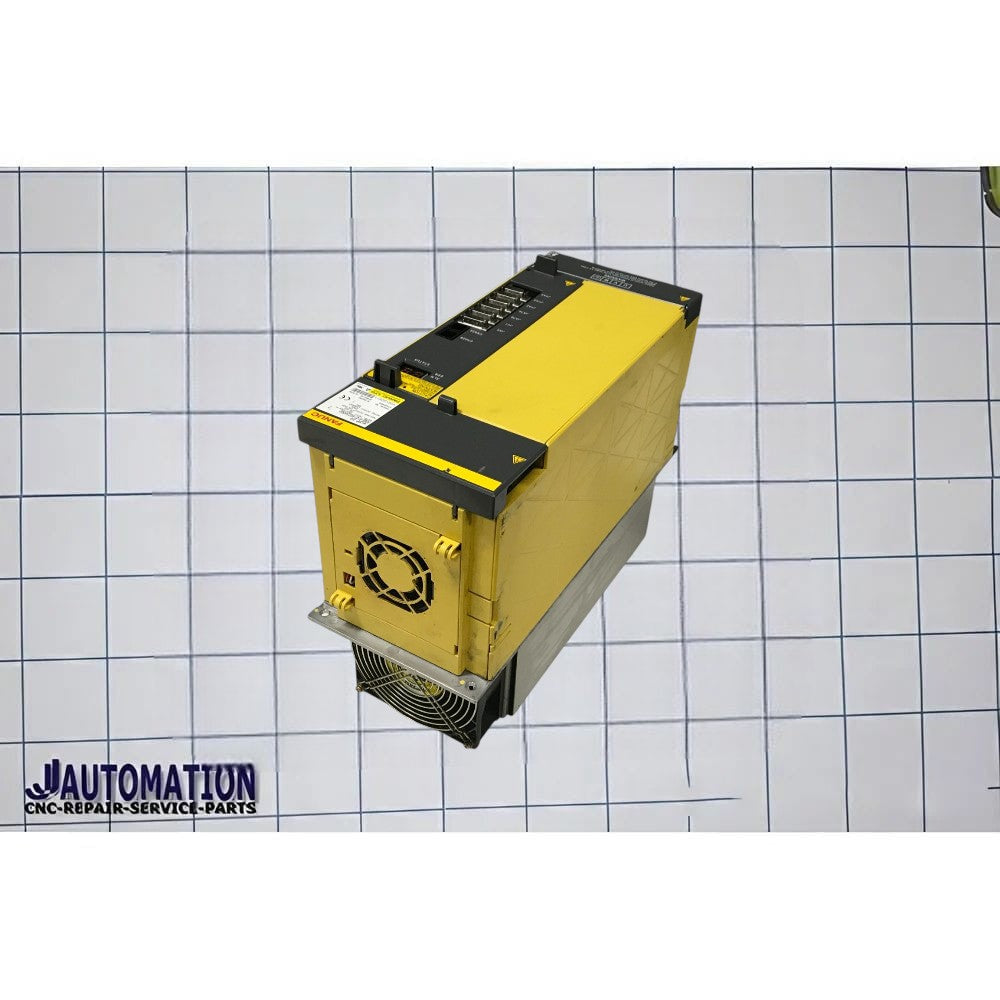

The A06B-6141-C022 is an ultra high-power servo amplifier module from FANUC’s Alpha i (αiSV) series, designed to drive very large servo motors in heavy-duty CNC machines and industrial automation systems. It represents the top tier of the 6141 C-series before the extreme class models.
📌 Basic Identification
- Part Number: A06B-6141-C022
- Type: Servo Amplifier / Servo Drive
- Series: A06B-6141 (αiSV series)
- Model Class: ~22 kW (high-power class)
- Application: CNC axis control for large and heavy axes
⚙️ Function
This module provides:
- 🌀 High-precision position, speed, and torque control
- ⚡ Very high torque output for heavy axis loads
- 🔄 Smooth acceleration and deceleration under extreme load
- 🎯 Closed-loop control via encoder feedback
In practical terms, it converts electrical power into precise, high-torque motion for large CNC axes.
⚡ Technical Overview
- Power Class: ~22 kW
- Input Supply: DC bus (~283–339V DC typical for FANUC αi systems)
- Output Voltage: Up to ~240 VAC to motor
- Cooling: Heavy-duty forced air
- Communication: FANUC serial servo interface (FSSB)
⚡ Features regenerative braking, feeding energy back into the supply during deceleration.
🧩 Key Features
- ⚙️ High-power, compact design for cabinet mounting
- 🔗 Fully compatible with FANUC CNC controllers
- 🎯 Stable performance under extreme axis loads
- 🔧 Supports repair, refurbishment, and exchange programs
- ⚡ Efficient and reliable for long-term heavy-duty operation
🧩 Applications
Used in:
- Large CNC machining centers
- Gantry/portal-type machines
- Heavy-duty milling, boring, or turning axes
- Large rotary tables or auxiliary high-load axes
Ideal for heavy-load axes requiring ~22 kW servo power.
🔧 Internal Construction
Typical components:
- Power PCB (A16B-2203 series)
- Control PCB (A20B series)
- High-current IGBT modules
- Forced-air cooling with heat sinks
⚠️ Typically serviced as a complete module, not at PCB level.
🚨 Common Fault Symptoms
- Axis not moving
- SERVO / SV / ALM alarms
- Overcurrent or overload trips
- Axis stops under heavy load
- Drive fault LED ON
📊 Position in FANUC Range (6141 C-Series)
| Model | Power |
|---|---|
| C002 | ~2.2 kW |
| C006 | ~5.5 kW |
| C011 | ~11 kW |
| C015 | ~15 kW |
| C022 | ~22 kW (ultra high-power) |
| C030 | Maximum class |
C022 = Ultra high-power module, suitable for the largest axes in medium-to-heavy CNC machines
🔄 Related Modules
- C015: Very high-power (~15 kW)
- C030: Extreme high-power (~30 kW)
Same αiSV series platform; differences are current handling, cooling, and torque capacity.
✅ Summary
A06B-6141-C022
➡️ FANUC Alpha i AiSV servo amplifier
➡️ Designed for ~22 kW servo motors
➡️ Used in ultra heavy-duty CNC axis applications
➡️ Compact, high-power, and fully compatible with FANUC CNC systems
