🔧 FANUC A06B-6141-H002 – Description

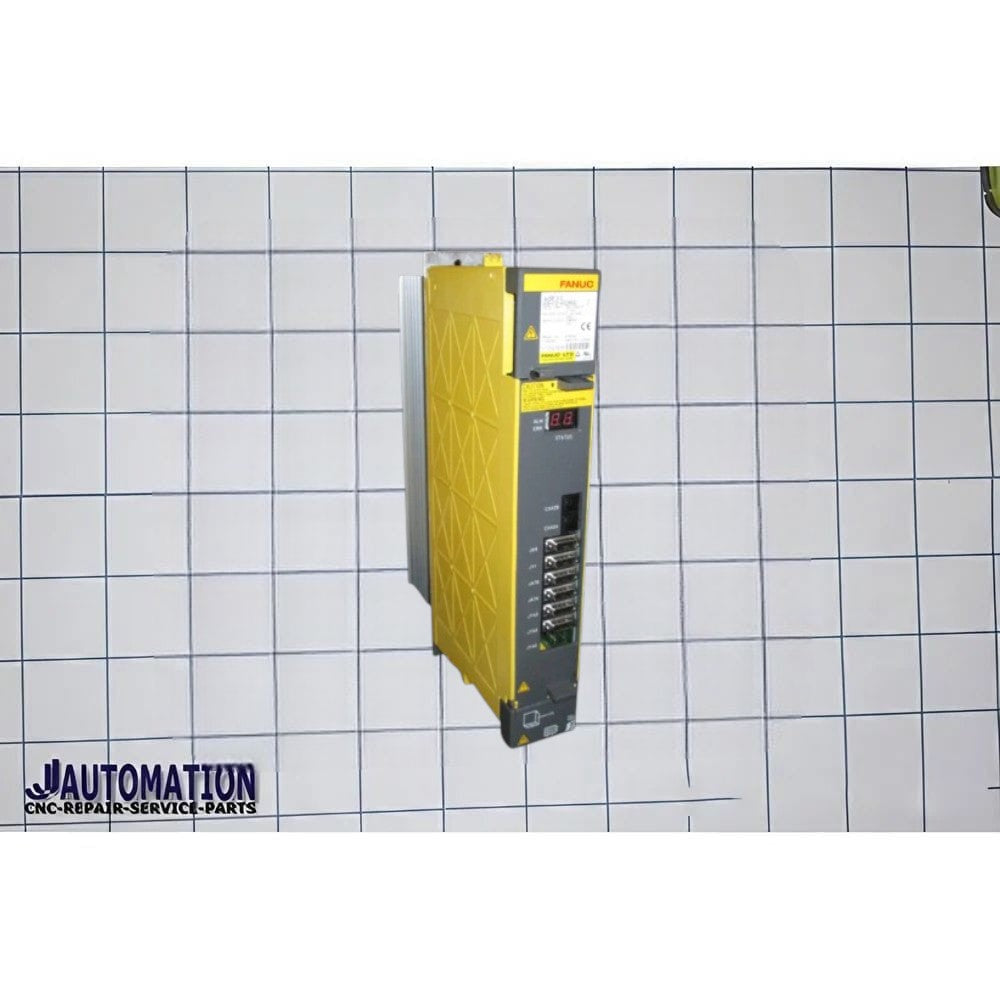

The A06B-6141-H002 is a spindle amplifier (spindle module) from FANUC’s Alpha i (αiSP) series, used to drive and control CNC spindle motors.
📌 Basic Identification
- Part Number: A06B-6141-H002
- Type: Spindle Amplifier / Spindle Module
- Series: A06B-6141 (αiSP series)
- Model: AiSP-2.2 (SPM-2.2i)
- Interface: Type-1 spindle interface
⚙️ Function
This module is responsible for spindle motor control, including:
- 🌀 Spindle speed (RPM) control
- ⚡ Torque generation for cutting operations
- 🔄 Acceleration & deceleration control
- 🎯 Closed-loop control using encoder feedback
👉 In simple terms:
It converts electrical power into controlled spindle rotation for machining.
⚡ Technical Specifications
- Power Class: ~2.2–2.7 kW
- Output Current: ~13 A
- Input: 200–240 VAC (typical)
- Interface Type: Alpha i Type-1 spindle system
🧩 What Makes It Different (6141 vs 6111 Series)
- A06B-6111 series → larger standalone spindle amplifiers
- A06B-6141 series → compact spindle modules (often used in modular drive systems)
👉 So this unit:
- Is smaller and lower power than models like H006, H011, etc.
- Often used in compact CNC machines or smaller spindles
🧩 Typical Applications
Used in:
- CNC machining centers
- Small to medium milling machines
- Compact CNC lathes
- Machines using αi spindle motors (Model 6 type commonly)
🔧 Internal Construction
Inside the module:
- Power PCB (A16B-2203 series)
- Control/interface PCB
- IGBT switching modules
- Cooling system (compact design)
🚨 Common Fault Symptoms
If faulty, you may see:
- Spindle not rotating
- Low power or weak torque
- SP / ALM spindle alarms
- Drive fault LEDs
- CNC showing spindle communication errors
🔄 Repair & Replacement
- Available as new / refurbished / exchange units
- Core exchange is commonly required
- Repair turnaround typically 3–5 days
📊 Position in FANUC Range
| Series | Example | Power |
|---|---|---|
| A06B-6141 | H002 | ~2.2 kW (compact module) |
| A06B-6111 | H006 | ~5.5 kW |
| A06B-6111 | H011+ | High power |
👉 H002 = small spindle module for lighter applications
✅ Summary
A06B-6141-H002
➡️ FANUC Alpha i AiSP-2.2 spindle amplifier module
➡️ Used for small/medium spindle motors (~2.2 kW)
➡️ Compact drive used in modular CNC systems
