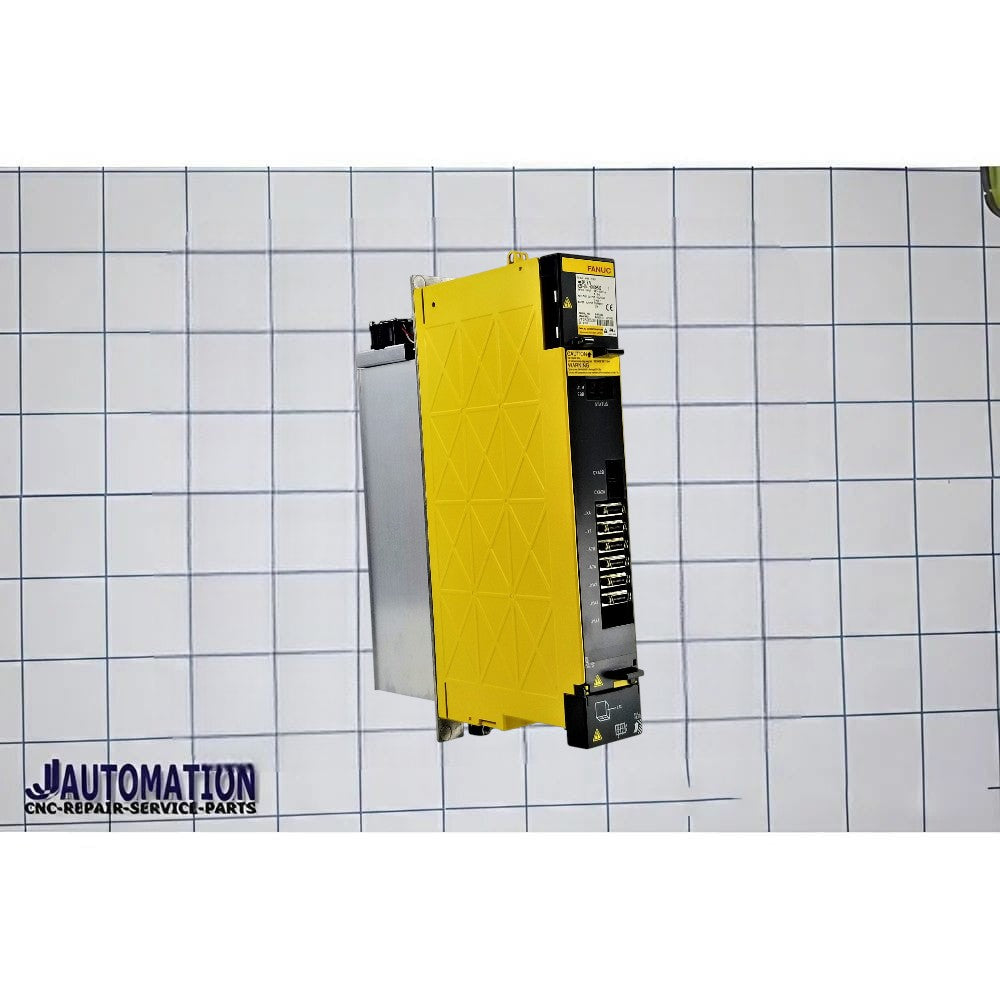

🔧 FANUC A06B-6141-H011 – Full Description
The A06B-6141-H011 is a high-power spindle amplifier module from FANUC’s Alpha i (αiSP) series, designed to control CNC spindle motors in medium-to-heavy duty machining applications.
📌 Basic Identification
- Part Number: A06B-6141-H011
- Type: Spindle Amplifier / Spindle Module
- Series: A06B-6141 (αiSP modular spindle drives)
- Model: AiSP-11 (SPM-11i)
- Interface: Type-1 spindle interface
⚙️ Function
This module acts as the drive unit for the spindle motor, providing:
- 🌀 Spindle speed (RPM) control
- ⚡ High torque output for machining operations
- 🔄 Acceleration & deceleration control
- 🎯 Closed-loop control using encoder feedback
👉 In simple terms:
It converts electrical power into precise, high-power spindle rotation.
⚡ Technical Specifications
- Power Class: ~11 kW
- Input Voltage: Typically 200–240 VAC
- Output Current: High current capacity (approx. 50–70 A range depending on variant)
- Cooling: Forced air cooling system
- Communication: FANUC serial spindle interface (FSSB)
🧩 Key Features
- ⚙️ Compact modular design (smaller than A06B-6111 series drives)
- 🔗 Fully compatible with FANUC CNC systems
- 🎯 Stable and precise spindle control
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- CNC machining centers
- CNC lathes / turning centers
- Milling machines
- Machines requiring medium-to-high spindle power (~11 kW)
🔧 Internal Construction
Inside the module:
- Power PCB (A16B-2203 series)
- Control PCB (A20B-2100 / A20B-2101 series)
- IGBT modules (power switching)
- Cooling system (fan + heat sink)
⚠️ Typically serviced as a complete unit, not individual PCBs in field repair.
🚨 Common Fault Symptoms
If this module fails, you may encounter:
- Spindle not rotating
- SP / ALM spindle alarms
- Unstable spindle speed
- Overcurrent or overload trips
- Drive fault LEDs on module
📊 Position in FANUC Range (6141 Series)
| Model | Power |
|---|---|
| H002 | ~2.2 kW |
| H006 | ~5.5 kW |
| H011 | ~11 kW |
| H015+ | Higher capacity |
👉 H011 = high-power module in compact 6141 series
🔄 Variants
Common suffix versions:
- A06B-6141-H011#H580
- Other minor revision variants
➡️ These indicate software/interface differences, not major hardware changes.
✅ Summary
A06B-6141-H011
➡️ FANUC Alpha i AiSP-11 spindle amplifier module
➡️ Designed for ~11 kW spindle motors
➡️ Compact, high-power drive for CNC spindle control
