🔧 FANUC A06B-6141-H015 – Full Description

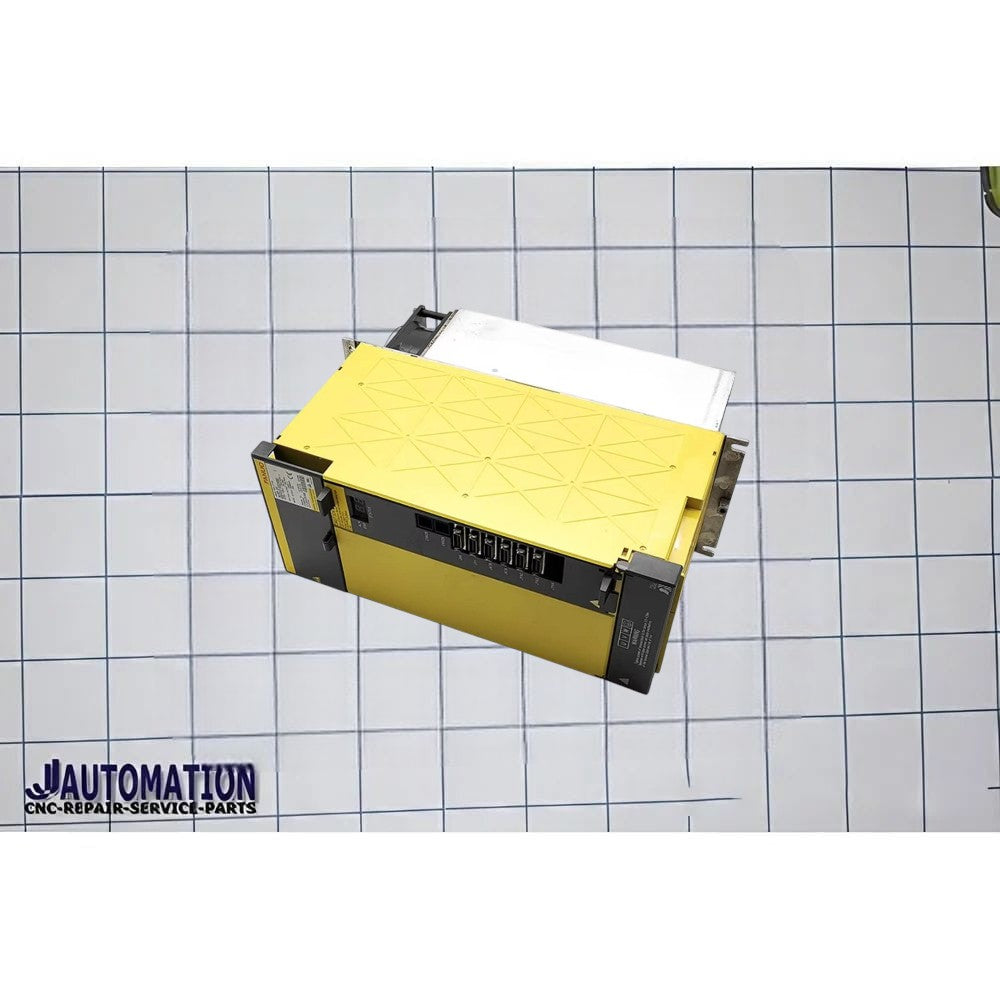

The A06B-6141-H015 is a high-power spindle amplifier module from FANUC’s Alpha i (αiSP) series, designed for controlling CNC spindle motors in heavy-duty machining applications.
📌 Basic Identification
- Part Number: A06B-6141-H015
- Type: Spindle Amplifier / Spindle Module
- Series: A06B-6141 (αiSP modular spindle drives)
- Model: AiSP-15 (SPM-15i)
- Interface: Type-1 spindle interface
⚙️ Function
This module acts as the power and control unit for the spindle motor, performing:
- 🌀 Spindle speed (RPM) control
- ⚡ High torque output for cutting operations
- 🔄 Acceleration & deceleration control
- 🎯 Closed-loop feedback control (encoder-based)
👉 In simple terms:
It converts electrical input into precise, high-power spindle rotation.
⚡ Technical Specifications
- Power Class: ~15 kW
- Input Voltage: Typically 200–240 VAC
- Output Current: High current capacity for larger spindle motors
- Cooling: Forced air cooling system
- Communication: FANUC serial spindle interface (FSSB)
🧩 Key Features
- ⚙️ Compact modular design (smaller than A06B-6111 series)
- 🔗 Fully compatible with FANUC CNC systems
- 🎯 Stable and accurate spindle control
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- CNC machining centers
- CNC lathes
- Milling machines
- Machines requiring medium-to-high spindle power (~15 kW)
🔧 Internal Construction
Inside the module:
- Power PCB (A16B-2203 series)
- Control PCB (A20B-2100 / A20B-2101 series)
- IGBT modules for high-power switching
- Cooling system (fan + heat sink)
⚠️ Typically serviced as a complete module, not individual boards in field repair.
🚨 Common Fault Symptoms
If faulty, typical issues include:
- Spindle not rotating
- SP / ALM spindle alarms
- Overcurrent or overload trips
- Unstable spindle speed
- Drive fault LED indications
📊 Position in FANUC Range (6141 Series)
| Model | Power |
|---|---|
| H002 | ~2.2 kW |
| H006 | ~5.5 kW |
| H011 | ~11 kW |
| H015 | ~15 kW |
| H022+ | Higher capacity modules |
👉 H015 = upper mid/high power module in 6141 series
🔄 Variants
Common suffix:
- A06B-6141-H015#H580
➡️ Indicates minor firmware/interface differences.
✅ Summary
A06B-6141-H015
➡️ FANUC Alpha i AiSP-15 spindle amplifier module
➡️ Designed for ~15 kW spindle motors
➡️ Compact, high-power solution for CNC spindle control
