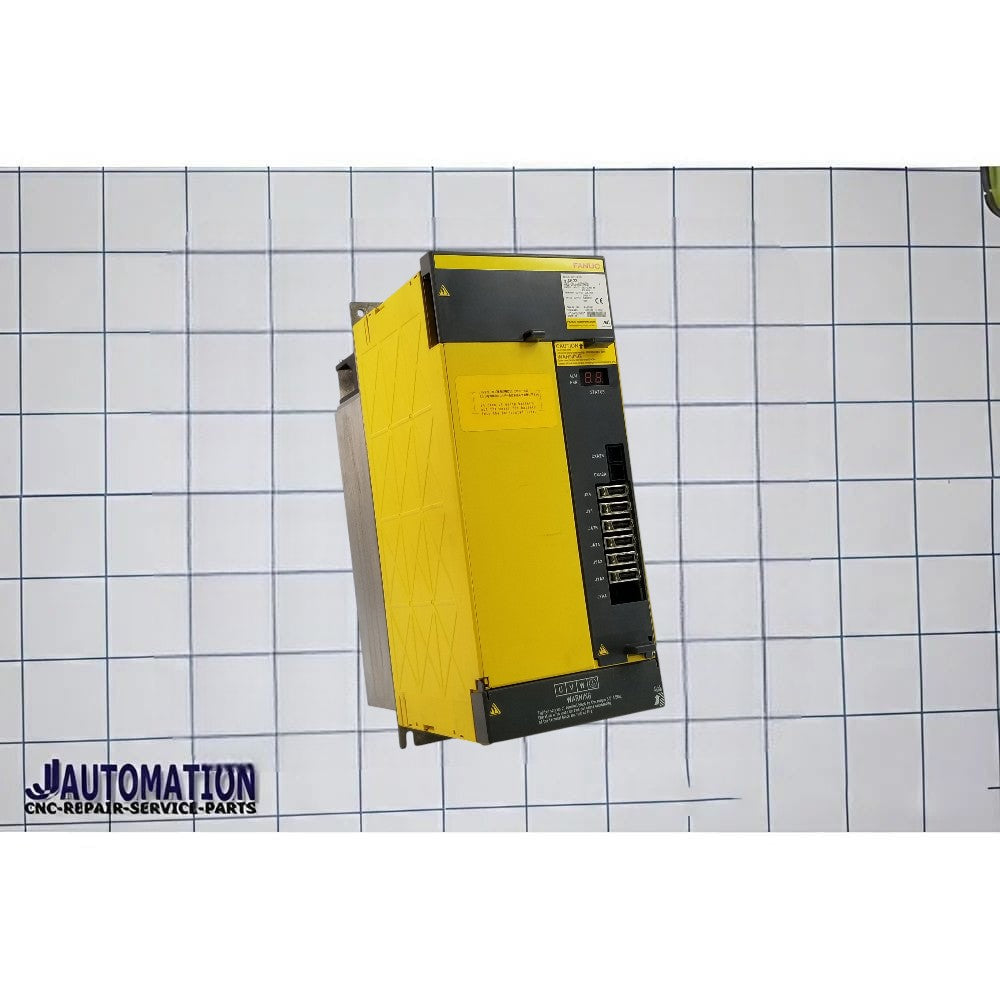

🔧 FANUC A06B-6141-H022 – Full Description
The A06B-6141-H022 is a very high-power spindle amplifier module from FANUC’s Alpha i (αiSP) series, designed to control large CNC spindle motors in heavy-duty machining applications.
📌 Basic Identification
- Part Number: A06B-6141-H022
- Type: Spindle Amplifier / Spindle Module
- Series: A06B-6141 (αiSP modular spindle drives)
- Model: AiSP-22 (SPM-22i)
- Interface: Type-1 spindle interface
⚙️ Function
This module serves as the power and control unit for the spindle motor, providing:
- 🌀 Precise spindle speed (RPM) control
- ⚡ High torque output for heavy cutting operations
- 🔄 Acceleration & deceleration management
- 🎯 Closed-loop feedback control using encoder signals
👉 In simple terms:
It converts electrical energy into high-power, controlled spindle rotation.
⚡ Technical Specifications
- Power Class: ~22 kW
- Input Voltage: Typically 200–240 VAC
- Output Current: Very high current capacity
- Cooling: Forced air cooling system
- Communication: FANUC serial spindle interface (FSSB)
🧩 Key Features
- ⚙️ Compact modular design (compared to A06B-6111 series)
- 🔗 Seamless integration with FANUC CNC systems
- 🎯 Stable, high-performance spindle control
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- CNC machining centers
- Heavy-duty CNC lathes
- Milling and boring machines
- Applications requiring high torque and continuous power (~22 kW)
🔧 Internal Construction
Inside the module:
- Power PCB (A16B-2203 series)
- Control PCB (A20B-2100 / A20B-2101 series)
- IGBT modules for high-power switching
- Cooling system (fan + heat sink)
⚠️ Typically serviced as a complete module, not individual PCB replacement in the field.
🚨 Common Fault Symptoms
If this module is faulty, you may observe:
- Spindle not rotating
- SP / ALM spindle alarms
- Overload or overcurrent trips
- Unstable or fluctuating spindle speed
- Drive fault LED indications
📊 Position in FANUC Range (6141 Series)
| Model | Power |
|---|---|
| H002 | ~2.2 kW |
| H006 | ~5.5 kW |
| H011 | ~11 kW |
| H015 | ~15 kW |
| H022 | ~22 kW |
👉 H022 = high-capacity module for heavy machining loads
🔄 Variants
Common version:
- A06B-6141-H022#H580
➡️ Indicates firmware/interface variations, not major hardware differences.
✅ Summary
A06B-6141-H022
➡️ FANUC Alpha i AiSP-22 spindle amplifier module
➡️ Designed for ~22 kW spindle motors
➡️ Compact but powerful solution for heavy-duty CNC spindle control
