Description

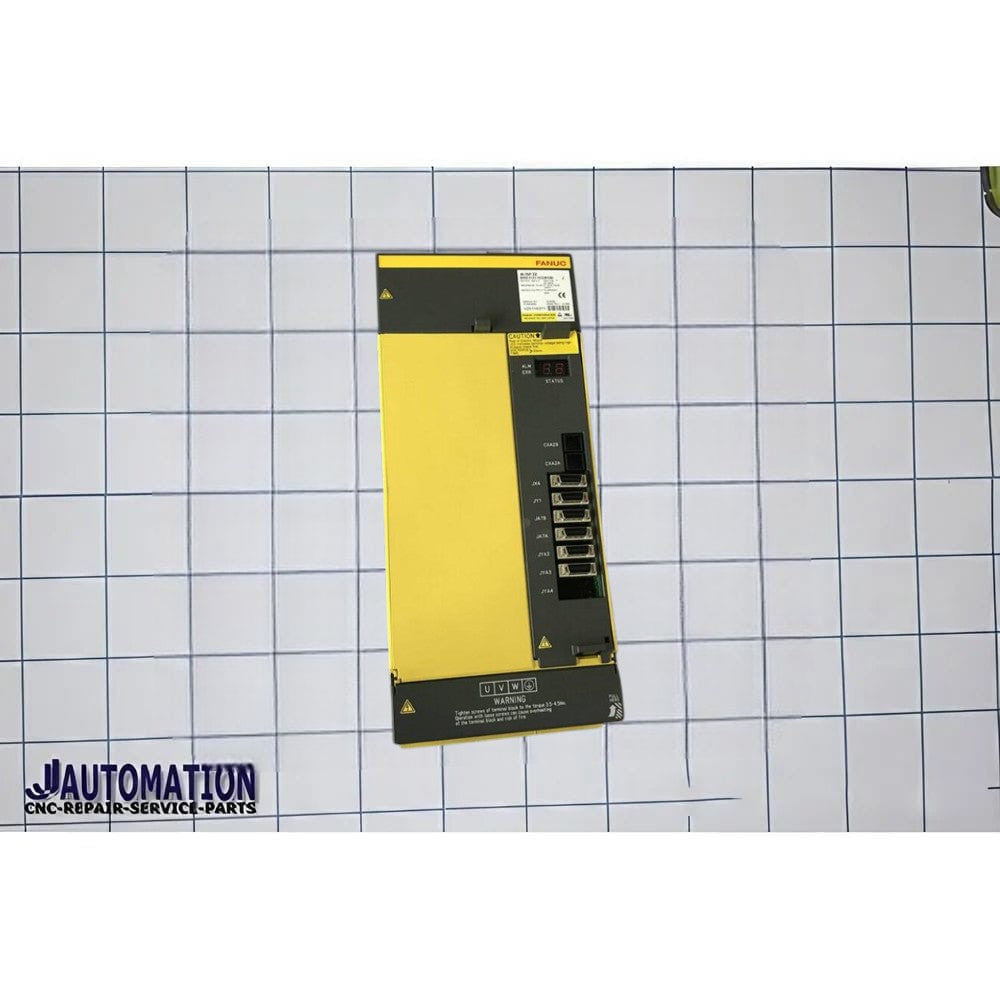

🔧 FANUC A06B-6141-H045 – Full Description
The A06B-6141-H045 is a very high-power spindle amplifier module from FANUC’s Alpha i (αiSP) series, designed to drive large CNC spindle motors in demanding, heavy-duty machining operations.
📌 Basic Identification
- Part Number: A06B-6141-H045
- Type: Spindle Amplifier / Spindle Module
- Series: A06B-6141 (αiSP modular spindle drives)
- Model: AiSP-45 (SPM-45i)
- Interface: Type-1 spindle interface
⚙️ Function
The module acts as the primary control and power unit for spindle motors, providing:
- 🌀 Precise spindle speed (RPM) control
- ⚡ High torque output for heavy cutting operations
- 🔄 Smooth acceleration & deceleration
- 🎯 Closed-loop feedback control via encoder
Converts electrical input into high-power, controlled spindle rotation.
⚡ Technical Specifications
- Power Class: ~45 kW
- Input Voltage: 200–240 VAC
- Output Current: Very high current capacity for large spindle motors
- Cooling: Forced air cooling system
- Communication: FANUC serial spindle interface (FSSB)
🧩 Key Features
- ⚙️ Compact modular design relative to A06B-6111 series
- 🔗 Fully compatible with FANUC CNC systems
- 🎯 Stable, precise spindle control even under heavy load
- 🔧 Supports repair, refurbishment, and exchange programs
🧩 Applications
Used in:
- CNC machining centers
- Heavy-duty milling, boring, and turning machines
- Industrial applications requiring continuous high torque and ~45 kW spindle power
🔧 Internal Construction
Inside the module:
- Power PCB (A16B-2203 series)
- Control PCB (A20B-2100 / A20B-2101 series)
- IGBT modules for high-current switching
- Cooling system (fan + heat sink)
⚠️ Typically serviced as a complete module, not as individual PCBs.
🚨 Common Fault Symptoms
Symptoms of a faulty H045:
- Spindle does not rotate
- SP / ALM spindle alarms on CNC
- Overcurrent or overload trips
- Sudden stops during heavy cutting
- Drive fault LED indications
📊 Position in FANUC Range (6141 Series)
| Model | Power |
|---|---|
| H002 | ~2.2 kW |
| H006 | ~5.5 kW |
| H011 | ~11 kW |
| H015 | ~15 kW |
| H022 | ~22 kW |
| H026 | ~26 kW |
| H030 | ~30 kW |
| H037 | ~37 kW |
| H045 | ~45 kW |
H045 = one of the highest power modules in the 6141 compact series
🔄 Variants
Common version:
- A06B-6141-H045#H580 – minor firmware/interface differences
✅ Summary
A06B-6141-H045
➡️ FANUC Alpha i AiSP-45 spindle amplifier module
➡️ Designed for ~45 kW spindle motors
➡️ Compact, high-power module for heavy-duty CNC spindle control
