Description

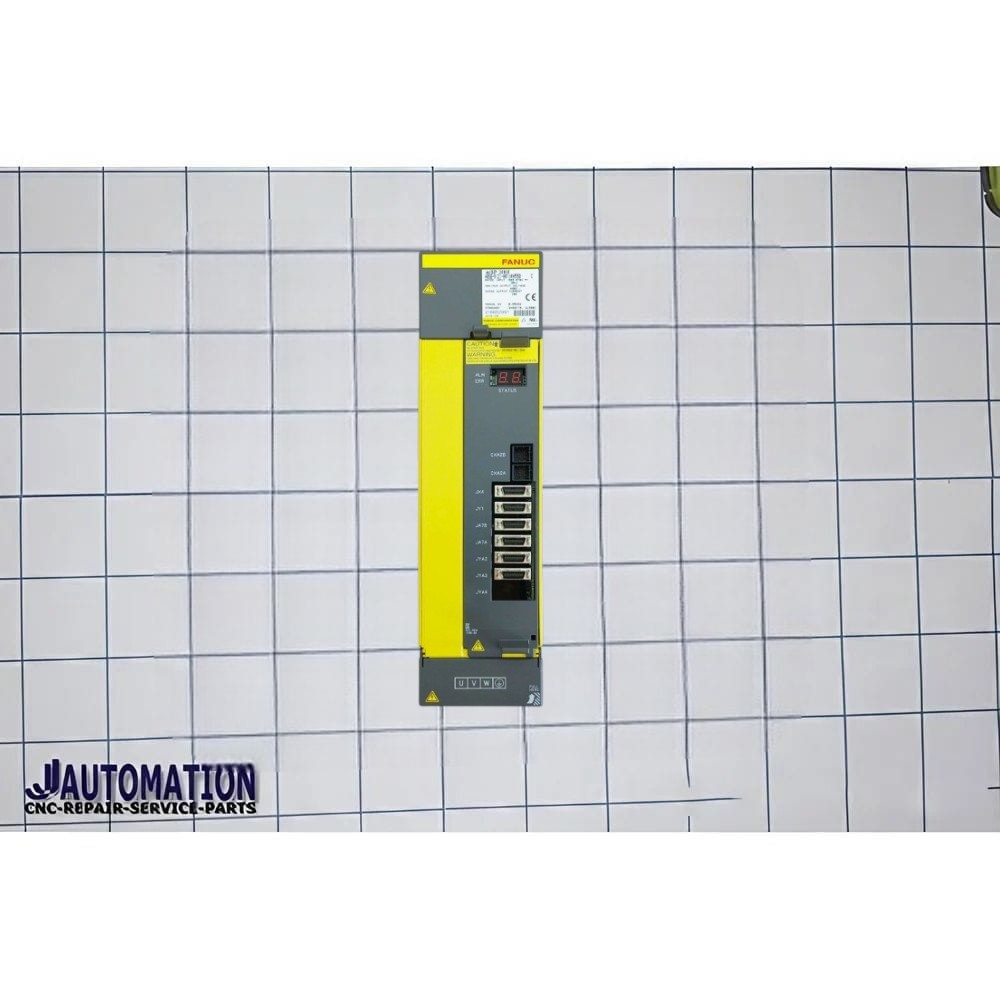

A06B-6121-H011 is a Fanuc Corporation Alpha series servo amplifier module, used in CNC machine tool drive systems.
🔧 A06B-6121-H011 – Description
- Type: Servo amplifier (Alpha series, compact/single-axis type)
- Function: Drives one CNC servo motor (axis control)
- Role: Axis drive module in CNC systems
⚙️ What it does
This module:
- Converts DC bus power into controlled 3-phase output for a servo motor
- Controls position, speed, and torque with high precision
- Typically operates as a single-axis amplifier module
- Includes protection features (overcurrent, overheating, short circuit)
🧩 Model breakdown
- A06B → Fanuc servo/drive family
- 6121 → Alpha compact/single-axis amplifier series
- H011 → Specific configuration (higher capacity than H006)
🔁 Position in 6121 series
Typical progression:
- H002 → small axis
- H006 → medium axis
- H011 → medium–high axis load capacity
🆚 6121 vs other Fanuc series
- 6121 series → Compact, single-axis modules
- 6112 series → Older multi-axis Alpha amplifiers
- 6142 series → Newer Alpha i series (advanced diagnostics + faster comms)
🏭 Typical applications
- CNC machining centers
- CNC lathes
- Machines requiring modular single-axis drives
- Retrofit CNC systems
